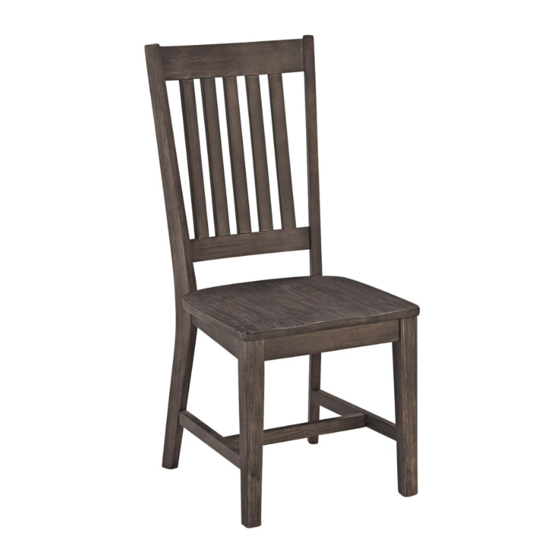

Side chair

Advertisement

Quick Links

88 5134 80
Side Chair
IMPORTANT NOTE
.
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damage occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure
a completed product as it was designed.
Part List
A.
Seat
1 Pc.
B.
Leg
1 Pc.
Hardware List
Hex Wrench
1 pc.
Small
Hex Wrench
1 pc.
Tools required for assembly : Phillips screwdriver
Home Styles Consumer Assistance : www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
D.
Stretcher
1 Pc.
C.
Leg
1 Pc.
M3.5x40
Wood Screw
6 pcs.(+1 extra)
M6x
85
Head Cap Bolt
(long)
4 pcs.(+1 extra)
E.
Stretcher
1 Pc.
F.
Stretcher
1 Pc.
M6x
35
Head Cap Bolt
(short)
1 pc.(+1 extra)
M6x50
Head Cap Bolt
(middle)
4 pcs.(+1 extra)
G.
Back Frame
1 Pc.
Flat Washer
9 pcs.(+1 extra)
Spring Washer
9 pcs.(+1 extra)

Advertisement

loading
Need help?

Need help?

Do you have a question about the Concrete Chic 88 5134 80 and is the answer not in the manual?

Questions and answers

Summary of Contents for Home Styles Concrete Chic 88 5134 80

  • Page 1 Spring Washer Small Head Cap Bolt Head Cap Bolt 9 pcs.(+1 extra) (middle) (long) Hex Wrench 4 pcs.(+1 extra) 4 pcs.(+1 extra) 1 pc. Tools required for assembly : Phillips screwdriver Home Styles Consumer Assistance : www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
  • Page 2 Assembly Instructions 2/2 IMPORTANT * Please keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. Wood Screw * Do not tighten up all the bolts until each part is properly assembled. * Use a soft cloth between these parts and the floor.
