IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Cushion
1 pc.
B.
Top
1 pc.
F.
Base
1 pc.
G.
Back Panel
1 pc.
Hardware List
Hex Wrench
1 pc.
Small Hex Wrench
Magnet
1 pc.
2 pcs.
Tool(s) required for assembly: Phillips screwdriver, Level
home
518 26
2-

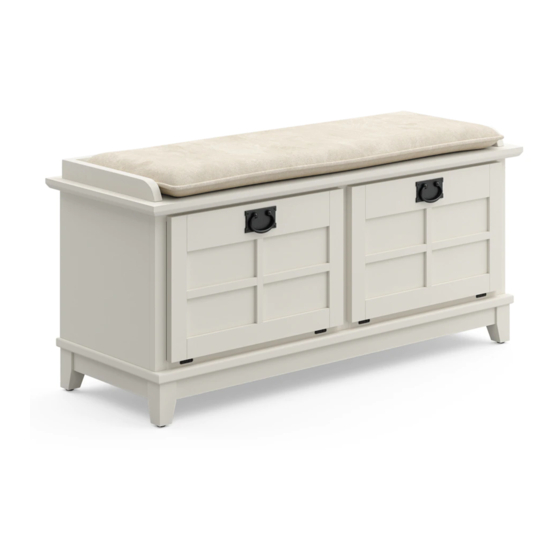

Upholstered Bench
M6x50
Head Cap Bolt
Spring Washer
8 pcs. (+1 extra)
8 pcs. (+1 extra)
M3x15
Wood Screw
4 pcs. (+1 extra)
styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
C.
Side Panel
1 pc.
J.
Door
1 pc.
Flat Washer
8 pcs. (+1 extra)
M3x19
M3x12
Wood Screw (long)
Wood Screw (short)
8 pcs. (+1 extra)
8 pcs. (+1 extra)
D.
Side Panel
1 pc.
H.
Foot
4 pcs.
Machine Screw
4 pcs.
Handle
2 pcs.
888-680-7460
E.
Middle Panel
1 pc.
I.
Foot
1 pc.
K.
Door
1 pc.
1 Left Hinge
1 Right Hinge
2 pcs.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Styles 5182-26
Summary of Contents for Home Styles 5182-26
- Page 1 518 26 Upholstered Bench IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed. Do not use power tools above 8 volts to assemble.
- Page 2 Assembly Instructions 2/5 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 3 Assembly Instructions 3/5 Head Cap Bolt Spring Washer Flat Washer STEP 3 Place unit upside down on a soft cloth. Attach Feet (H) to unit with Flat Washers, Spring Washers and Head Cap Bolts. (See Figure 3) Attach Foot (I) to unit. (See Figure 4) Figure 3 Figure 4...
- Page 4 Assembly Instructions 4/5 Machine Screw Lock Handle Wood Screw (long) STEP 5 Turn unit from Step 3 over to its upright position. Attach Top (B) to unit, then flip Locks. Attach Doors (J) and (K) to unit by inserting door hinges into slots in unit and attach with Wood Screws (long).
- Page 5 Assembly Instructions / 5 5 Left Hinge Wood Screw (short) Right Hinge STEP 6 Attach Left Hinge and Right Hinge to unit with Wood Screws (short) into pre-drilled holes. (See Figures 8 and 9) Level unit by adjusting the adjustable levelers on bottom of unit. (See Figure 10) Place Cushion (A) into position.
- Page 6 Digital images of the defective parts may be required. If the product was not purchased from an authorized retailer, home styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged parts may be requested via contact info below.
