IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
D.
Shelf
2 pcs.
E.
Rail
2 pcs.
J.
Middle Panel
1 pc.
K.
Base
1 pc.
Hardware List
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
Carton 20 05102 0691 is also needed for assembly.
Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8" Drill Bit
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05102 0692

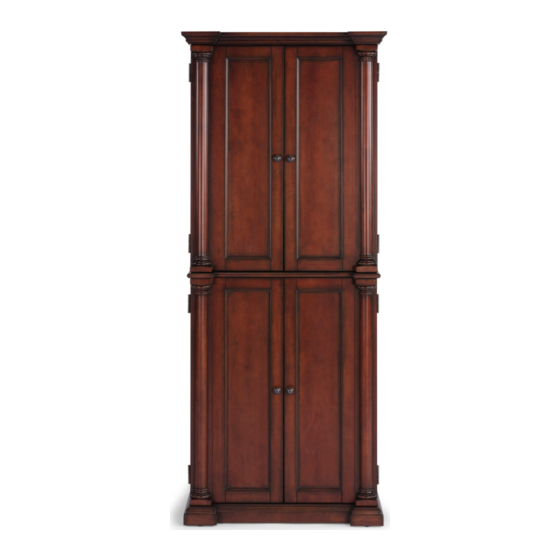

Pantry
F.
Upright
1 pc.
G.
Back Panel
2 pcs.
Cam Lock Screw
24 pcs. (+1 extra)
Cam Lock
24 pcs. (+4 extra)
B.
Side Panel
1 pc.
H.
Door
1 pc.
Adjustable Pin
16 pcs. (+1 extra)
M3.5 x 16
Wood Screw
16 pcs. (+1 extra)
888-680-7460, 877-831-0319
C.
Side Panel
1 pc.
I.
Door
1 pc.
Knob
4 pcs.
M4x25
Machine Screw
4 pcs.
Advertisement
Related Manuals for Home Styles 20 05102 0692
Summary of Contents for Home Styles 20 05102 0692
- Page 1 24 pcs. (+4 extra) 16 pcs. (+1 extra) 4 pcs. Carton 20 05102 0691 is also needed for assembly. Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8” Drill Bit Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/8 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Make sure unit is level before tightening these screws. Ÿ The unit must be level to work properly. Use the included adjustable levelers to level. Ÿ...
- Page 3 Assembly Instructions 3/8 STEP 2 Attach Rail (E) to Side Panel (C) with Cam Lock. (See Figure 2) Attach Upright (F) to unit. Slide Back Panels (G) into position. Attach Rail (E) to unit with Cam Lock. Cam Lock Figure 2 STEP 3 Attach Side Panel (B) to unit with Cam Locks.
- Page 4 Assembly Instructions 4/8 STEP 4 Attach unit to Base (K) with Cam Locks. Attach Middle Panel (J) to unit with Cam Locks. Cam Lock Adjustable Pin Knob STEP 5 Insert Adjustable Pins into side panels at desired level. Place Shelves (D) into position. Attach Doors (H) and (I) to unit by sliding door hinges into side panel hinges.
- Page 5 Assembly Instructions 5/8 STEP 6 Attach Rail (E) to Side Panel (C) with Cam Lock. Attach Upright (F) to unit. Slide Back Panels (G) into position. Attach Rail (E) to unit with Cam Lock. Cam Lock STEP 7 Attach Side Panel (B) to unit with Cam Locks.
- Page 6 Assembly Instructions 6/8 STEP 8 Attach unit from Step 7 to unit from Step 5 with Cam Locks. Cam Lock Adjustable Pin Knob STEP 9 Insert Adjustable Pins into side panels at desired level. Place Shelves (D) into position. Attach Doors (H) and (I) to unit by sliding door hinges into side panel hinges.
- Page 7 Assembly Instructions 7/8 Cam Lock STEP 10 Attach Top (A) to unit with Cam Locks. STEP 11 Wood Screw Level unit by adjusting the adjustable levelers on bottom of unit. (See Figure 5) Insert Wood Screws into pre-drilled holes in unit, then tighten. Note: Unit must be level before tighten these screws.
-
Page 8: Hardware List
Assembly Instructions 8/8 IMPORTANT Ÿ To help reduce the risk of the unit tipping over, the Tip-over Restraint must be installed following these instructions exactly. STEP 12 Anchor in wall Wall Screw Pre-drilled hole Bracket Place unit at desired location. on wall at top of unit 3/8”... - Page 9 Buff with a dry clean cloth. Home Styles will provide replacements free of charge for missing or damaged hardware or parts within 30 days of purchase. Digital images of the defective parts may be required. If the product was not purchased from an authorized retail affiliate, Home Styles is under no obligation to provide replacement parts.
