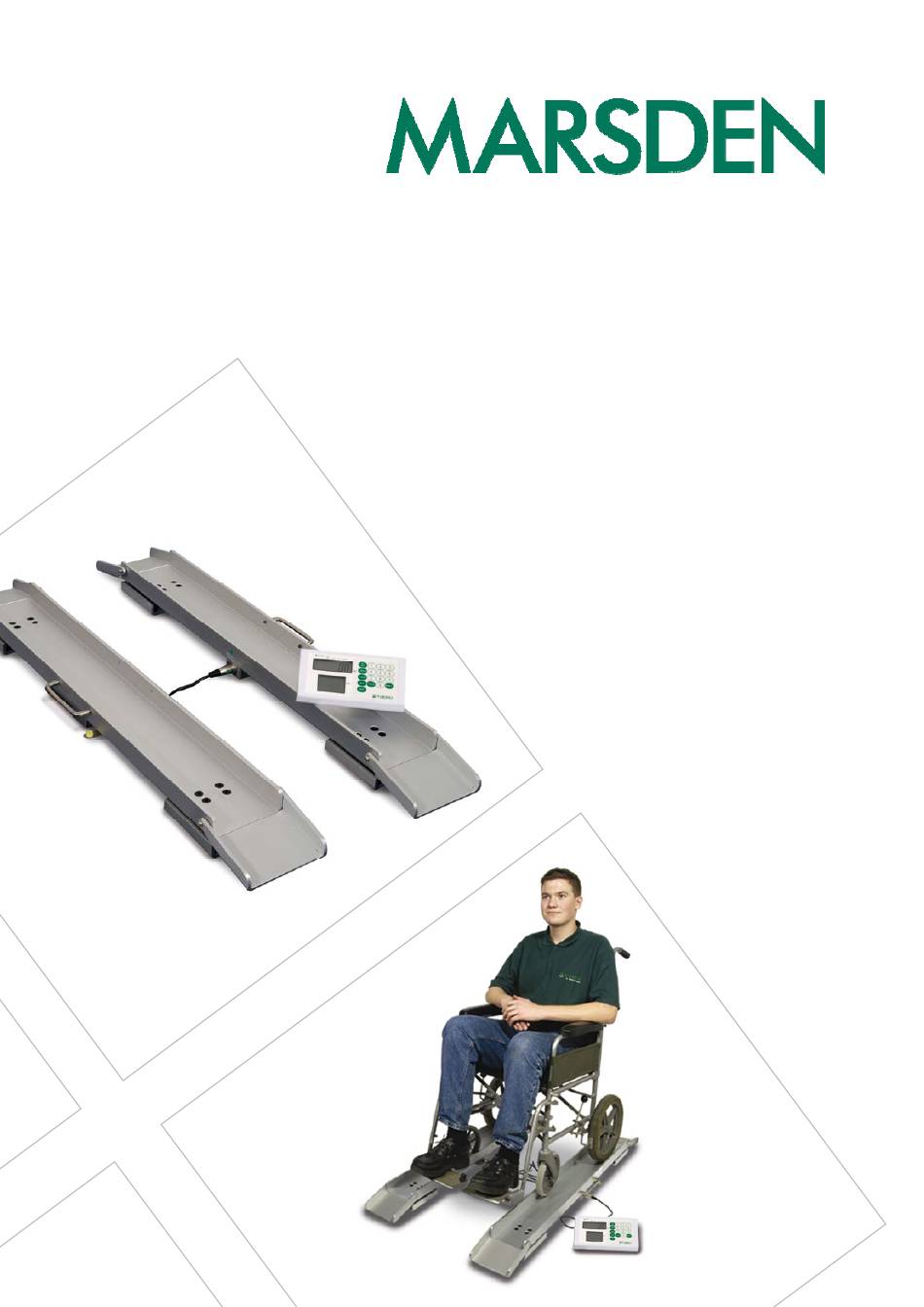

- Page 1 USER MANUAL M-610 Please take time to read these instructions before starting to use the scale Version 1.1 09/17...
-
Page 2: Table Of Contents
Contents Introduction Product Specification Safety Instructions Explanation of Graphic Symbols Power Supply and Low Battery Operation: Basic Functions Operation: Advanced Functions Using the Scale with a Printer Using the Scale with Bluetooth EMC Guidance and Manufacturer’s Declaration Error Messages Manufacturer’s Declaration of Conformity Page 2... -
Page 3: Introduction
Thank you for purchasing a Marsden professional medical scale. This is a precision Class III Weighing Instrument and considerate use will result in many years of accurate weighing. The scale has a maximum load capacity of 300kg which must not be exceeded. -
Page 4: Safety Instructions
Safety Instructions Before putting the device into use, please read with care the information given in this user manual, which contains important instructions for proper installation, use and maintenance of the device. Marsden/the manufacturer shall not be liable for damages arising from failure to heed the following instructions: ... -
Page 5: Explanation Of Graphic Symbols
“Please note the accompanying documents” or “Observe operating instructions” Identification of manufacturer of medical product including address. Charder Electronic Co. Ltd No.103 Guozhong Rd, Dali Dist, Taichung City 412, Taiwan (R.O.C) Type B applied part Dispose of old appliances separately from your household waste. -
Page 6: Power Supply And Low Battery
Power Supply & Low Battery The indicator uses a rechargeable battery pack, or can be powered from the mains via the AC adaptor. Make sure the battery pack is installed in the battery box of the indicator. Alternatively, plug the AC adaptor (12V 1A) into the port on the side of the indicator. -
Page 7: Operation: Basic Functions
Operation: Basic Functions Switching on the Scale Press the ON/OFF button firmly. The scale will first test all of the display segments. The scale will now show its current software version number. The scale will now go into weighing mode and should show 0.0kg on the display. - Page 8 Switching off the Scale Press the ON/OFF button when the scale is turned on. The scale will now power down. Setting the Scale to Zero If for any reason the scale shows a reading other than 0.0kg it can be reset to zero. Press the ZERO key once.
-
Page 9: Operation: Advanced Functions
Operation: Advanced Functions Hold Function Press the HOLD button once. Allow the patient to be wheeled onto the scale. After a few seconds the scale will lock on the person’s weight. When the patient leaves the scale, the weight will remain on the display. - Page 10 Body Mass Index (BMI) Function In normal mode, press the BMI key to enter into BMI mode. The display will show the last height entered and the extreme left digit will flash. Enter the height by using the numeric keys. Press the ZERO key to confirm the height.
- Page 11 Tare and Pre-Set Tare Functions Press the TARE key for three seconds to enter Preset Tare setting mode. The display will show the last preset tare entered and the extreme left digit will flash. Enter the preset tare value by using the numeric keys, then press the TARE key again to confirm the value.
- Page 12 Setting the Date Press the HOLD key for three seconds to access the time setting mode. The time period digit that is flashing can be changed by entering the appropriate number from the numeric key pad. The time period to be edited is selected by pressing the HOLD key. E.g.
-
Page 13: Using The Scale With A Printer
Using the Scale with a Printer An optional Marsden external thermal printer (Model TP-2100) is available for all models. When the printer is fitted, the patient’s weight, height, and BMI result can be printed. Once the person has been weighed and their BMI calculated, simply press the PRINT key to produce the following ticket: GROSS WEIGHT 60.00kg... -
Page 14: Using The Scale With Bluetooth
Using the Scale with Bluetooth If your scale has Bluetooth connectivity, the universal Bluetooth symbol will be on the main indicator display. Bluetooth Connection Long press the ZERO key for three seconds to enter the Setting mode and then display the A-OFF menu. Press the TARE key twice, and then press HOLD once to enter the Bluetooth setting mode. -
Page 15: Emc Guidance And Manufacturer's Declaration
EMC Guidance and Manufacturer’s Declaration Guidance and manufacturer’s declaration – electromagnet emissions. The M-610 is intended for use in the electromagnetic environment specified below. The customer or user of this scale should ensure that it is used in such environment. Emission Test Compliance Electromagnetic environment-... - Page 16 supply input lines IEC UT (30% dip in UT) for 25 (30% dip in UT) for 25 environment. If the user of 61000-4-11 cycles <5% UT (>95% dip cycles <5% UT (>95% dip this scale requires in UT) for 5s in UT) for 5s continued operation during power mains...
- Page 17 the following symbol: Radiated RF 3 V/m 80 MHz to 2,5 3 V/m IEC 61000-4-3 NOTE1 At 80 MHz and 800 MHz, the higher frequency range applies. NOTE2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
-
Page 18: Error Messages
Error Messages Low Battery The scale’s alkaline AA type batteries are flat; please replace the batteries. Overload This indicates that the scale’s load sensor(s) have been overloaded. Reduce the loading and retry. Counting Error 1. The signal from the load cells is too high. - Page 23 Medical Device Directive 2014/31/EU Non-automatic Weighing Instruments Directive Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City 412, Taiwan (R.O.C.) Page 19...
- Page 24 Tel: 01709 364296 / 0800 169 2775 Fax: 01709 364293 E-mail: sales@marsdengroup.co.uk Manufacturing and Distribution: Unit 7, Centurion Business Park, Coggin Mill Way, Rotherham, S60 1FB Head Office: Unit 1, Genesis Business Park, Sheffield Road, Rotherham S60 1DX www.marsden-weighing.co.uk IN-1249[14080F] REV 10/2017...
