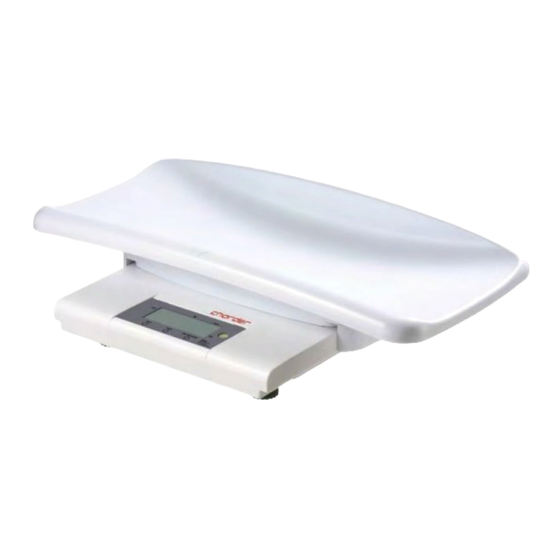

- Page 1 USER MANUAL MS4200 Infant Scale Please keep the instruction manual at hand all the time for future reference.
- Page 2 Explanation of Graphic Symbols on Label/Packaging Caution, consult Separate collection for accompanying documents waste of electrical and before use electronic equipment, in accordance with Directive 2002/96/EC Manufacturer of medical Manufacturing year of device medical device Carefully read user manual Medical electrical before installation and equipment with Type B usage, and follow...
- Page 3 Copyright© Charder Electronic Co., Ltd. All rights reserved. This user manual is protected by international copyright law. All content is licensed, and usage is subject to written authorization from Charder Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any damage caused by a failure to adhere to requirements stated in this manual.
-
Page 4: Table Of Contents
CONTENTS I. Safety Notes ................5 A. General Information ............. 5 B. EMC Guidance and Manufacturer's Declaration ......8 II. Installation ................12 A. Attaching tray..............12 B. Height Measure Attachment ..........13 C. Inserting Batteries ............. 14 D. Using Adapter ..............15 III. -
Page 5: Safety Notes
I. Safety Notes A. General Information Thank you for choosing this Charder Medical device. It is designed to be easy and straightforward to operate, but if you encounter any problems not addressed in this manual, please contact your local Charder service partner. - Page 6 If results are inaccurate, please contact local distributor. Warranty/Liability If Charder is responsible for a fault or defect present upon receipt of the unit, Charder shall either repair the fault, or supply a replacement unit.
- Page 7 Charder accessories and spare parts. Charder is not liable for any damages arising from improper maintenance or usage. Dismantlement of the device will void the warranty. Disposal This product is not to be treated as regular household waste, but ...
-
Page 8: Emc Guidance And Manufacturer's Declaration
B. EMC Guidance and Manufacturer's Declaration Guidance and manufacturer’s declaration-electromagnetic emissions The MS4200 Infant Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. - Page 9 Guidance and manufacturer’s declaration-electromagnetic immunity The MS4200 Infant Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. IEC 60601 Compliance...
- Page 10 Guidance and manufacturer’s declaration-electromagnetic immunity The MS4200 Infant Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that is used in such an environment. IEC 60601 test Compliance...
- Page 11 Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m. Recommended separation distance between portable and mobile RF communications equipment and the MS4200 Infant Scale The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.
-
Page 12: Installation
II. Installation A. Attaching tray 1. Slide tray onto device 2. Turn device upside down. Secure tray to device by turning knob on each side of tray. (turn clockwise to tighten, turn counter-clockwise to loosen) 3. Device can now be used for measurement. -
Page 13: Height Measure Attachment
B. Height Measure Attachment 1. Attach bracket to device and baby tray, and fasten screws using screwdriver. Bracket 2. Connect height measure attachment to bracket. A clicking noise will be heard. -
Page 14: Inserting Batteries
C. Inserting Batteries 1. Locate battery cover on bottom of device 2. Remove battery cover. Insert batteries. Ensure polarity is correct. -
Page 15: Using Adapter
3. Insert all batteries. Close cover and turn scale right-side up. D. Using Adapter Device can be powered via adapter using port located at rear of device. Plug adapter into device before plugging into mains. -
Page 16: Indicator
III. Indicator Indicator and Key Functions Key Functions 1. On/Zero/Off: Turn device on and off. Zero scale (± 2% of full capacity). Press and hold for 3 seconds to enter settings. 2. Hold: Determine stable weighing value - used when weight is unstable. 3. -
Page 17: Using Device
IV. Using Device A. Basic Operation Switch on the device using [On/Zero/Off] key. The device will automatically perform self-calibration, displaying software version. Once "0.00 kg" appears on indicator, device is ready for measurement. Note: If "0.00 kg" does not display on indicator, press [On/Zero/Off] key to zero the device. -
Page 18: Wireless Connection
Hold after subject is placed on platform. V. Wireless Connection If the device has the wireless or bluetooth module installed, the indicator can transmit measurement results wirelessly. Please see Charder wireless or bluetooth software instructions for details. VI. Device Setup When the device is switched on, press and hold the [On/Zero/Off] key until the display shows "SET"... -
Page 19: Troubleshooting
Warranty Program & Return Policy. 1. If Charder is responsible for a fault or defect present upon receipt of the unit, Charder shall either repair the fault, or supply a replacement unit. - Page 20 Charder. If device is not covered under warranty, a service maintenance charge will apply, plus cost of replacement parts. Before contacting your local Charder distributor for repair service, we recommend considering the following troubleshooting procedures: Self-inspection 1.
- Page 21 2. Indicator damage Possible hardware defects include: uneven brightness in LCD screen, blurred text, smeared rainbow screen, incorrect decimal display Unable to save or read data Indicator shows "ERRL" after device is switched on Keys not responding ...
-
Page 22: Product Specifications
VIII. Product Specifications A. Device Information Model MS4200 Weight Capacity 0-10 kg x 5g Measurement 10-20 kg x 10g Accuracy ± 1.5e LCD Screen 1.0-inch LCD screen (5 digits) OIML Class III Dimensions Total 560(W) x 325(D) x 145(H) mm... -
Page 23: Power Adapter Standards
B. Power Adapter Standards Warning The device is only compatible with the power adapters specified in the dashed block below. DRAWING NO.: CE APPROVED TYPE NO. / TYPE Adapter VOLTAGE MODEL NO.: plug 9V DC 100mA AD-038A D41W1090100-13/1 9V DC 100mA AD-0484 D35W090100-23/1 9V DC 100mA... -
Page 24: Declaration Of Conformity
2014/31/EU Non-automatic Weighing Instruments Directive Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City, 41262 Taiwan (R.O.C.) CD-IN-1395 16252H 11/2020...
