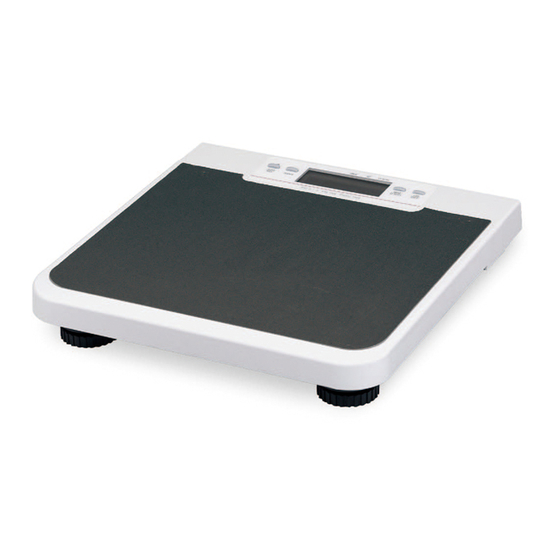

- Page 1 USER MANUAL MS6110 Stand-on Floor Scale Please keep the instruction manual at hand all the time for future reference.
- Page 2 Explanation of Graphic Symbols on Label/Packaging Caution, consult Separate collection for accompanying documents waste of electrical and before use electronic equipment, in accordance with Directive 2002/96/EC Manufacturer of medical Manufacturing year of device medical device Carefully read user manual Medical electrical before installation and equipment with Type B usage, and follow...
- Page 3 Copyright© Charder Electronic Co., Ltd. All rights reserved. This user manual is protected by international copyright law. All content is licensed, and usage is subject to written authorization from Charder Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any damage caused by a failure to adhere to requirements stated in this manual.
-
Page 4: Table Of Contents
CONTENTS I. Safety Notes ................5 A. General Information ............5 B. EMC Guidance and Manufacturer's Declaration ......8 II. Installation ................12 A. Assembly ................12 B. Inserting Batteries .............12 C. Using Adapter ..............12 III. Indicator ................13 A. Indicator and Key Functions ..........13 B. -
Page 5: Safety Notes
I. Safety Notes A. General Information Thank you for choosing this Charder Medical device. It is designed to be easy and straightforward to operate, but if you encounter any problems not addressed in this manual, please contact your local Charder service partner. - Page 6 All maintenance, technical inspections, and repairs should be conducted by an authorized Charder service partner, using original Charder accessories and spare parts. Charder is not liable for any damages arising from improper maintenance or usage. Disposal This product is not to be treated as regular household waste, but ...
- Page 7 Use only a correctly wired (100-240VAC) outlet, and do not use a multiple outlet extension cable. Do not under any circumstances dismantle or alter the device, as this could result in electric shock or injury as well as adversely affect the precision of measurements.
-
Page 8: Emc Guidance And Manufacturer's Declaration
B. EMC Guidance and Manufacturer's Declaration Guidance and manufacturer’s declaration-electromagnetic emissions The MS6110 Stand-on Floor Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. - Page 9 NOTE UT is the a.c. mains voltage prior to application of the test level. Guidance and manufacturer’s declaration-electromagnetic immunity The MS6110 Stand-on Floor Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that is used in such an environment.
- Page 10 80MHz to 2,7 GHz the frequency of the transmitter. 3 V/m 80MHz to 2,7 Recommended separation distance: d = 1,2 √P d = 1,2 √P 80MHz to 800 MHz d = 2,3 √P 800MHz to 2,5 GHz Where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d...
- Page 11 Recommended separation distance between portable and mobile RF communications equipment and the MS6110 Stand-on Floor Scale The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the device can help prevent...
-
Page 12: Installation
II. Installation A. Assembly Device does not require assembly, and can be used once power is supplied. B. Inserting Batteries Insert batteries in compartment 2. Turn on power to confirm that battery is correctly installed. C. Using Adapter 1. Connect adapter to device before connecting to mains power supply 2. -
Page 13: Indicator
III. Indicator A. Indicator and Key Functions Key Function 1. ON/OFF: Power button. Weighing results will face patient when device is initially powered on. 2. HOLD/BMI: Press once to Hold (determine stable weighing value - used when weight is unstable). Press and hold for 3 seconds to enter Body Mass Index (BMI) calculation mode. -
Page 14: Using Device
IV. Using Device A. Basic Operation Switch on the device using [ON/OFF] key. (To turn off device, press and hold [ON/OFF] key for 3 seconds) The device will automatically perform self-calibration, displaying software version. Once "0.00 kg" appears on indicator, device is ready for measurement. Note: If "0.00 kg"... -
Page 15: Tare
C. Tare The tare function allows the user to deduct the weight of objects from the device's measurement result. 1. Place object that needs to be tared onto measurement platform. 2. Press [ZERO/TARE] key after stable symbol appears on indicator. Display will indicate "0.00 kg". -
Page 16: Device Setup
V. Device Setup When the device is switched on, press and hold the [ZERO/TARE] key for 6 seconds, until the display shows the "SETUP”, followed by "A_OFF” (first option in setting menu). In device setup: [HOLD/BMI] select menu option [ZERO/TARE] confirm selection Auto-off: Instruct device to shut off automatically after a certain period of time. -
Page 17: Wireless Connection
If "PKEY" is selected, transfer will occur manually only after [PRINT] key is pressed. VI. Wireless Connection If the device has the wireless module installed, the indicator can transmit measurement results wirelessly. Please see Charder wireless software instructions for details. -
Page 18: Troubleshooting
VII. Troubleshooting Before contacting your local Charder distributor for repair service, we recommend considering the following troubleshooting procedures: Self-inspection 1. Device will not power on If battery power is depleted, replace with new batteries If batteries are not used, check if the AC power adapter is plugged ... - Page 19 2. Indicator damage Possible hardware defects include: uneven brightness in LCD screen, blurred text, smeared rainbow screen, incorrect decimal display Unable to save or read data Indicator shows "ERRL" after device is switched on Keys not responding ...
-
Page 20: Product Specifications
VIII. Product Specifications Model MS6110 Capacity 160 kg x 0.2 kg 200 kg x 0.2 kg Accuracy ± 1.5e Weight Measurement OIML Class III LCD Screen 1.0-inch LCD screen (5 digits) Dimensions Overall 345(W) x 350(D) x 65(H) mm Device Weight 2.7 kg... - Page 21 Notes _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________...
- Page 22 Notes _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________...
- Page 23 Notes _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________...
-
Page 24: Declaration Of Conformity
2014/31/EU Non-automatic Weighing Instruments Directive Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City, 412 Taiwan (R.O.C.) CD-IN-1386 15249K 11/2020...
