Connecting to External Devices

When Connecting to your PC

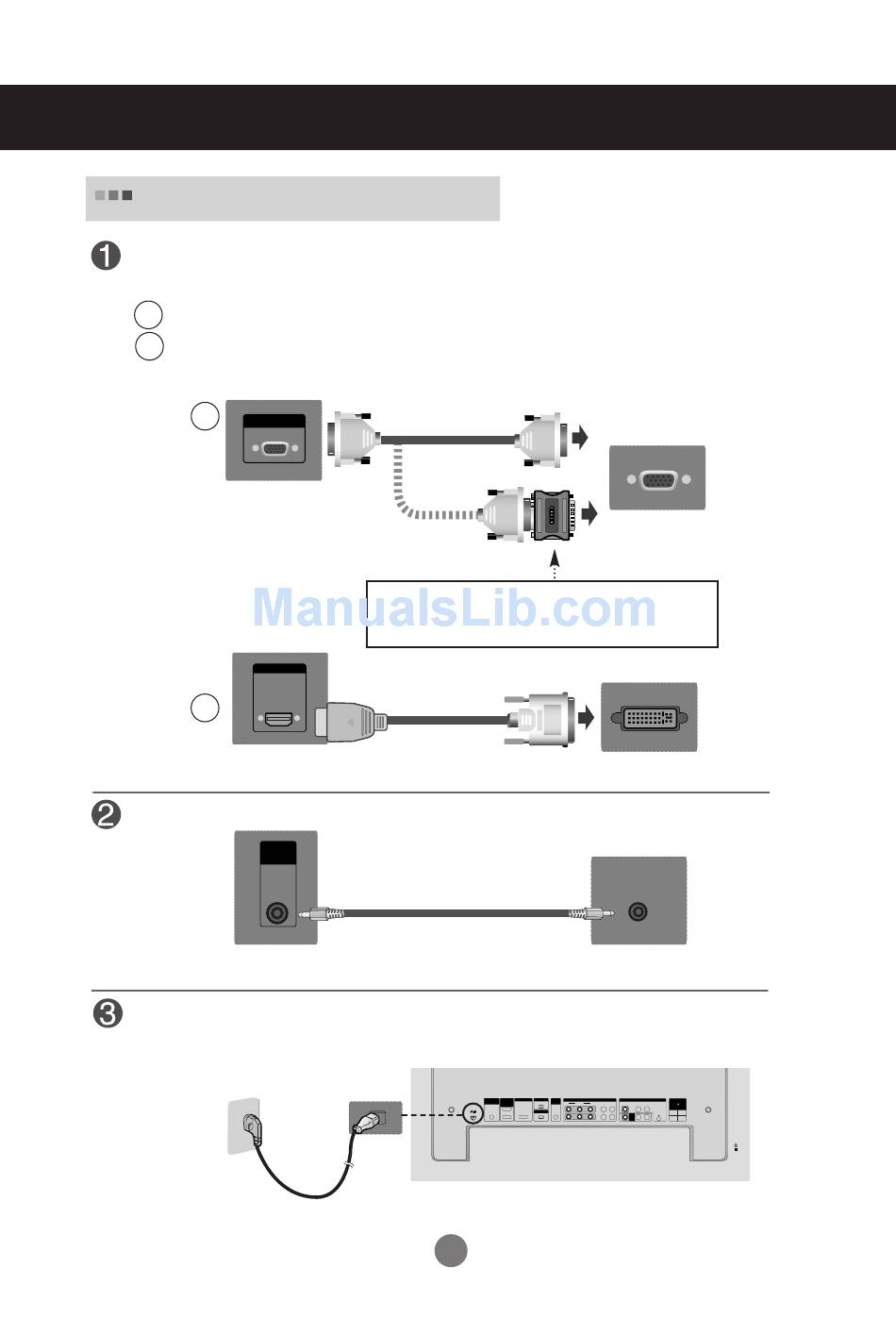

First of all, see if the computer, product and the peripherals are turned off.
Then, connect the signal input cable.
When connecting with the D-Sub signal input cable.
A
B
When connecting with the HDMI to DVI signal input cable (not included).
A
RGB IN
Rear side of the product.
HDMI/DVI IN
B
Rear side of the product.
Connect the Audio cable.
AUDIO
(RGB/DVI)
Rear side of the product.
Connect the power cord.
PC
MAC
Macintosh Adapter (not included)
Use the standard Macintosh adapter since an incompatible
adapter is available in the market. (Different signaling system)
(not included)
Rear side of the product.
REMOTE
RS-232C
HDMI/DVI IN
RGB IN
CONTROL IN
(CONTROL&
SERVICE)
OUT
RGB OUT
IN
4
PC/MAC
PC
PC
AUDIO
COMPONENT IN
AV IN
SPEAKER
(RGB/DVI)
VIDEO
L-AUDIO-R
VIDEO
L-AUDIO-R
(8)
Y
P
B
P
R
(R)
(L)
1
+
+
S-VIDEO
AV
2
OUT
-
-
