NOTE
You can download and install the latest version from the LGE website (www.lg.com).
Drivers and Software | Installation Priority |
Monitor Driver | Recommended |
On Screen Control | Recommended |
Dual Controller | Optional |
Joystick Button Power LED
How to Use the Joystick Button
You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your finger.
Basic Functions
![]() | ![]() | Power on | Press the joystick button once with your finger to turn on the monitor. |
![]() | Power off | Press and hold the joystick button once with your finger to turn off the monitor. | |
![]() | ◄/► | Volume Control | You can control the volume by moving the joystick button left/right. |
NOTE
When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or damaged and to ensure safe transportation regardless of its shape or size.
Arrange the cables using the cable holder as shown in the illustration.
Lift the monitor and place it on the table in an upright position.
Place at least 100 mm (3.94 inches) away from the wall to ensure sufficient ventilation.
The Kensington security system connector is located at the back of the Monitor set.
For more information on installation and usage, refer to the Kensington lock user manual or visit the website at http://www.kensington.com.
Connect the Kensington security system cable between the Monitor set and a table.
NOTE
This monitor supports the specification of the standard wall mount plate or compatible device.
NOTE
Install the monitor at least 100 mm (3.94 inches) away from the wall and leave about 100 mm (3.94 inches) of space at each side of the monitor to ensure sufficient ventilation. Detailed installation instructions can be obtained from your local retail store. Please refer to the manual to install and set up a tilting wall mounting bracket.
To install the monitor to a wall, attach a wall mounting bracket (optional) to the back of the monitor. Make sure that the wall mounting bracket is securely fixed to the monitor and to the wall.
Wall Mount (A x B) | 200 x 200 |
Standard screw | M6 |
Number of screws | 4 |
Wall Mount Plate (Optional) | LSW240B |
NOTE
The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully to use the monitor correctly.
To install batteries, open the battery cover, place batteries (1.5 V AAA) matching and
terminals to the labels inside the compartment, and close the battery cover.
To remove the batteries, perform the installation actions in reverse. The illustrations may differ from the actual accessories.
Transmits the digital video and audio signals from your PC and A/V devices to the monitor. Connect your PC and AV device to the monitor with the HDMI cable as illustrated below.
Press the menu button and then select the input option from the input menu.
NOTE
Transmits the digital video and audio signals from your PC to the monitor. Connect your PC to the monitor using the DisplayPort cable as illustrated below.
Press the menu button and then select the input option from the input menu.
NOTE
Transmits digital video and audio signals from your PC to the monitor.
Connect the monitor to your PC using the USB C-C cable as shown in the illustration below. Press the menu button and then select the input option from the input menu.
NOTE
Transmits the digital video and audio signals from your PC and A/V devices to the monitor. Connect your PC and AV device to the monitor with the HDMI cable as illustrated below.
Press the menu button and then select the input option from the input menu.
NOTE
The USB port on the product functions as a USB hub. Please connect the USB C-C cable to the PC.
NOTE
Cautions When Using a USB Device
Connect peripherals to the monitor via the headphones port. Connect as illustrated.
NOTE
NOTE
Button | Menu Status | Description | |
![]() | Main menu disabled | Enables the main menu. | |
Main menu enabled | Exits the main menu. (Holding down the button to turn off the monitor. You can turn off the monitor this way at any time, including when the OSD is on.) | ||
![]() | ◄ | Main menu disabled | Adjusts the monitor volume level. |
Main menu enabled | Enters the Input feature. | ||
► | Main menu disabled | Adjusts the monitor volume level. | |
Main menu enabled | Enters the Settings features. | ||
![]() | ▲ | Main menu disabled | Enters the Accessibility menu. |
Main menu enabled | Turns off the monitor. | ||
▼ | Main menu disabled | Enters the Accessibility menu. | |
Main menu enabled | Enters the Game Mode features. |
Main Menu | Description |
Settings | Configures the screen settings. |
Game Mode | You can change Picture Mode to a gaming mode. |
Input | Sets input mode. |
Power Off | Turns off the monitor. |
Exit | Exits the main menu. |
Each option is described below.
Settings > Quick Settings | Description | |
Brightness | Adjusts the color contrast and brightness of the screen. | |
Contrast | ||
Volume | Adjusts the volume level.
| |
Color Temp | Custom | The user can adjust it to red, green, or blue by customization. |
Warm | Sets the screen color to a reddish tone. | |
Medium | Sets the screen color between a red and blue tone. | |
Cool | Sets the screen color to a bluish tone. |
[PBP/PIP OFF]
Settings > Input | Description | |
Input List | Selects the input mode. | |
Aspect Ratio | Adjusts the aspect ratio of the screen. | |
Full Wide | Displays the video in wide-screen, regardless of the video signal input. | |
Original | Displays video according to the aspect ratio of the video signal input. | |
Just Scan | The aspect ratio is not adjusted from the original. | |
| ||
PBP/PIP | You can select the various PBP or PIP combination. |
[PBP/PIP ON]
Settings > Input | Description | ||
Input List | Displays the screens of main input and sub input. | ||
Aspect Ratio | Adjusts the aspect ratio of the screen. | ||
Main input | Full Wide | Displays the video to fit the PBP/PIP screen, regardless of the video signal input. | |
Original | Displays the video in the aspect ratio of the video signal input on the PBP/PIP screen. | ||
Sub input | Full Wide | Displays the video to fit the PBP/PIP screen, regardless of the video signal input. | |
Original | Displays the video in the aspect ratio of the video signal input on the PBP/PIP screen. | ||
PBP/PIP | You can select the various PBP or PIP combination. | ||
PIP Size | Sets the size of the PIP Sub window. ( Small/Medium/Large ) | ||
Transparency | Sets the opacity of PIP. | ||
Sound Out | Select the audio output in PBP/PIP mode. |
NOTE
The Picture Mode that can be set depends on the Input signal.
[Picture Mode on SDR (Non-HDR) signal]
Settings > Picture | Description | |
Picture Mode | Custom | Allows the user to adjust each element. The color mode of the main menu can be adjusted. |
Vivid | Heightens contrast, brightness and sharpness to display vivid images. | |
HDR Effect | Optimizes the screen for high dynamic range. | |
Reader | Optimizes the screen for viewing documents. You can brighten the screen in the OSD menu. | |
Cinema | Optimizes the screen for video. | |
FPS | This mode is optimized for FPS games. | |
RTS | This mode is optimized for RTS Game. | |
Color Weakness | This mode is for users who cannot distinguish between red and green. It enables users with color weakness to easily distinguish between the two colors. |
NOTE
[Picture Mode on HDR signal]
Settings > Picture | Description | |
Picture Mode | Custom | Allows the user to adjust each element. |
Vivid | Optimized the screen for HDR vivid colors. | |
Standard | Optimized the screen for HDR standard. | |
Cinema | Optimized the screen for HDR video. | |
FPS | This mode is optimized for FPS games. It is suitable for very dark FPS games. | |
RTS | This mode is optimized for RTS Game. | |
|
Picture Adjust | Brightness | Adjusts the brightness of the screen. | ||
Contrast | Adjusts the contrast of the screen. | |||
Sharpness | Adjusts the sharpness of the screen. | |||
SUPER RESOLUTION+ | High | Optimized picture quality is displayed when a user wants crystal clear images. It is effective for high quality video or game. | ||
Middle | The optimized picture quality is displayed when a user wants images between low and high modes for comfortable viewing. It is effective for UCC or SD video. | |||
Low | The optimized picture quality is displayed when a user wants smooth and natural images. It is effective for slow-moving pictures or still images. | |||
Off | Select this option for everyday viewing. SUPER RESOLUTION+ is turned off in this mode. | |||
| ||||
Black Level | Sets the offset level (for HDMI only).
| |||
High | Keeps the current contrast ratio of the screen. | |||
Low | Lowers the black levels and raises the white levels from the current contrast ratio of the screen. | |||
DFC | On | Adjusts the brightness automatically according to the screen. | ||
Off | Disables the DFC feature. | |||
Game Adjust | Response Time | Sets a response time for displayed pictures based on the movement of the picture on the screen. For a normal environment, it is recommended that you use Fast. When there is a lot of motion, it is recommended that you use Faster. Setting to Faster may cause image sticking. | ||
Faster | Sets the response time to faster. | |||
Fast | Sets the response time to fast. | |||
Normal | Sets the response time to normal. | |||
Off | Does not use the response time improvement feature. | |||
Black Stabilizer | You can control the black contrast to have better visibility in dark scenes. Increasing the Black Stabilizer value brightens the low gray level area on the screen. (You can easily distinguish objects on dark game screens.) Reducing the Black Stabilizer value darkens the low gray level area and increases the dynamic contrast on the screen. | |||
Color Adjust | Gamma | Mode 1, Mode 2, Mode 3 | The higher the gamma value, the darker the image becomes. Likewise, the lower the gamma value, the lighter the image becomes. | |
Mode 4 | If you do not need to adjust the gamma settings, select Mode 4. | |||
Color Temp | Custom | The user can adjust it to red, green, or blue by customization. | ||
Warm | Sets the screen color to a reddish tone. | |||
Medium | Sets the screen color between a red and blue tone. | |||
Cool | Sets the screen color to a bluish tone. | |||
Red | You can customize the picture color using Red, Green, and Blue colors. | |||
Green | ||||
Blue | ||||
Six Color | Meets the user requirements for colors through adjusting the color and saturation of the six colors(Red_Hue, Red_Saturation, Green_Hue, Green_Saturation, Blue_Hue, Blue_Saturation, Cyan_Hue, Cyan_Saturation, Magenta_Hue, Magenta_Saturation, Yellow_Hue, Yellow_Saturation) and saving the settings. | |||
Hue | Adjusts the tone of the screen colors. | |||
Saturation | Adjusts the saturation of the screen colors. The lower the value, the less saturated and brighter the colors become. The higher the value, the more saturated and darker the colors become. | |||
Picture Reset | Do you want to Picture reset your settings? | |||
Yes | Returns to the default settings. | |||
No | Cancel the select. |
Settings > General | Description | ||||
Language | Sets the menu screen to the desired language. | ||||
Sound Optimizer | Allows optimized sound for individual Monitor installation. | ||||
Stand Type | Optimized sound for a stand-mounted Monitor. | ||||
Wall Mount Type | Optimized sound for a wall-mounted Monitor. | ||||
SMART ENERGY SAVING | High | Saves energy using the high-efficiency SMART ENERGY SAVING feature. | |||
Low | Saves energy using the low-efficiency SMART ENERGY SAVING feature. | ||||
Off | Disables the SMART ENERGY SAVING feature. | ||||
Set ID | You can choose the Set ID 01~Set ID 10 | ||||
Power LED | Turns the power LED on the bottom of the monitor on or off. | ||||
On | The power LED turns on automatically. | ||||
Off | The power LED turns off. | ||||
Automatic Standby | Feature that automatically turns off the monitor when there is no movement on the screen for a period of time. You can set a timer for the auto-off function. (Off, 4 H, 6 H, and 8 H) | ||||
DisplayPort Version | Set DisplayPort Version to the same version as the connected external device. (1.4, 1.2, and 1.1) To use the HDR function, set to 1.4. | ||||
HDMI ULTRA HD Deep Color | Provides sharper images when connected to a device supporting ULTRA HD Deep Color. | ||||
4K@ 60 Hz Support Format | |||||
Resolution | Frame rate(Hz) | Color Depth / Chroma Sampling | |||
8 bit | 10 bit | ||||
3840 x 2160 | 59.94 60.00 | YCbCr 4:2:0 | |||
YCbCr 4:2:2 | |||||
YCbCr 4:4:4 | - | ||||
RGB 4:4:4 | - | ||||
| |||||
Buzzer | This feature lets you set the sound generated from Buzzer when your monitor powers on. | ||||
On | Enables your monitor's Buzzer. | ||||
Off | Disables your monitor's Buzzer. | ||||
OSD Lock | This feature disables the configuration and adjustment of menus. | ||||
On | Enables OSD Lock. | ||||
Off | Disables OSD Lock. | ||||
| |||||
OSD Size | User can select OSD Size to Large or Small. | ||||
Information | The following display information will be shown; Serial Number, Total Power On Time, Resolution. | ||||
Reset to Initial Settings | Do you want to reset your settings? | ||||
Yes | Returns to the default settings. | ||||
No | Cancel the select. |
NOTE
Nothing is displayed on the screen. | |
Is the monitor's power cord plugged in? |
|
Is the power LED on? |
|
Is the power on and the power LED displaying white? |
|
Is the OUT OF RANGE message being displayed? |
|
Is the No Signal message being displayed? |
|
The OSD lock message is being displayed. | |
Are some functions not available when you press the Menu button? |
|
The screen retains an image. | |
Does image sticking occur even when the monitor is turned off? |
|
Screen display is unstable and shaky / Images displayed on the monitor leave shadow trails. | |
Did you select the appropriate resolution? |
|
NOTE
The display color is abnormal. | |
Does the display appear discolored (16 colors)? |
|
Does the display color appear unstable or monochrome? |
|
Are there spots on the screen? |
|
Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message? | |
Have you installed the display driver? |
|
No sound from the headphone port or speaker. | |
Are images displayed using DisplayPort or HDMI input without sound? |
|

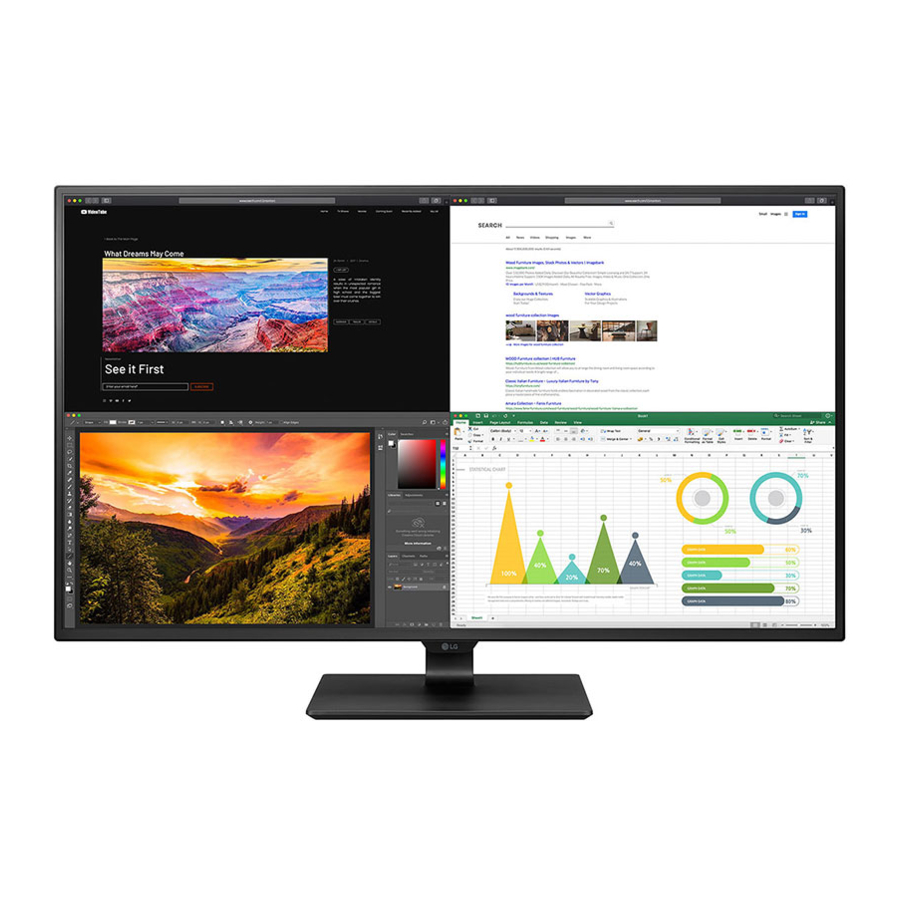

43UN700
43UN700P
43BN70U
43BN70UP
LCD Screen | Type | TFT (Thin Film Transistor) LCD (Liquid Crystal Display) Screen |
Resolution | Maximum Resolution | HDMI IN 1/2: 3840 x 2160 @ 30 Hz HDMI IN 3/4: 3840 x 2160 @ 60 Hz DP IN (USB-C IN): 3840 x 2160 @ 60 Hz |
Recommended Resolution | HDMI IN 1/2: 3840 x 2160 @ 30 Hz HDMI IN 3/4: 3840 x 2160 @ 60 Hz DP IN (USB-C IN): 3840 x 2160 @ 60 Hz | |
Power input | 100-240 V~ 50 / 60 Hz, 2.3 A | |
Power consumption (Typ.) | On mode: 95 W Typ. (Outgoing condition)* Sleep Mode (Standby Mode) ≤ 0.5 W Off Mode ≤ 0.3 W | |
Environmental Conditions | Operating Condition | Temperature: 0°C to 40°C (32°F to 104°F); Humidity: < 80% |
Storing Condition | Temperature: -20°C to 60°C (-4°F to 140°F); Humidity: < 85% | |
Dimension | Monitor Size (Width x Height x Depth) | |
With Stand | 967 mm x 647.6 mm x 275 mm (38.0 inches x 25.4 inches x 10.8 inches) | |
Without Stand | 967 mm x 575.2 mm x 70.6 mm (38.0 inches x 22.6 inches x 2.7 inches) | |
Weight (Without Packaging) | With Stand | 17.5 kg (38.5 lbs) |
Without Stand | 13.8 kg (30.3 lbs) |
The specifications are subject to change without notice.
The symbol means alternating current, and the symbol means direct current.
* The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with LGE test standard (Full White pattern, Maximum resolution).
43UN700T
LCD Screen | Type | TFT (Thin Film Transistor) LCD (Liquid Crystal Display) Screen |
Resolution | Maximum Resolution | HDMI IN 1/2: 3840 x 2160 @ 30 Hz HDMI IN 3/4: 3840 x 2160 @ 60 Hz DP IN (USB-C IN): 3840 x 2160 @ 60 Hz |
Recommended Resolution | HDMI IN 1/2: 3840 x 2160 @ 30 Hz HDMI IN 3/4: 3840 x 2160 @ 60 Hz DP IN (USB-C IN): 3840 x 2160 @ 60 Hz | |
Power input | 100-240 V~ 50 / 60 Hz, 2.3 A | |
Power consumption (Typ.) | On mode: 95 W Typ. (Outgoing condition)* Sleep Mode (Standby Mode) ≤ 0.5 W Off Mode ≤ 0.3 W | |
Environmental Conditions | Operating Condition | Temperature: 0°C to 40°C (32°F to 104°F); Humidity: < 80% |
Storing Condition | Temperature: -20°C to 60°C (-4°F to 140°F); Humidity: < 85% | |
Dimension | Monitor Size (Width x Height x Depth) | |
With Stand | 967 mm x 624.1 mm x 233 mm (38.0 inches x 24.5 inches x 9.1 inches) | |
Without Stand | 967 mm x 575.2 mm x 70.6 mm (38.0 inches x 22.6 inches x 2.7 inches) | |
Weight (Without Packaging) | With Stand | 14.6 kg (32.1 lbs) |
Without Stand | 14.4 kg (31.6 lbs) |
The specifications are subject to change without notice.
The symbol means alternating current, and the symbol means direct current.
* The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with LGE test standard (Full White pattern, Maximum resolution).
Display Modes (Resolution) | Horizontal Frequency(kHz) | Vertical Frequency(Hz) | Polarity(H/V) | Remarks |
640 x 480 | 31.469 | 59.94 | -/- | |
800 x 600 | 37.879 | 60.317 | +/+ | |
1024 x 768 | 48.363 | 60 | -/- | |
1152 x 864 | 54.347 | 60.05 | +/+ | |
1280 x 720 | 45 | 60 | +/+ | |
1280 x 1024 | 63.981 | 60.02 | +/+ | |
1600 x 900 | 60 | 60 | +/+ | |
1920 x 1080 | 67.5 | 60 | +/- | |
1920 x 2160 | 133.32 | 60 | +/- | |
2560 x 1440 | 88.79 | 59.95 | +/- | |
3840 x 1080 | 70.2 | 60 | +/+ | |
3840 x 2160 | 67.5 | 30 | +/- | |
3840 x 2160 | 135 | 60 | +/- | When HDMI ULTRA HD Deep Color is set to ON. |
Display Modes (Resolution) | Horizontal Frequency(kHz) | Vertical Frequency(Hz) | Polarity(H/V) | Remarks |
640 x 480 | 31.469 | 59.94 | -/- | |
800 x 600 | 37.879 | 60.317 | +/+ | |
1024 x 768 | 48.363 | 60 | -/- | |
1152 x 864 | 54.347 | 60.05 | +/+ | |
1280 x 720 | 45 | 60 | +/+ | |
1280 x 1024 | 63.981 | 60.02 | +/+ | |
1600 x 900 | 60 | 60 | +/+ | |
1920 x 1080 | 67.5 | 60 | +/- | |
1920 x 2160 | 133.32 | 60 | +/- | |
2560 x 1440 | 88.79 | 59.95 | +/- | |
3840 x 1080 | 70.2 | 60 | +/+ | |
3840 x 2160 | 66.66 | 30 | +/- | |
3840 x 2160 | 133.32 | 60 | +/- |
Factory support mode (Preset Mode) | Horizontal Frequency(kHz) | Vertical Frequency(Hz) | Remarks |
480p | 31.5 | 60 | |
720p | 45.0 | 60 | |
1080p | 67.5 | 60 | |
2160p | 135 | 60 | When HDMI ULTRA HD Deep Color is set to ON. |
Mode | LED Color |
On Mode | White (For a few seconds) |
Sleep Mode (Standby Mode) | Off |
Off Mode | Off |
Baud rate: 9600 bps (UART)
Data length: 8 bits
Parity: None
Stop bit: 1 bit
Communication code: ASCII code Use a crossed (reverse) cable.
[Command1][Command2][ ][Set ID][ ][Data][Cr]
* [Command 1]: First command to control the Monitor.
* [Command 2]: Second command to control the Monitor.
* [Set ID]: You can adjust the set ID to choose desired monitor ID number in option menu.
Adjustment range is 1 ~ 10.
When selecting Set ID '0,' every connected set is controlled.
Set ID is indicated as decimal (1~10) on menu and as Hexa decimal (0x0~0x0A) on transmission/receiving protocol.
* [DATA]: To transmit command data.
* [Cr]: Carriage Return
ASCII code '0x0D'
* [ ]: ASCII code 'space (0x20)'
[Command1][Command2][ ][Set ID][ ][Data][Cr]
[Command2][ ][Set ID][ ][OK][Data][x]
* The Monitor transmits ACK (acknowledgement) based on this format when receiving normal data. At this time, if the data is in data read mode, it indicates present status data. If the data is in data write mode, it returns the data of the PC computer.
[Command2][ ][Set ID][ ][NG][Data][x]
* The Monitor transmits ACK (acknowledgement) based on this format when receiving abnormal data from nonviable functions or communication errors.
Title | Command 1 | Command 2 | Data(Hex) |
Power | k | a | 00 ~ 01 |
Screen Mute | k | d | 00 ~ 01 |
Input select (Main) | x | b | 00 ~ FF |
Input select (Sub) | x | c | 00 ~ FF |
Input select (Sub2) | x | d | 00 ~ FF |
Input select (Sub3) | x | e | 00 ~ FF |
Aspect Ratio (Main) | x | f | 00 ~ 02 |
Aspect Ratio (Sub) | x | g | 00 ~ 01 |
Aspect Ratio (Sub2) | x | h | 00 ~ 01 |
Aspect Ratio (Sub3) | x | i | 00 ~ 01 |
PBP/PIP | k | n | 00 ~ 09 |
PIP Size | k | p | 00 ~ 02 |
Main/Sub Screen Change | m | a | 01 |
Picture Mode | d | x | 00 ~ 15 |
Brightness | k | h | 00 ~ 64 |
Contrast | k | g | 00 ~ 64 |
Sharpness | k | k | 00 ~ 64 |
Brightness Stabilization | m | b | 00 ~ 01 |
SUPERRESOLUTION+ | m | c | 00 ~ 03 |
BlackLevel | m | d | 00 ~ 01 |
HDMIULTRAHD DeepColor | m | e | 00 ~ 01 |
DFC | m | f | 00 ~ 01 |
Response Time | m | g | 00 ~ 03 |
Black Stablilzer | m | h | 00 ~ 64 |
Uniformity | m | i | 00 ~ 01 |
Gamma | m | j | 00 ~ 03 |
Color Temp | k | u | 00 ~ 04 |
Red Gain | j | w | 00 ~ 64 |
Green Gain | j | y | 00 ~ 64 |
Blue Gain | j | z | 00 ~ 64 |
Language | f | i | 00 ~ 10 |
SMART ENERGY SAVING | m | k | 00 ~ 02 |
Auto Screen Off | m | n | 00 ~ 01 |
DisplayPort Version | m | o | 00 ~ 02 |
OSDLock | k | m | 00 ~ 01 |
Reset | f | k | 00 ~ 01 |
Volume Mute | k | e | 00 ~ 01 |
Volume Control | k | f | 00 ~ 64 |
Title | Item |
Power | 00: Power Off, 01: Power On |
Screen Mute | 00: Screen Mute Off, 01: Screen Mute On |
Input select (Main) | 90:HDMI1, 91:HDMI2, 92:HDMI3, 93:HDMI4, C0:DP, E0:USB-C |
Input select (Sub) | 90:HDMI1, 91:HDMI2, 92:HDMI3, 93:HDMI4, C0:DP, E0:USB-C |
Input select (Sub2) | 90:HDMI1, 91:HDMI2, 92:HDMI3, 93:HDMI4, C0:DP, E0:USB-C |
Input select (Sub3) | 90:HDMI1, 91:HDMI2, 92:HDMI3, 93:HDMI4, C0:DP, E0:USB-C |
Aspect Ratio (Main) | 00:Full Wide, 01:Original, 02: "Just Scan", 03:Cinema1, 04:Cinema2 |
Aspect Ratio (Sub) | 00:Full Wide, 01:Original |
Aspect Ratio (Sub2) | 00:Full Wide, 01:Original |
Aspect Ratio (Sub3) | 00:Full Wide, 01:Original |
PBP/PIP | 00:OFF, 01:PBP, 02: PBP2, 05:PIP_LT, 06:PIP_RT, 07:PIP_LB, 08: PIP_RB, 0C:PBPB_4P |
PIP Size | 00:Small, 01:Medium, 02:Large |
Main/Sub Screen Change | 01: Main/Sub Screen exchange |
Picture Mode | 00: custom, 01: vivid, 02: reader, 03: cinema, 04: sRGB, 05: Adobe, 06: DCI P3, 07: REC2020, 08: FPS1, 09: FPS2, 0A: RTS, 0B: Gamer, 0C: EBU, 0D: Rec709, 0E: SMPTE C. 0F: HDR Effect, 10: Color weakness, 11: Mono, 12: Dicom, 13: Calibration1, 14: Calibration2, 15: HDR Standard |
Brightness | 0 ~ 64 (Hex) ※ Auto Brightness: Backlight Stabilization On |
Contrast | 0 ~ 64 (Hex) |
Sharpness | 0 ~ 64 (Hex) |
Brightness Stabilization | 00: Off, 01: On |
SUPERRESOLUTION+ | 00: High, 01:Middle, 02:Low, 03:Off |
BlackLevel | 00:High, 01:Low |
HDMIULTRAHD DeepColor | 00: On, 01: Off |
DFC | 00: On, 01: Off |
Response Time | 00:Faster, 01:Fast, 02:Normal, 03:Off |
Black Stablilzer | 0 ~ 64 (Hex) |
Uniformity | 00: On, 01: Off |
Gamma | 00:Mode4, 01:Mode1, 02:Mode2, 03Mode3 |
Color Temp | 00:Manual, 01:Custom, 02:WARM, 03:MEDIUM, 04:COOL |
Red Gain | 0 ~ 64 (Hex) |
Green Gain | 0 ~ 64 (Hex) |
Blue Gain | 0 ~ 64 (Hex) |
Language | 00:Eng, 01:Ger, 02:Fre, 03:Spa, 04:Ita, 05:Swe, 06:Fin, 07:Por, 08:Bra, 09:Pol, 0A:Rus, 0B:Grc, 0C:Ukr, 0D:Chi, 0E:ChiT, 0F:Jap, 10:Kor |
SMART ENERGY SAVING | 00:High, 01:Low, 02:Off |
Auto Screen Off | 00: On, 01: Off |
DisplayPort Version | DisplayPort Version: 00:1.1, 01:1.2, 02:1.4 |
OSDLock | 00: Off, 01: On |
Reset | 00: Picture Reset, 01:Factory Reset |
Volume Mute | 00: Volume Mute ON, 01: Volume Mute Off |
Volume Control | 0 ~ 64 (Hex) |
NOTE
Menu | Location |
Quick Settings | 1 |
Quick Settings - Brightness | 1 1 |
Quick Settings - Brightness | 1 1 1 Slider |
Quick Settings - Contrast | 1 2 |
Quick Settings - Contrast | 1 2 1 Slider |
Quick Settings - Volume | 1 3 |
Quick Settings - Volume | 1 3 1 Slider |
Quick Settings - Color Temp | 1 4 |
Quick Settings - Color Temp - Custom | 1 4 1 |
Quick Settings - Color Temp - Warm | 1 4 2 |
Quick Settings - Color Temp - Medium | 1 4 3 |
Quick Settings - Color Temp - Cool | 1 4 4 |
Input (off) | 2 |
Input (off) - Input List | 2 1 |
Input (off) - Input List - HDMI 1 | 2 1 1 |
Input (off) - Input List - HDMI 2 | 2 1 2 |
Input (off) - Input List - HDMI 3 | 2 1 3 |
Input (off) - Input List - HDMI 4 | 2 1 4 |
Input (off) - Input List - DisplayPort | 2 1 5 |
Input (off) - Input List - USB-C | 2 1 6 |
Input (off) - Aspect Ratio | 2 2 |
Input (off) - Aspect Ratio - Full Wide | 2 2 1 |
Input (off) - Aspect Ratio - Original | 2 2 2 |
Input (off) - Aspect Ratio - Just Scan | 2 2 3 |
Input (off) - PBP/ PIP | 2 3 |
Input (off) - PBP/ PIP - OFF | 2 3 1 |
Input (off) - PBP/ PIP - PBP | 2 3 2 |
Input (off) - PBP/ PIP - PBP2 | 2 3 3 |
Input (off) - PBP/ PIP - PBP_4P | 2 3 4 |
Input (off) - PBP/ PIP - PIP_RB | 2 3 5 |
Input (off) - PBP/ PIP - PIP_LB | 2 3 6 |
Input (off) - PBP/ PIP - PIP_LT | 2 3 7 |
Input (off) - PBP/ PIP - PIP_RT | 2 3 8 |
Input (PBP / PBP2) | 2 |
Input (PBP / PBP2) - Input List | 2 1 |
Input (PBP / PBP2) - Input List - Main | 2 1 1 |
Input (PBP / PBP2) - Input List - Main - HDMI 1 | 2 1 1 1 |
Input (PBP / PBP2) - Input List - Main - HDMI 2 | 2 1 1 2 |
Input (PBP / PBP2) - Input List - Main - HDMI 3 | 2 1 1 3 |
Input (PBP / PBP2) - Input List - Main - HDMI 4 | 2 1 1 4 |
Input (PBP / PBP2) - Input List - Main - DisplayPort | 2 1 1 5 |
Input (PBP / PBP2) - Input List - Main - USB-C | 2 1 1 6 |
Input (PBP / PBP2) - Input List - Sub | 2 1 2 |
Input (PBP / PBP2) - Input List - Sub - HDMI 1 | 2 1 2 1 |
Input (PBP / PBP2) - Input List - Sub - HDMI 2 | 2 1 2 2 |
Input (PBP / PBP2) - Input List - Sub - HDMI 3 | 2 1 2 3 |
Input (PBP / PBP2) - Input List - Sub - HDMI 4 | 2 1 2 4 |
Input (PBP / PBP2) - Input List - Sub - DisplayPort | 2 1 2 5 |
Input (PBP / PBP2) - Input List - Sub - USB-C | 2 1 2 6 |
Input (PBP / PBP2) - Aspect Ratio | 2 2 |
Input (PBP / PBP2) - Aspect Ratio - Main | 2 2 1 |
Input (PBP / PBP2) - Aspect Ratio - Main - Full Wide | 2 2 1 1 |
Input (PBP / PBP2) - Aspect Ratio - Main - Original | 2 2 1 2 |
Input (PBP / PBP2) - Aspect Ratio - Sub | 2 2 2 |
Input (PBP / PBP2) - Aspect Ratio - Sub - Full Wide | 2 2 2 1 |
Input (PBP / PBP2) - Aspect Ratio - Sub - Original | 2 2 2 2 |
Input (PBP / PBP2) - PBP/ PIP | 2 3 |
Input (PBP / PBP2) - PBP/ PIP - OFF | 2 3 1 |
Input (PBP / PBP2) - PBP/ PIP - PBP | 2 3 2 |
Input (PBP / PBP2) - PBP/ PIP - PBP2 | 2 3 3 |
Input (PBP / PBP2) - PBP/ PIP - PBP_4P | 2 3 4 |
Input (PBP / PBP2) - PBP/ PIP - PIP_RB | 2 3 5 |
Input (PBP / PBP2) - PBP/ PIP - PIP_LB | 2 3 6 |
Input (PBP / PBP2) - PBP/ PIP - PIP_LT | 2 3 7 |
Input (PBP / PBP2) - PBP/ PIP - PIP_RT | 2 3 8 |
Input (PBP / PBP2) - PIP Size | 2 4 |
Input (PBP / PBP2) - Transparency | 2 5 |
Input (PBP / PBP2) - Sound Out | 2 6 |
Input (2PBP On) - Sound Out - Main | 2 6 1 |
Input (2PBP On) - Sound Out - Sub | 2 6 2 |
Input (PBP_4P) | 2 |
Input (PBP_4P) - Input List | 2 1 |
Input (PBP_4P) - Input List - Main | 2 1 1 |
Input (PBP_4P) - Input List - Main - HDMI 1 | 2 1 1 1 |
Input (PBP_4P) - Input List - Main - HDMI 2 | 2 1 1 2 |
Input (PBP_4P) - Input List - Main - HDMI 3 | 2 1 1 3 |
Input (PBP_4P) - Input List - Main - HDMI 4 | 2 1 1 4 |
Input (PBP_4P) - Input List - Main - DisplayPort | 2 1 1 5 |
Input (PBP_4P) - Input List - Main - USB-C | 2 1 1 6 |
Input (PBP_4P) - Input List - Sub | 2 1 2 |
Input (PBP_4P) - Input List - Sub - HDMI 1 | 2 1 2 1 |
Input (PBP_4P) - Input List - Sub - HDMI 2 | 2 1 2 2 |
Input (PBP_4P) - Input List - Sub - HDMI 3 | 2 1 2 3 |
Input (PBP_4P) - Input List - Sub - HDMI 4 | 2 1 2 4 |
Input (PBP_4P) - Input List - Sub - DisplayPort | 2 1 2 5 |
Input (PBP_4P) - Input List - Sub - USB-C | 2 1 2 6 |
Input (PBP_4P) - Input List - Sub2 | 2 1 3 |
Input (PBP_4P) - Input List - Sub2 - HDMI 1 | 2 1 3 1 |
Input (PBP_4P) - Input List - Sub2 - HDMI 2 | 2 1 3 2 |
Input (PBP_4P) - Input List - Sub2 - HDMI 3 | 2 1 3 3 |
Input (PBP_4P) - Input List - Sub2 - HDMI 4 | 2 1 3 4 |
Input (PBP_4P) - Input List - Sub2 - DisplayPort | 2 1 3 5 |
Input (PBP_4P) - Input List - Sub2 - USB-C | 2 1 3 6 |
Input (PBP_4P) - Input List - Sub3 | 2 1 4 |
Input (PBP_4P) - Input List - Sub3 - HDMI 1 | 2 1 4 1 |
Input (PBP_4P) - Input List - Sub3 - HDMI 2 | 2 1 4 2 |
Input (PBP_4P) - Input List - Sub3 - HDMI 3 | 2 1 4 3 |
Input (PBP_4P) - Input List - Sub3 - HDMI 4 | 2 1 4 4 |
Input (PBP_4P) - Input List - Sub3 - DisplayPort | 2 1 4 5 |
Input (PBP_4P) - Input List - Sub3 - USB-C | 2 1 4 6 |
Input (PBP_4P) - Aspect Ratio | 2 2 |
Input (PBP_4P) - Aspect Ratio - Main | 2 2 1 |
Input (PBP_4P) - Aspect Ratio - Main - Full Wide | 2 2 1 1 |
Input (PBP_4P) - Aspect Ratio - Main - Original | 2 2 1 2 |
Input (PBP_4P) - Aspect Ratio - Sub | 2 2 2 |
Input (PBP_4P) - Aspect Ratio - Sub - Full Wide | 2 2 2 1 |
Input (PBP_4P) - Aspect Ratio - Sub - Original | 2 2 2 2 |
Input (PBP_4P) - Aspect Ratio - Sub2 | 2 2 3 |
Input (PBP_4P) - Aspect Ratio - Sub2 - Full Wide | 2 2 3 1 |
Input (PBP_4P) - Aspect Ratio - Sub2 - Original | 2 2 3 2 |
Input (PBP_4P) - Aspect Ratio - Sub3 | 2 2 4 |
Input (PBP_4P) - Aspect Ratio - Sub3 - Full Wide | 2 2 4 1 |
Input (PBP_4P) - Aspect Ratio - Sub3 - Original | 2 2 4 2 |
Input (PBP_4P) - PBP/ PIP | 2 3 |
Input (PBP_4P) - PBP/ PIP - OFF | 2 3 1 |
Input (PBP_4P) - PBP/ PIP - PBP | 2 3 2 |
Input (PBP_4P) - PBP/ PIP - PBP2 | 2 3 3 |
Input (PBP_4P) - PBP/ PIP - PBP_4P | 2 3 4 |
Input (PBP_4P) - PBP/ PIP - PIP_RB | 2 3 5 |
Input (PBP_4P) - PBP/ PIP - PIP_LB | 2 3 6 |
Input (PBP_4P) - PBP/ PIP - PIP_LT | 2 3 7 |
Input (PBP_4P) - PBP/ PIP - PIP_RT | 2 3 8 |
Input (PBP_4P) - PIP Size | 2 4 |
Input (PBP_4P) - Transparency | 2 5 |
Input (PBP_4P) - Sound Out | 2 6 |
Input (PBP_4P) - Sound Out - Main | 2 6 1 |
Input (PBP_4P) - Sound Out - Sub | 2 6 2 |
Input (PBP_4P) - Sound Out - Sub2 | 2 6 3 |
Input (PBP_4P) - Sound Out - Sub3 | 2 6 4 |
Input (PIP) | 2 |
Input (PIP) - Input List | 2 1 |
Input (PIP) - Input List - Main | 2 1 1 |
Input (PIP) - Input List - Main - HDMI 1 | 2 1 1 1 |
Input (PIP) - Input List - Main - HDMI 2 | 2 1 1 2 |
Input (PIP) - Input List - Main - HDMI 3 | 2 1 1 3 |
Input (PIP) - Input List - Main - HDMI 4 | 2 1 1 4 |
Input (PIP) - Input List - Main - DisplayPort | 2 1 1 5 |
Input (PIP) - Input List - Main - USB-C | 2 1 1 6 |
Input (PIP) - Input List - Sub | 2 1 2 |
Input (PIP) - Input List - Sub - HDMI 1 | 2 1 2 1 |
Input (PIP) - Input List - Sub - HDMI 2 | 2 1 2 2 |
Input (PIP) - Input List - Sub - HDMI 3 | 2 1 2 3 |
Input (PIP) - Input List - Sub - HDMI 4 | 2 1 2 4 |
Input (PIP) - Input List - Sub - DisplayPort | 2 1 2 5 |
Input (PIP) - Input List - Sub - USB-C | 2 1 2 6 |
Input (PIP) - Aspect Ratio | 2 2 |
Input (PIP) - Aspect Ratio - Main | 2 2 1 |
Input (PIP) - Aspect Ratio - Main - Full Wide | 2 2 1 1 |
Input (PIP) - Aspect Ratio - Main - Original | 2 2 1 2 |
Input (PIP) - Aspect Ratio - Sub | 2 2 2 |
Input (PIP) - Aspect Ratio - Sub - Full Wide | 2 2 2 1 |
Input (PIP) - Aspect Ratio - Sub - Original | 2 2 2 2 |
Input (PIP) - PBP/ PIP | 2 3 |
Input (PIP) - PBP/ PIP - OFF | 2 3 1 |
Input (PIP) - PBP/ PIP - PBP | 2 3 2 |
Input (PIP) - PBP/ PIP - PBP2 | 2 3 3 |
Input (PIP) - PBP/ PIP - PBP_4P | 2 3 4 |
Input (PIP) - PBP/ PIP - PIP_RB | 2 3 5 |
Input (PIP) - PBP/ PIP - PIP_LB | 2 3 6 |
Input (PIP) - PBP/ PIP - PIP_LT | 2 3 7 |
Input (PIP) - PBP/ PIP - PIP_RT | 2 3 8 |
Input (PIP) - PIP Size | 2 4 |
Input (PIP) - PIP Size - Small | 2 4 1 |
Input (PIP) - PIP Size - Medium | 2 4 2 |
Input (PIP) - PIP Size - Large | 2 4 3 |
Input (PIP) - Transparency | 2 5 |
Input (PIP) - Transparency | 2 5 1 Slider |
Input (PIP) - Sound Out | 2 6 |
Input (PIP) - Sound Out - Main | 2 6 1 |
Input (PIP) - Sound Out - Sub | 2 6 2 |
Picture | 3 |
Picture - Picture Mode | 3 1 |
Picture - Picture Mode - Custom | 3 1 1 |
Picture - Picture Mode - Vivid | 3 1 2 |
Picture - Picture Mode - HDR Effect | 3 1 3 |
Picture - Picture Mode - Reader | 3 1 4 |
Picture - Picture Mode - Cinema | 3 1 5 |
Picture - Picture Mode - FPS | 3 1 6 |
Picture - Picture Mode - RTS | 3 1 7 |
Picture - Picture Mode - Color Weakness | 3 1 8 |
Picture - Picture Adjust | 3 2 |
Picture - Picture Adjust - Brightness | 3 2 1 |
Picture - Picture Adjust - Brightness | 3 2 1 1 Slider |
Picture - Picture Adjust - Contrast | 3 2 2 |
Picture - Picture Adjust - Contrast | 3 2 2 1 Slider |
Picture - Picture Adjust - Sharpness | 3 2 3 |
Picture - Picture Adjust - Sharpness | 3 2 3 1 Slider |
Picture - Picture Adjust - SUPER RESOLUTION+ | 3 2 4 |
Picture - Picture Adjust - SUPER RESOLUTION+ - High | 3 2 4 1 |
Picture - Picture Adjust - SUPER RESOLUTION+ - Middle | 3 2 4 2 |
Picture - Picture Adjust - SUPER RESOLUTION+ - Low | 3 2 4 3 |
Picture - Picture Adjust - SUPER RESOLUTION+ - Off | 3 2 4 4 |
Picture - Picture Adjust - Black Level | 3 2 5 |
Picture - Picture Adjust - Black Level - High | 3 2 5 1 |
Picture - Picture Adjust - Black Level - Low | 3 2 5 2 |
Picture - Picture Adjust - DFC | 3 2 6 |
Picture - Picture Adjust - DFC - On | 3 2 6 1 |
Picture - Picture Adjust - DFC - Off | 3 2 6 2 |
Picture - Game Adjust | 3 3 |
Picture - Game Adjust - Response Time | 3 3 1 |
Picture - Game Adjust - Response Time - Faster | 3 3 1 1 |
Picture - Game Adjust - Response Time - Fast | 3 3 1 2 |
Picture - Game Adjust - Response Time - Normal | 3 3 1 3 |
Picture - Game Adjust - Response Time - Off | 3 3 1 4 |
Picture - Game Adjust - Black Stabilizer | 3 3 2 |
Picture - Game Adjust - Black Stabilizer | 3 3 2 1 Slider |
Picture - Color Adjust | 3 4 |
Picture - Color Adjust - Gamma | 3 4 1 |
Picture - Color Adjust - Gamma - Mode 1 | 3 4 1 1 |
Picture - Color Adjust - Gamma - Mode 2 | 3 4 1 2 |
Picture - Color Adjust - Gamma - Mode 3 | 3 4 1 3 |
Picture - Color Adjust - Gamma - Mode 4 | 3 4 1 4 |
Picture - Color Adjust - Color Temp | 3 4 2 |
Picture - Color Adjust - Color Temp - Custom | 3 4 2 1 |
Picture - Color Adjust - Color Temp - Warm | 3 4 2 2 |
Picture - Color Adjust - Color Temp - Medium | 3 4 2 3 |
Picture - Color Adjust - Color Temp - Cool | 3 4 2 4 |
Picture - Color Adjust - Red | 3 4 3 |
Picture - Color Adjust - Red | 3 4 3 1 Slider |
Picture - Color Adjust - Green | 3 4 4 |
Picture - Color Adjust - Green | 3 4 4 1 Slider |
Picture - Color Adjust - Blue | 3 4 5 |
Picture - Color Adjust - Blue | 3 4 5 1 Slider |
Picture - Color Adjust - Six Color | 3 4 6 |
Picture - Color Adjust - Six Color - Red Hue | 3 4 6 1 |
Picture - Color Adjust - Six Color - Red Hue | 3 4 6 1 1 Slider |
Picture - Color Adjust - Six Color - Red Saturation | 3 4 6 2 |
Picture - Color Adjust - Six Color - Red Saturation | 3 4 6 2 1 Slider |
Picture - Color Adjust - Six Color - Green Hue | 3 4 6 3 |
Picture - Color Adjust - Six Color - Green Hue | 3 4 6 3 1 Slider |
Picture - Color Adjust - Six Color - Green Saturation | 3 4 6 4 |
Picture - Color Adjust - Six Color - Green Saturation | 3 4 6 4 1 Slider |
Picture - Color Adjust - Six Color - Blue Hue | 3 4 6 5 |
Picture - Color Adjust - Six Color - Blue Hue | 3 4 6 5 1 Slider |
Picture - Color Adjust - Six Color - Blue Saturation | 3 4 6 6 |
Picture - Color Adjust - Six Color - Blue Saturation | 3 4 6 6 1 Slider |
Picture - Color Adjust - Six Color - Cyan Hue | 3 4 6 7 |
Picture - Color Adjust - Six Color - Cyan Hue | 3 4 6 7 1 Slider |
Picture - Color Adjust - Six Color - Cyan Saturation | 3 4 6 8 |
Picture - Color Adjust - Six Color - Cyan Saturation | 3 4 6 8 1 Slider |
Picture - Color Adjust - Six Color - Magenta Hue | 3 4 6 9 |
Picture - Color Adjust - Six Color - Magenta Hue | 3 4 6 9 1 Slider |
Picture - Color Adjust - Six Color - Magenta Saturation | 3 4 6 10 |
Picture - Color Adjust - Six Color - Magenta Saturation | 3 4 6 10 1 Slider |
Picture - Color Adjust - Six Color - Yellow Hue | 3 4 6 11 |
Picture - Color Adjust - Six Color - Yellow Hue | 3 4 6 11 1 Slider |
Picture - Color Adjust - Six Color - Yellow Saturation | 3 4 6 12 |
Picture - Color Adjust - Six Color - Yellow Saturation | 3 4 6 12 1 Slider |
Picture - Picture Reset | 3 5 |
Picture - Picture Reset - Yes | 3 5 1 |
Picture - Picture Reset - No | 3 5 2 |
General | 4 |
General - Language | 4 1 |
General - Language - English | 4 1 1 |
General - Language - German | 4 1 2 |
General - Language - French | 4 1 3 |
General - Language - Spanish | 4 1 4 |
General - Language - Italian | 4 1 5 |
General - Language - Swedish | 4 1 6 |
General - Language - Finnish | 4 1 7 |
General - Language - Portuguese | 4 1 8 |
General - Language - Portuguese (Brazil) | 4 1 9 |
General - Language - Polish | 4 1 10 |
General - Language - Russian | 4 1 11 |
General - Language - Greek | 4 1 12 |
General - Language - Ukrainian | 4 1 13 |
General - Language - Chinese | 4 1 14 |
General - Language - Traditional Chinese | 4 1 15 |
General - Language - Japanese | 4 1 16 |
General - Language - Korean | 4 1 17 |
General - Sound Optimizer | 4 2 |
General - Sound Optimizer - Stand Type | 4 2 1 |
General - Sound Optimizer - Wall Mount Type | 4 2 2 |
General - SMART ENERGY SAVING | 4 3 |
General - SMART ENERGY SAVING - High | 4 3 1 |
General - SMART ENERGY SAVING - Low | 4 3 2 |
General - SMART ENERGY SAVING - Off | 4 3 3 |
General - Set ID | 4 4 |
General - Set ID - Set ID 01 | 4 4 1 |
General - Set ID - Set ID 02 | 4 4 2 |
General - Set ID - Set ID 03 | 4 4 3 |
General - Set ID - Set ID 04 | 4 4 4 |
General - Set ID - Set ID 05 | 4 4 5 |
General - Set ID - Set ID 06 | 4 4 6 |
General - Set ID - Set ID 07 | 4 4 7 |
General - Set ID - Set ID 08 | 4 4 8 |
General - Set ID - Set ID 09 | 4 4 9 |
General - Set ID - Set ID 10 | 4 4 10 |
General - Power LED | 4 5 |
General - Power LED - On | 4 5 1 |
General - Power LED - Off | 4 5 2 |
General - Automatic Standby | 4 6 |
General - Automatic Standby - 8H | 4 6 1 |
General - Automatic Standby - 6H | 4 6 2 |
General - Automatic Standby - 4H | 4 6 3 |
General - Automatic Standby - Off | 4 6 4 |
General - DisplayPort Version | 4 7 |
General - DisplayPort Version - 1.4 | 4 7 1 |
General - DisplayPort Version - 1.2 | 4 7 2 |
General - DisplayPort Version - 1.1 | 4 7 3 |
General - HDMI ULTRA HD Deep Color | 4 8 |
General - HDMI ULTRA HD Deep Color - On | 4 8 1 |
General - HDMI ULTRA HD Deep Color - Off | 4 8 2 |
General - Buzzer | 4 9 |
General - Buzzer - On | 4 9 1 |
General - Buzzer - Off | 4 9 2 |
General - OSD Lock | 4 10 |
General - OSD Lock - On | 4 10 1 |
General - OSD Lock - Off | 4 10 2 |
General - OSD Size | 4 11 |
General - OSD Size - Small | 4 11 1 |
General - OSD Size - Large | 4 11 2 |
General - Information | 4 12 |
General - Information | 4 12 1 |
General - Reset to Initial Setting | 4 13 |
General - Reset to Initial Setting - Yes | 4 13 1 |
General - Reset to Initial Setting - No | 4 13 2 |
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
Download LG 43UN700, 43UN700P, 43BN70U, 43BN70UP, 43UN700T - LED Monitor Manual
Advertisement
Need help?
Do you have a question about the 43UN700 and is the answer not in the manual?
Questions and answers
