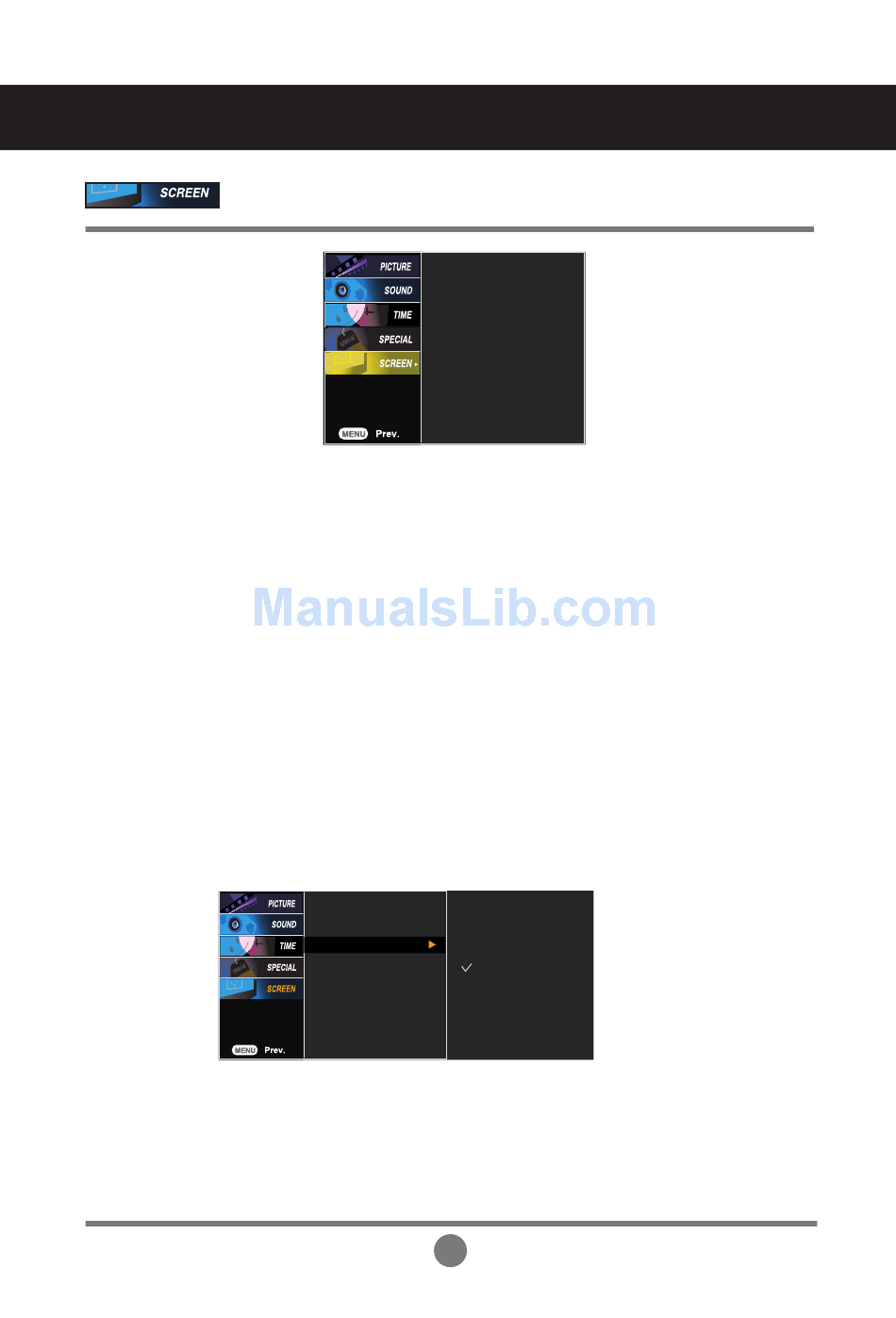

Selecting and Adjusting the Screen

Adjusting Screen CLOCK/PHASE and Position

This button is for the automatic adjustment of the screen position, clock and phase.
Auto-config.
This function is suitable for analogue signal input only.
(RGB PC
input only)
If the picture isn't clear after auto adjustment and characters are still trembling, adjust the
Manual-
picture phase manually.
config.
* Phase, Clock function are not available in RGB DTV, Component, HDMI/DVI DTV.)
Clock
Phase
H-Position
V-Position
For more improved or better picture quality, select the same mode corresponding to
XGA Mode
(RGB-PC
computer resolution.
only).
Auto config.
Manual config.
XGA Mode
ARC
Reset
To minimize any vertical bars or stripes visible on the screen
background. The horizontal screen size will also change. This function
is suitable for analogue signal input only
To adjust the focus of the display. This item allows you to remove any
horizontal noise and clear or sharpen the image of characters. This
function is suitable for analogue signal input only.
Moving the screen position horizontally.
Moving the screen position vertically.
Auto config.
Manual config.
1024x768
XGA Mode
1280x768
ARC
1360x768
Reset
1366x768
