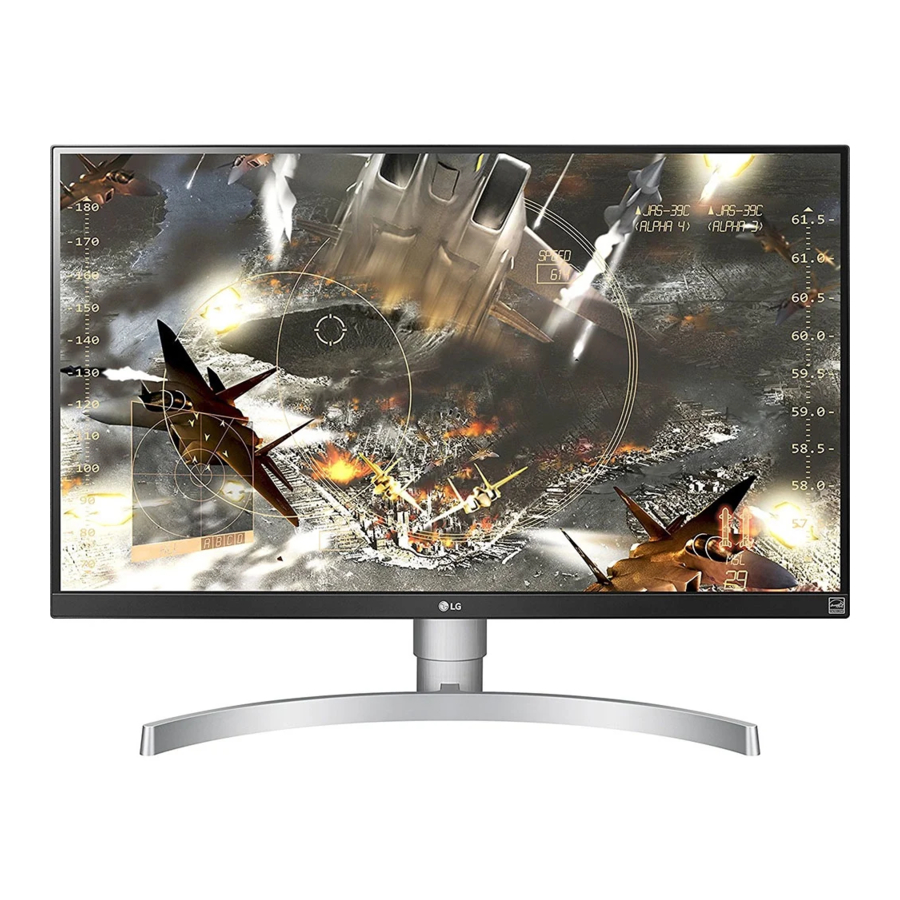

LG 27UK650, 27UK600 Manual

ASSEMBLING AND PREPARING

Product Components

Please check whether all the components are included in the box before using the product. If there are missing components, contact the retail store where you purchased the product. Note that the product and components may look different from those shown here.

• Always use genuine components to ensure safety and product performance.
• The product warranty will not cover damage or injury caused by the use of counterfeit components.
• It is recommend that use the supplied components.
• If you use generic cables not certified by LG, the screen may not display or there may be image noises.

NOTE

• Note that the components may look different from those shown here.
• Without prior notice, all information and specifications in this manual are subject to change to improve the performance of the product.
• To purchase optional accessories, visit an electronics store or online shopping site or contact the retail store where you purchased the product.

Supported Drivers and Software

You can download and install the latest version from the LGE website (www.lg.com).

Component and Button Description

How to Use the Joystick Button
You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your finger.

Basic Functions

		Power on	Press the joystick button once with your finger to turn on the monitor.
		Power off	Press and hold the joystick button once with your finger to turn off the monitor.
	◄/►	Volume Control	You can control the volume by moving the joystick button left/right.

NOTE

• The joystick button is located at the bottom of the monitor.

Input Connector

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or damaged and to ensure safe transportation regardless of its shape or size.

• It is advisable to place the monitor in the original box or packing material before attempting to move it.
• Before moving or lifting the monitor, disconnect the power cord and all cables.
• Hold the top and bottom of the monitor frame firmly. Do not hold the screen itself.

• When holding the monitor, the screen should face away from you to prevent it being scratched.

• When moving the monitor, avoid any strong shock or vibrations to the product.
• When moving the monitor, keep it upright, never turn the monitor on its side or tilt it sideways.

• As far as possible, avoid touching the monitor screen. This may result in damage to the screen or some of the pixels used to create images.

• If you use the monitor panel without the stand base, its joystick button may cause the monitor to become unstable and fall, resulting in damage to the monitor or human injury. In addition, this may cause the joystick button to malfunction.


Installing the Monitor

Assembling the stand base
27UK650

1. 1 Please put a soft cloth on a low table or box to protect the screen of the monitor.
   Please put the monitor on the soft cloth with the screen facing down.


2. 1. Assemble the Head and Stand body.

   2. Assemble the Stand body and Stand base.

3. Turn the screw clockwise to secure the stand base.


• To avoid injury to the fingers and foot when Assembly Stand Body and Base, should hold Base when assembly stand body and base.

NOTE

• Press the stand until the button reaches the top.


Assembling the stand base
27UK600

1. Place the screen face down.

   • To protect the screen from scratches, cover the surface with a soft cloth.

2. Check the direction of the stand body (front, back) and then mount the stand body onto the stand hinge.

3. 1. Attach theStand Base to Stand Body.
   2. Tighten the screw to the right.

4. Attach the screw cover.


Applying excessive force when tightening the screws may cause damage to the monitor. Damage caused in this way will not be covered by the product warranty.

It may hurt your foot off the stand, so be careful.
NOTE

• You can disassemble the stand in the reverse order of the assembly.

• Illustrations in this document represent typical procedures, so they may look different from the actual product.
• Do not carry the monitor upside down by just holding the stand base. This may cause the monitor to fall off the stand and could result in personal injury.
• When lifting or moving the monitor, do not touch the monitor screen. The force applied to the monitor screen may cause damage to it.
• Do not apply foreign substances (oils, lubricants, etc.) to the screw parts when assembling the product. (Doing so may damage the product.)
• Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this way will not be covered by the product warranty.

Using the cable holder
Arrange the cables using the cable holder as shown in the illustration.

Installing onto a table
Lift the monitor and place it on the table in an upright position.
Place at least 100 mm away from the wall to ensure sufficient ventilation.

27UK650

27UK600

Adjusting the angle

1. Place the monitor in an upright position, mounted on the stand base.
2. Adjust the angle of the screen. The angle of the screen can be adjusted forwards or backwards for a comfortable viewing experience.

27UK650

27UK600

• To avoid injury to the fingers when adjusting the screen, do not hold the lower part of the monitor's frame as illustrated below.

• Be careful not to touch or press the screen area when adjusting the angle of the monitor.


Adjusting the Stand Height
27UK650

1. Handle the monitor with both hands for safety.

2. The height can be adjusted up to110.0 mm.


27UK650

• Do not put your fingers or hand between the screen and the base (chassis) when adjusting the screen's height.

Pivot Feature
27UK650
The pivot feature allows the monitor to rotate 90° clockwise.

• To avoid scratching the stand base, make sure that when rotating the monitor using the pivot feature, the stand does not make contact with the monitor.

1. Raise the monitor to the maximum height.

2. Adjust the angle of the monitor in the direction of the arrow as shown in the figure.

3. Rotate the monitor clockwise as shown in the figure.

4. Complete the installation by rotating the monitor 90° as shown below.


NOTE

• Auto Pivot feature of the display is not supported.
• The screen can be rotated easily using the screen pivot shortcut key provided with your Windows operating system. Note that some Windows versions and some graphics card drivers may use different settings for the screen pivot key or may not support the pivot key at all.

• Take care when rotating the monitor if the cable is connected.
• To avoid injury when rotating the display, do not place your fingers between the display and the stand base.
  27UK650


Using the Kensington lock
The Kensington security system connector is located at the back of the Monitor set.
For more information on installation and usage, refer to the Kensington lock user manual or visit the website at http://www.kensington.com.
Connect the Kensington security system cable between the Monitor set and a table.

NOTE

• Use of the Kensington lock is optional. The accessories can be purchased at your local electronics store.

NOTE

• The left or right side of the monitor head can be slightly rotated up or down (up to 3°). Adjust the horizontal level of the monitor head.


Installing the wall mount plate
This monitor supports the specification of the standard wall mount plate or compatible device.

1. Place the screen face down. To protect the screen from scratches, cover the surface with a soft cloth.
2. Place the wall mount plate onto the monitor and align it with the screw holes.
3. Tighten the four screws to fix the plate to the monitor using a screwdriver.

NOTE

• The wall mount plate is sold separately.
• For more information on installation, refer to the wall mount plate's installation guide.
• Be careful not to use excessive force when mounting the wall mount plate, as this can damage the monitor's screen.

Installing to a wall
Install the monitor at least 100 mm away from the wall and leave about 100 mm of space at each side of the monitor to ensure sufficient ventilation. Detailed installation instructions can be obtained from your local retail store. Please refer to the manual to install and set up a tilting wall mounting bracket.

To install the monitor to a wall, attach a wall mounting bracket (optional) to the back of the monitor. Make sure that the wall mounting bracket is securely fixed to the monitor and to the wall.

1. If you use screw longer than standard, the monitor might be damaged internally.
2. If you use improper screw, the product might be damaged and drop from mounted position.
   In this case, LG Electronics is not responsible for it.

27UK650
27UK600

• Wall Mount (A x B)


• Unplug the power cord before moving or installing the monitor to avoid electric shocks.
• Installing the monitor on the ceiling or on a slanted wall may result in the monitor falling off, which could lead to injury. Please use the genuine LG wall mounting bracket. For more information, contact your local retail store or a qualified installer.
• Applying excessive force when fastening screws may cause damage to the monitor. Damage caused in this way will not be covered by the product warranty.
• Use the wall mounting bracket and screws that conform to the VESA standard. Damage caused by the use or misuse of inappropriate components will not be covered by the product warranty.
• Screw length from outer surface of back cover should be under 8mm.


NOTE

• Use the screws specified by the VESA standard.
• The wall mount kit includes the installation guide and all necessary parts.
• The wall mounting bracket is optional. The accessories can be purchased at your local retail store.
• The length of the screw may differ for each wall mounting bracket. Ensure the correct length screw is used.
• For more information, please refer to the user manual for the wall mounting bracket.

USING THE MONITOR

Connecting to a PC

• This monitor supports the *Plug and Play feature. *Plug and Play: A feature that allows you to add a device to your computer without having to reconfigure anything or install any manual drivers.

HDMI connection
Transmits the digital video and audio signals from your PC and A/V devices to the monitor. Connect your PC and AV device to the monitor with the HDMI cable as illustrated below.
Press the menu button and then select the input option from the input menu.

NOTE

• If you use HDMI PC, it can cause compatibility problem.
• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.
• Recommended HDMI cable types
  • High-Speed HDMI^®/^TM Cable
  • High-Speed HDMI^®/^TM Cable with Ethernet

DisplayPort connection
Transmits the digital video and audio signals from your PC to the monitor. Connect your PC to the monitor using the Displayport cable as illustrated below. Press the menu button and then select the input option from the input menu.

NOTE

• There may be no video or audio output depending on the DP version of the PC.
• If you use generic cables not certified by LG, the screen may not display or there may be image noises.
• For using Mini DP to DP (Mini DisplayPort to DisplayPort) cable, it is recommended that you use DisplayPort 1.2 cable.

Connecting to External Devices

Connecting Headphones
Connect peripherals to the monitor via the headphones port. Connect as illustrated.

NOTE

• Peripheral devices are sold separately.
• If you use angled earphones, it may cause a problem with connecting another external device to the monitor. Therefore, it is recommended to use straight earphones.

• Depending on the audio settings of the PC and external device, headphones and speaker functions may be limited.

USER SETTINGS

Activating the Main Menu

1. Press the joystick button on the bottom of the monitor.
2. Move the joystick up/down (▲/▼) and left/right(◄/►) to set the options.
3. Press the joystick button once more to exit the main menu.

Button	Menu Status		Description
	Main menu disabled		Enables the main menu.
	Main menu enabled		Exits the main menu. (Holding down the button to turn off the monitor. You can turn off the monitor this way at any time, including when the OSD is on.)
	◄	Main menu disabled	Adjusts the monitor volume level.
		Main menu enabled	Enters the Input feature.
	►	Main menu disabled	Adjusts the monitor volume level.
		Main menu enabled	Enters the Settings features.
	▲	Main menu disabled	Displays information on the current input.
		Main menu enabled	Turns off the monitor.
	▼	Main menu disabled	Displays information on the current input.
		Main menu enabled	Enters the Game features.

Main Menu Features

User Settings

Menu Settings

1. To view the settings menu, press the joystick button at the bottom of the monitor and then enter thesettings.
2. Configure the options by moving the joystick up/down/left/right.
3. To return to the upper settings or set other settings items, move the joystick to◄or press ().
4. If you want to exit the settings menu, move the joystick to◄until you exit.
   • When you enter the menu, instructions on how to use the button will appear in the bottom right corner of the screen.


• Your monitor's OSD (On Screen Display) may differ slightly from that shown in this manual.

Each option is described below.

Settings > Quick Settings	Description
Brightness	Adjusts the color contrast and brightness of the screen.
Contrast
Volume	Adjusts the volume level. NOTE You can adjust Mute / Unmute by moving the joystick button to▼in the Volume menu.
Color Temp	Custom		The user can adjust it to red, green, or blue by customization.
	Warm		Sets the screen color to a reddish tone.
	Medium		Sets the screen color between a red and blue tone.
	Cool		Sets the screen color to a bluish tone.
Settings > Input	Description
Input List	Selects the input mode.
Aspect Ratio	Adjusts the aspect ratio of the screen.
	Full Wide	Displays the video in wide-screen, regardless of the video signal input.
	Original	Displays video according to the aspect ratio of the video signal input.
	1:1	The aspect ratio is not adjusted from the original.
	NOTE The display may look the same for Full Wide, Original, and 1:1 options at the recommended resolution (3840 x 2160). There is no 1:1 menu on FreeSync Mode. ( Go to Picture → Game Adjust → FreeSync, to set from FreeSync Basic or Extended to Off)

Picture Mode on SDR(Non-HDR) signal.

NOTE

• If the picture mode is changed, the screen may flicker or the resolution of your PC screen may be affected.

Picture Mode on HDR signal.

NOTE

• HDR content may not be operated properly depending on the Windows10 OS setting. Please check the HDR On / Off setting of Windows.
• When the HDR function is turned on, the characters or picture quality may be poor according to Graphic card performance.
• While the HDR function is on, screen flickering or cracking may occur when changing the monitor input or power on/off according to Graphic card performance.

Picture Adjust	Brightness	Adjusts the brightness of the screen.
	Contrast	Adjusts the contrast of the screen.
	Sharpness	Adjusts the sharpness of the screen.
	SUPER RESOLUTION+	High	Optimized picture quality is displayed when a user wants crystal clear images. It is effective for high quality video or game.
		Middle	The optimized picture quality is displayed when a user wants images between low and high modes for comfortable viewing. It is effective for UCC or SD video.
		Low	The optimized picture quality is displayed when a user wants smooth and natural images. It is effective for slow-moving pictures or still images.
		Off	Select this option for everyday viewing. SUPER RESOLUTION+ is turned off in this mode.
		NOTE Because this is a function to increase the sharpness of low resolution pictures, it is not recommended to use the function for normal text or for desktop icons. Doing so may result in unnecessarily high sharpness.
	Black Level	Sets the offset level (for HDMI only). Offset: as a reference for a video signal, this is the darkest color the monitor can display.
		High	Keeps the current contrast ratio of the screen.
		Low	Lowers the black levels and raises the white levels from the current contrast ratio of the screen.
	HDMI ULTRA HD	Provides sharper images when connected to a device supporting ULTRA HD Deep Color.
	Deep Color	4K@60 Hz Support Format (HDMI ULTRA HD Deep Color On)
		Resolution		Frame rate (Hz)	Color Depth / Chroma Sampling
					8 bit	10 bit
		3840 x 2160		59.94 60.00	YCbCr 4:2:0
					YCbCr 4:2:2
					YCbCr 4:4:4	-
					RGB	-
		4K@30 Hz Support Format (HDMI ULTRA HD Deep Color Off)
		Resolution		Frame rate (Hz)	Color Depth / Chroma Sampling
					8 bit	10 bit
		3840 x 2160		29.97 30.00	YCbCr 4:2:2
					YCbCr 4:4:4	-
					RGB	-
		NOTE If the connected device does not support ULTRA HD Deep Color, the feature may not work properly. If a problem occurs, set the HDMI ULTRA HD Deep Color option to Off. HDMI ULTRA HD Deep Color option must be set for each HDMI port (HDMI IN 1, HDMI IN 2) separately. HDMI ULTRA HD Deep Color option can be changed with SET OSD Menu. (Settings - Picture - Picture Adjust - HDMI ULTRA HD Deep Color Off / On)
	DFC	On	Adjusts the brightness automatically according to the screen.
		Off	Disables the DFC feature.

Settings > General	Description
Language	Sets the menu screen to the desired language.
SMART ENERGY SAVING	High	Saves energy using the high-efficiency SMART ENERGY SAVING feature.
	Low	Saves energy using the low-efficiency SMART ENERGY SAVING feature.
	Off	Disables the SMART ENERGY SAVING feature.
Power LED	Turns the power LED on the bottom of the monitor on or off.
	On	The power LED turns on automatically.
	Off	The power LED turns off.
Automatic Standby	Feature that automatically turns off the monitor when there is no movement on the screen for a period of time. You can set a timer for the auto-off function. (Off, 4 H, 6 H, and 8 H)
DisplayPort 1.2	Enables or disables DisplayPort 1.2. NOTE Be sure to configure this option according to the DisplayPort version supported by your graphics card. Set this option to Disable if your graphics card does not support DisplayPort 1.2.
Buzzer	This feature lets you set the sound generated from Buzzer when your monitor powers on.
	On	Enables your monitor's Buzzer.
	Off	Disables your monitor's Buzzer.
OSD Lock	This feature disables the configuration and adjustment of menus.
	On	Enables OSD Lock.
	Off	Disables OSD Lock.
	NOTE All features are disabled except Brightness, Contrast, Volume, Input List, Aspect Ratio, OSD Lock and Information.
OSD Size	User can select OSD Size to Large or Small.
Information	The display information will be shown the Model, Serial Number, Total Power On Time, Resolution.
Reset	Do you want to reset your settings?
	No	Cancel the select.
	Yes	Returns to the default settings.

NOTE

• Saving Data depends on the Panel. So, these values may be different from each panel and/or panel vendor. If you select the option of SMART ENERGY SAVING is High or Low, monitor luminance become lower or higher depend on source.

TROUBLESHOOTING

NOTE

• Vertical frequency In order to display an image, the screen must be refreshed dozens of times per second, like a fluorescent lamp. The number of times the screen is refreshed per second is called vertical frequency, or refresh rate, and is represented by Hz.
• Horizontal frequency The time it takes to display one horizontal line is called the horizontal cycle. If 1 is divided by the horizontal interval, the result is the number of horizontal lines displayed per second. This is called horizontal frequency and is represented by kHz.
• LED can be lighted with Set OSD Menu.
  Settings – General – Power LED – On

NOTE

• Check if the graphics card's resolution or frequency is within the range allowed by the monitor and set it to the recommended (optimal) resolution inControl Panel > Display > settings.
• Not setting the graphics card to the recommended (optimal) resolution may result in blurred text, a dimmed screen, a truncated display area, or misalignment of the display.
• The setting methods may be different depending on the computer or operating system, and some resolutions may not be available depending on the performance of the graphics card. If this is the case, contact the manufacturer of the computer or graphics card for assistance.
• Some graphics cards may not support 3840 x 2160 resolution. If the resolution cannot be displayed, contact the manufacturer of your graphics card.

SPECIFICATIONS

27UK650

LCD Screen	Type	TFT (Thin Film Transistor) LCD (Liquid Crystal Display) Screen
	Sub Pixel Pitch	0.1554 mm x 0.1554 mm
Resolution	Maximum Resolution	3840 x 2160 @ 60 Hz
	Recommended Resolution	3840 x 2160 @ 60 Hz
Video Signal	Horizontal Frequency	30 kHz to 135 kHz
	Vertical Frequency	56 Hz to 61 Hz
Input Connector	HDMI IN1, HDMI IN2, DP(DisplayPort) IN, H/P
Power input	19 V 2.4 A
Power consumption (Typ.)	On mode: 45 W Typ. (Outgoing condition)* Sleep Mode ≤ 0.5 W ** Off Mode ≤ 0.3 W
AC/DC adaptor	Type DA-48F19, Asian Power Devices Inc. Type ADS-48FSK-19 19048EPCU-1, SHENZHEN HONOR ELECTRONIC Type ADS-48FSK-19 19048EPK-1, SHENZHEN HONOR ELECTRONIC Type ADS-48FSK-19 19048EPG-1, SHENZHEN HONOR ELECTRONIC Output: 19 V 2.53 A
Environmental Conditions	Operating Condition	Temperature: 0°C to 40°C; Humidity: < 80%
	Storing Condition	Temperature: -20°C to 60°C; Humidity: < 85%
Dimension	Monitor Size (Width x Height x Depth)
	With Stand	613.1 mm x 567.3 mm x 230 mm
	Without Stand	613.1 mm x 364.4 mm x 44.6 mm
Weight (Without Packaging)	With Stand	6.2 kg
	Without Stand	4.6 kg

The specifications are subject to change without notice.
The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with LGE test standard (Full White pattern, Maximum resolution).
** The monitor goes to the Sleep Mode in a couple of minutes(Max 5 minutes).
*** India use only the following adapter (model: DA-65G19)

27UK600

LCD Screen	Type	TFT (Thin Film Transistor) LCD (Liquid Crystal Display) Screen
	Sub Pixel Pitch	0.1554 mm x 0.1554 mm
Resolution	Maximum Resolution	3840 x 2160 @ 60 Hz
	Recommended Resolution	3840 x 2160 @ 60 Hz
Video Signal	Horizontal Frequency	30 kHz to 135 kHz
	Vertical Frequency	56 Hz to 61 Hz
Input Connector	HDMI IN1, HDMI IN2, DP(DisplayPort) IN, H/P
Power input	19 V 2.4 A
Power consumption (Typ.)	On mode: 45 W Typ. (Outgoing condition)* Sleep Mode ≤ 0.5 W ** Off Mode ≤ 0.3 W
AC/DC adaptor	Type DA-48F19, Asian Power Devices Inc. Type ADS-48FSK-19 19048EPCU-1, SHENZHEN HONOR ELECTRONIC Type ADS-48FSK-19 19048EPK-1, SHENZHEN HONOR ELECTRONIC Type ADS-48FSK-19 19048EPG-1, SHENZHEN HONOR ELECTRONIC Output: 19 V 2.53 A
Environmental Conditions	Operating Condition	Temperature: 0°C to 40°C (32°F to 104°F); Humidity: < 80%
	Storing Condition	Temperature: -20°C to 60°C (-4°F to 140°F); Humidity: < 85%
Dimension	Monitor Size (Width x Height x Depth)
	With Stand	613.1 mm x 455.2 mm x 209.4 mm
	Without Stand	613.1 mm x 364.4 mm x 73.0 mm
Weight (Without Packaging)	With Stand	5.2 kg
	Without Stand	4.7 kg

The specifications are subject to change without notice.
The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with LGE test standard (Full White pattern, Maximum resolution). ** The monitor goes to the Sleep Mode in a couple of minutes(Max 5 minutes).

Factory Support Mode (Preset Mode, PC) HDMI

DisplayPort

HDMI Timing (Video)

Power LED
