Connecting to External Devices

When watching VCR / DVD

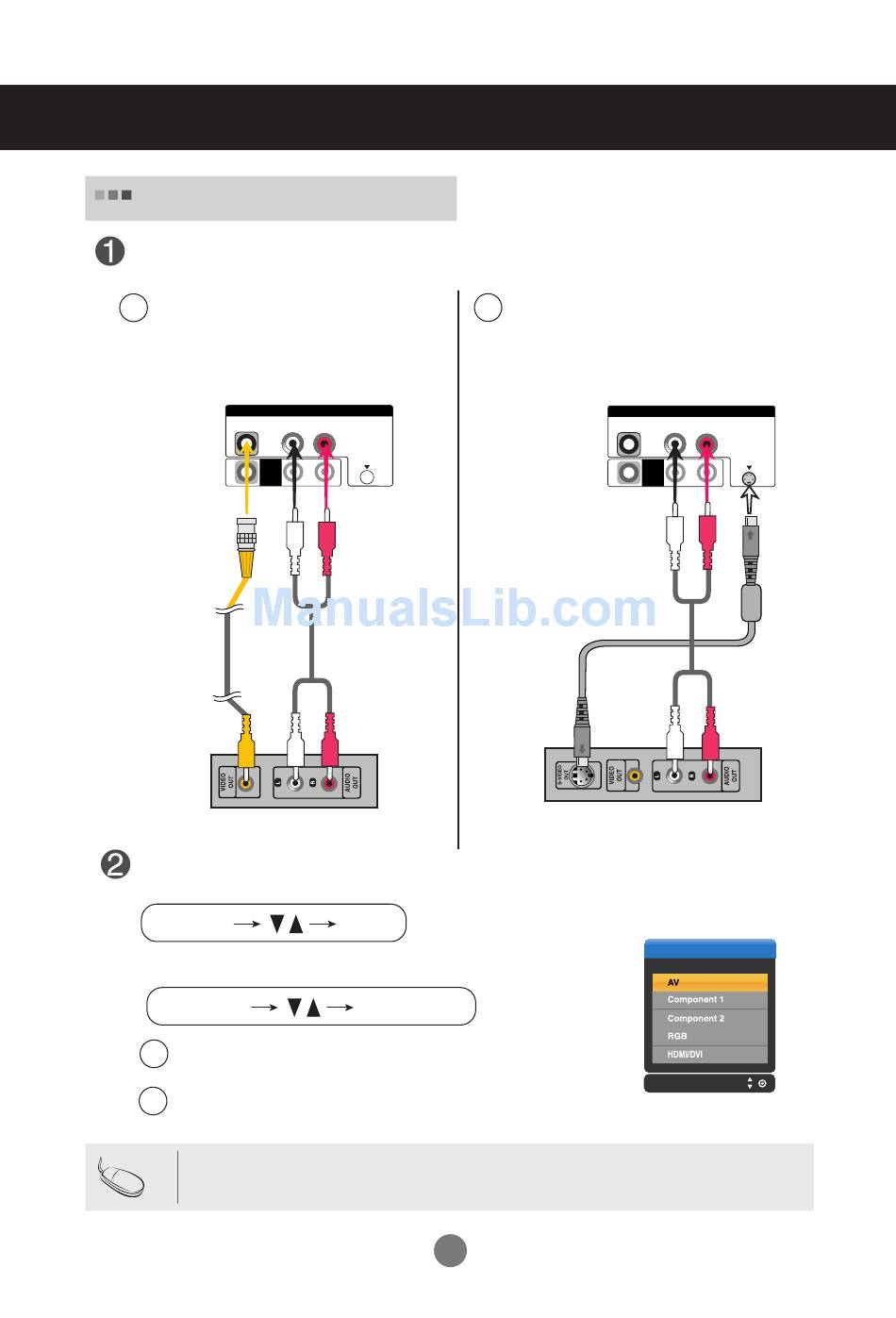

Connect the video cable as shown in the below figure and then connect the power
cord (See page 4).
When connecting with a BNC cable.
A
Connect the input terminal with a
proper color match.
Product
VIDEO
AV
OUT
BNC Cable
(not included)
VCR/DVD Receiver
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
INPUT
Or, press the SOURCE button on the bottom of the product.
SOURCE
A
When connecting with an BNC cable.
• Select AV.
When connecting with an S-Video cable.
B
• Select AV.
Note
• When the BNC cable is connected simultaneously with S-Video cable, S-Video input has a priority.
AV IN
L-AUDIO-R
S-VIDEO
Audio Cable
(not included)
SET
AUTO/SET
7
When connecting with a S-Video cable.
B
Connect to the S-Video input terminal to
watch high image quality movies.
Product
VIDEO
AV
OUT
Audio Cable
(not included)
VCR/DVD Receiver
AV IN
L-AUDIO-R
S-VIDEO
S-Video Cable
(not included)
