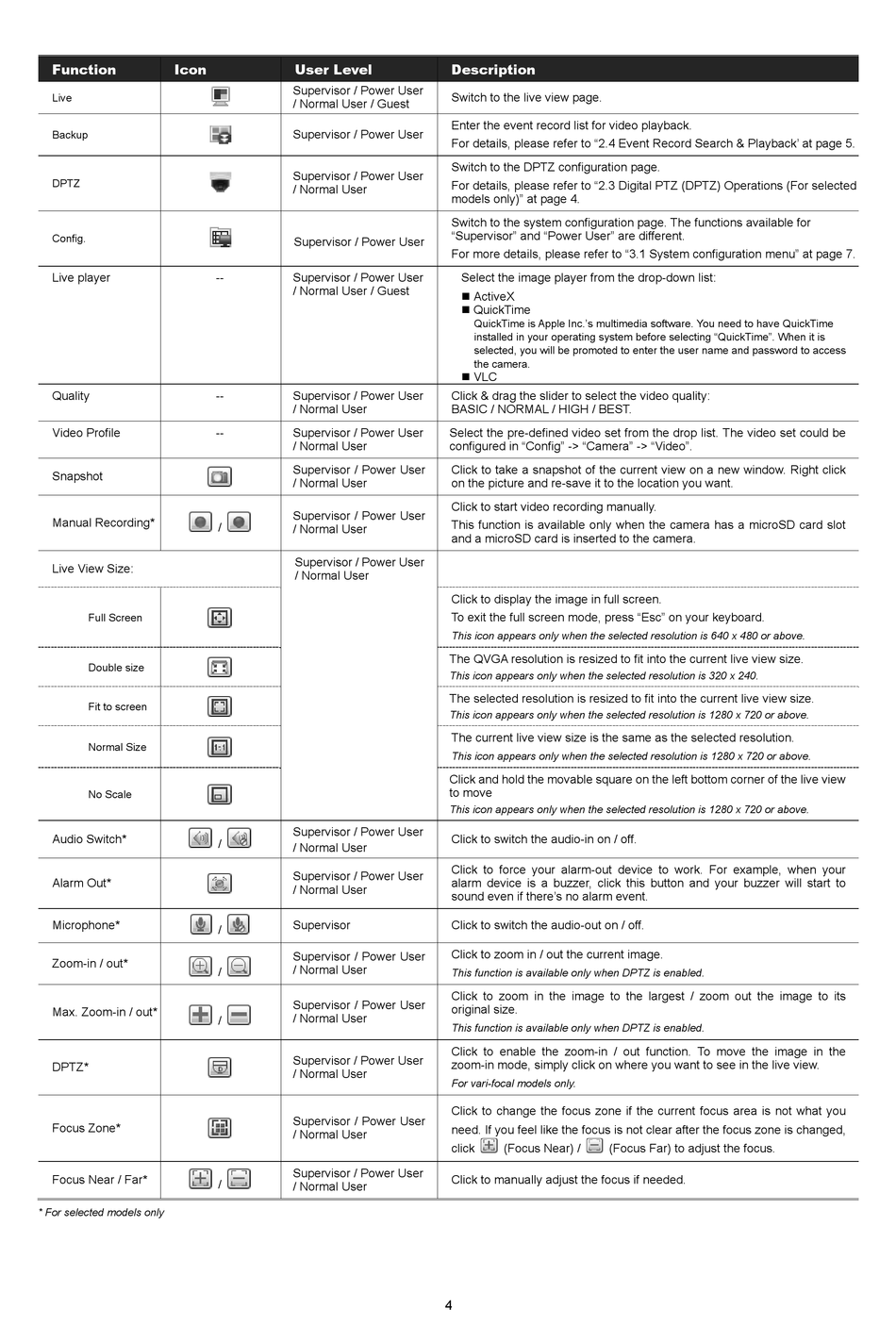

Function
Icon
Live
Backup
DPTZ
Config.
Live player
Quality
Video Profile
Snapshot
Manual Recording*
Live View Size:
Full Screen
Double size
Fit to screen
Normal Size
No Scale
Audio Switch*
Alarm Out*
Microphone*
Zoom-in / out*
Max. Zoom-in / out*
DPTZ*
Focus Zone*
Focus Near / Far*
* For selected models only
User Level
Supervisor / Power User
/ Normal User / Guest
Supervisor / Power User
Supervisor / Power User
/ Normal User
Supervisor / Power User
--
Supervisor / Power User
/ Normal User / Guest
--
Supervisor / Power User
/ Normal User
--
Supervisor / Power User
/ Normal User
Supervisor / Power User
/ Normal User
Supervisor / Power User
/
/ Normal User
Supervisor / Power User
/ Normal User
Supervisor / Power User
/
/ Normal User
Supervisor / Power User
/ Normal User
Supervisor
/
Supervisor / Power User
/ Normal User
/
Supervisor / Power User
/ Normal User
/
Supervisor / Power User
/ Normal User
Supervisor / Power User
/ Normal User
Supervisor / Power User
/
/ Normal User
Description
Switch to the live view page.
Enter the event record list for video playback.
For details, please refer to "2.4 Event Record Search & Playback' at page 5.
Switch to the DPTZ configuration page.
For details, please refer to "2.3 Digital PTZ (DPTZ) Operations (For selected
models only)" at page 4.
Switch to the system configuration page. The functions available for
"Supervisor" and "Power User" are different.
For more details, please refer to "3.1 System configuration menu" at page 7.
Select the image player from the drop-down list:
ActiveX
QuickTime
QuickTime is Apple Inc.'s multimedia software. You need to have QuickTime
installed in your operating system before selecting "QuickTime". When it is
selected, you will be promoted to enter the user name and password to access
the camera.
VLC
Click & drag the slider to select the video quality:
BASIC / NORMAL / HIGH / BEST.
Select the pre-defined video set from the drop list. The video set could be
configured in "Config" -> "Camera" -> "Video".
Click to take a snapshot of the current view on a new window. Right click
on the picture and re-save it to the location you want.
Click to start video recording manually.
This function is available only when the camera has a microSD card slot
and a microSD card is inserted to the camera.
Click to display the image in full screen.
To exit the full screen mode, press "Esc" on your keyboard.
This icon appears only when the selected resolution is 640 x 480 or above.
The QVGA resolution is resized to fit into the current live view size.
This icon appears only when the selected resolution is 320 x 240.
The selected resolution is resized to fit into the current live view size.
This icon appears only when the selected resolution is 1280 x 720 or above.
The current live view size is the same as the selected resolution.
This icon appears only when the selected resolution is 1280 x 720 or above.
Click and hold the movable square on the left bottom corner of the live view
to move
This icon appears only when the selected resolution is 1280 x 720 or above.
Click to switch the audio-in on / off.
Click to force your alarm-out device to work. For example, when your
alarm device is a buzzer, click this button and your buzzer will start to
sound even if there's no alarm event.
Click to switch the audio-out on / off.
Click to zoom in / out the current image.
This function is available only when DPTZ is enabled.
Click to zoom in the image to the largest / zoom out the image to its
original size.
This function is available only when DPTZ is enabled.
Click to enable the zoom-in / out function. To move the image in the
zoom-in mode, simply click on where you want to see in the live view.
For vari-focal models only.
Click to change the focus zone if the current focus area is not what you
need. If you feel like the focus is not clear after the focus zone is changed,
click
(Focus Near) /
(Focus Far) to adjust the focus.
Click to manually adjust the focus if needed.
4
