Item Description
Day and Night This function is used to configure the day and night mode: The options available depend on the model you have.

Day

Night


Time
selected time (yellow) will be in the day mode, and the unselected time will be in the night mode.

Sensor

Digital Input N.O.
triggered.

Digital Input N.C.
triggered.
Defog Select ON or Auto to enable the defog function in poor weather conditions such as fog, smog or smoke. The captured
image can be improved.
Angle of view* This function is used to slightly calibrate the viewing angle when the focal length and focus adjustment is completed. Select
Down if your camera lens is facing down; select Up if your camera lens is facing up.
*Selected models only

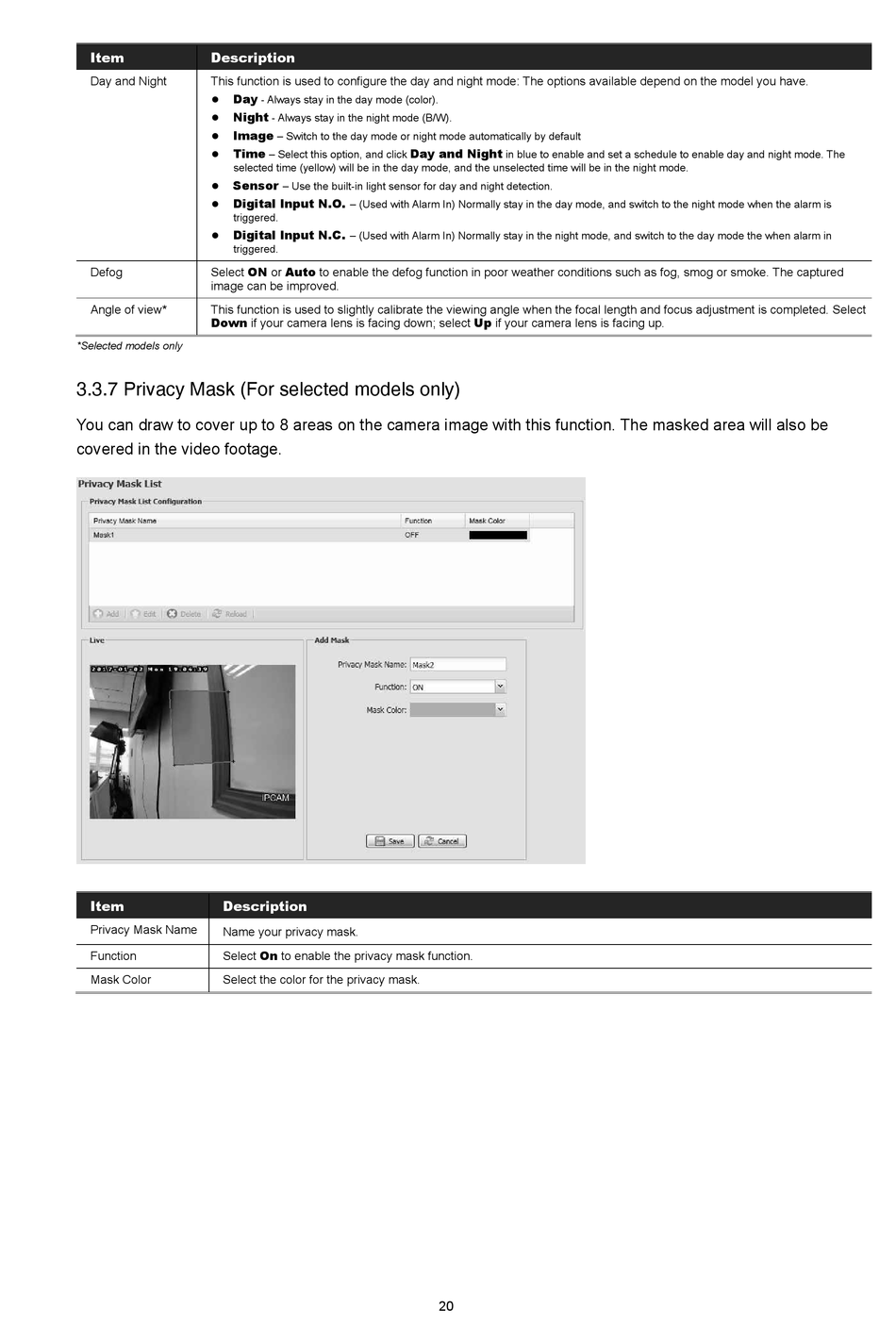

3.3.7 Privacy Mask (For selected models only)

You can draw to cover up to 8 areas on the camera image with this function. The masked area will also be
covered in the video footage.
Item Description
Privacy Mask Name
Name your privacy mask.
Function Select On to enable the privacy mask function.
Mask Color Select the color for the privacy mask.
- Always stay in the day mode (color).
- Always stay in the night mode (B/W).
– Switch to the day mode or night mode automatically by default
Day and Night
– Select this option, and click
– Use the built-in light sensor for day and night detection.
– (Used with Alarm In) Normally stay in the day mode, and switch to the night mode when the alarm is
– (Used with Alarm In) Normally stay in the night mode, and switch to the day mode the when alarm in
in blue to enable and set a schedule to enable day and night mode. The
