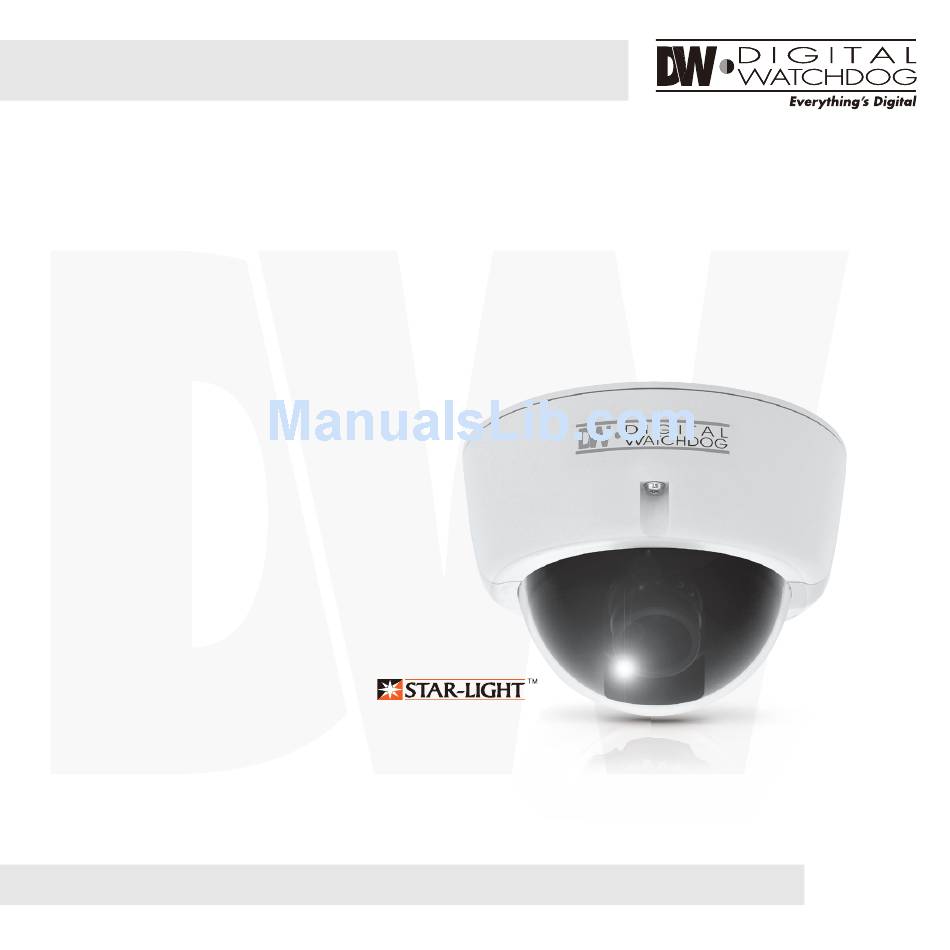

- Page 1 Indoor Dome Camera DWC-D1363D DWC-D1363D922 ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 07132012...
- Page 2 PRECAUTIONS Do not open or modify. Do not open the case except during maintenence and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Features Parts and Descriptions Dimensions Installation Inside the Box Mount Installation Instructions Connecting to Monitors Adjusting the Camera Lens Adjusting the 3-Axis Gimbal Module OSD Menu 13-24 Troubleshooting Warranty Information 26-27 Specifications 28-29... - Page 4 FEATURES* 1/3” CCD 620 TV Lines (B&W), 600 TV Lines (Color) 3.3~12mm Varifocal Auto Iris Lens [DWC-D1363D Only] 9~22mm Varifocal Auto Iris Lens [DWC-D1363D922 Only] Electronic Day and Night Smart DNR (Digital Noise Reduction) DRC (Dynamic Range Compressor) Star-Light (Super Low Light Technology) HME (Highlight Masking Exposure) Programmable Privacy Zones &...
- Page 5 PARTS & DESCRIPTION* Lens Power Input Connector (12VDC/24VAC) Primary Video-BNC Output Connector Bottom Case Mounting Screws Outer Dome Cover Assembly Screws...
-
Page 6: Dimensions
DIMENSIONS IN MILLIMETERS (IN)* 88.0(3.46”) 7.0(0.28”) 5.0(0.2”) 46.5 (1.83”) 123.8(4.9”) 82.5(3.25”) -
Page 7: Inside The Box
INSIDE THE BOX* Included with D1 Indoor Dome Camera User Manual Miniature TORX Driver Mounting Template L-Key 2 Machine Screw and 2 Dry Wall Anchors Secondary Video-BNC Cable... -
Page 8: Camera Installation
CAMERA INSTALLATION* Cut a hole in the ceiling for Drill holes into the drywall Pull wires through and routing the cables. Use your and insert the drywall make connections. mounting template to mark mounts into the holes. the screw holes. Mount and secure the Position the lens and Assemble the outer dome... -
Page 9: Wall Mount Installation
WALL MOUNT INSTALLATION* Check to see all parts are Use the mount to mark the Secure the wall mount to the in the box. pilot holes are required. Drill wall using the mounting holes into the drywall and screws. insert the drywall mounts. Attach the base of the camera Position the lens and Assemble the outer dome... -
Page 10: Connecting To Monitors
CONNECTING TO MONITORS* DC12V / AC24V Video Output BNC Cable Main Monitor... -
Page 11: Adjusting The Camera Lens
ADJUSTING THE CAMERA LENS* Focus Handle Zoom Handle Loosen the zoom and focus handles by rotating them counter-clockwise. Adjust the field of view by moving the handle to the RIGHT (tele) to zoom in or to the LEFT (wide) to zoom out. AFTER the desired zoom position is established, adjust the focus the same way as described above. -
Page 12: Adjusting The 3-Axis Gimbal
ADJUSTING THE 3-AXIS GIMBAL* 60.0° Tilt 360.0° Pan... -
Page 13: Module Osd Menu
MODULE OSD MENU* EXPOSURE COLOR DAY & NIGHT FUNCTION LENS WB MODE D&N MODE MIRROR MANUAL / DC AWC / ATW / MANUAL / AUTO / COLOR / B&W MIRROR / OFF BACKLIGHT NIGHT C. SHARPNESS PUSHLOCK RED GAIN OFF / BLC / HME / DRC 0 ~ 100 0 ~ 30 NIGHT A. - Page 14 EXPOSURE LENS Manual mode supports the fixed board lens or the Manual manual iris lens. DC mode supports the auto-iris varifocal lens. NOTE: Both MANUAL and DC mode have FOCUS TARGET. You can adjust the focus by finding the highest number on the FOCUS TARGET.
- Page 15 EXPOSURE BACKLIGHT BACK LIGHT COMPENSATION User can manually adjust the BLC level in five areas of the scene (TOP, BOTTOM, MANUAL CENTER, LEFT, RIGHT). Increase the BLC levels to make the image brighter. This is recommended. Camera will automatically detect and adjust the BLC zone. SMART BLC levels to choose from include: LOWEST, LOW, MID, HIGH.
- Page 16 EXPOSURE AUTO GAIN CONTROL AGC enhances the picture brightness in low light conditions. OFF / LOW / MID / HIGH / HIGHEST A higher level AGC setting makes the images brighter; however, it could increase the amount of noise. STARLIGHT Starlight mode automatically activates slow shutter function OFF / x2 ~ x1024 when the image is too dark.
- Page 17 COLOR WB MODE Auto White Balance Control mode compensates for color temperature changes between 2000K and 18000K. Auto Tracking White Balance Control mode compensates for color temperature changes between 2500K and 9500K. Users can control the white balance manually by MANUAL changing RED GAIN and BLUE GAIN (see below).
- Page 18 DAY & NIGHT D&N MODE In AUTO mode, camera switches between day and night automatically depending on light AUTO / level. Camera will stay in color mode when there is enough light and will switch to B&W at COLOR / night or other low light environments.
- Page 19 FUNCTION MIRROR Flips the image horizontally. MIRROR SHARPNESS Sets the image sharpness. The higher the number, 0 ~ 30 the sharper the image. GAMMA Select the desired gamma level. 0.45 is default setting. 0.45 / 0.60 / 1.0 / MANUAL SLC (SIDE LIGHT COMPENSATION) Increase the brightness on sides of the image.
- Page 20 MOTION The camera can detect the movement and display an alarm on the screen when movement is detected. AREA SET If ON, motion areas can be selected and moved AREA 1 ~ 4 accordingly. Select Areas 1-4 and adjust using controls OFF / ON for TOP, BOTTOM, LEFT, or RIGHT.
- Page 21 PRIVACY You can hide some parts of the screen for privacy masking. A total of 8 different privacy masking zones are available. MASK 1 ~ MASK 8 Select ON or OFF for each mask (MASK 1 through 8). OFF / ON If ON is selected you can set the area to be masked and the shape and color of the mask.
- Page 22 SETUP TITLE If ON is selected, you can display the camera title on the screen. OFF / ON *CLR: Clear the title. *POS: Position the title on the screen. DPC (DEAD PIXEL CANCELLATION) DPC automatically removes defective pixels in real time. If AUTO is selected, you can define the following settings: AUTO *WHITE THR: Cancels the white defective pixels.
- Page 23 SETUP LANGUAGE The camera supports the following languages: ENGLISH, CANTONESE, MANDARIN, JAPANESE, GERMAN, FRENCH, ITALIAN, RUSSIAN, SPANISH, AND DUTCH. OSD COLOR The following colors are available for the OSD menu: BLUE, GREEN, CYAN, RED, MAGENTA, YELLOW, PURPLE, and GRAY. COMMUNICATION If ON is selected, you can define the following: *PROTOCOL: PELCO-D only.
- Page 24 EXIT EXIT Save the current settings and exit the OSD menu. SAVE & EXIT Exit the OSD menu without saving the changes. EXIT...
-
Page 25: Troubleshooting
TROUBLESHOOTING Before sending your camera for repair, check the following or contact our technical specialist. FOR NO VIDEO Check the coaxial cable and make sure it is connected securely. Check the lens’ iris adjustment at the camera’s OSD menu. Check the power supply and make sure the camera has the proper voltage and current. -
Page 26: Warranty Information
WARRANTY INFORMATION* Digital Watchdog (referred to as “the Warrantor”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR: For the initial five (5) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warrantor will repair or replace the unit with a new or refurbished product at its option at no charge. - Page 27 This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state. If the problem is not handled to your satisfaction, then write to the following address: Digital Watchdog, Inc. ATTN: RMA Department 5436 W. Crenshaw Street...
-
Page 28: Specifications
F1.2 (30IRE): 0.03 Lux [B&W] S/N Ratio 52dB (AGC off) Video Output CVBS: 1.0Vp-p / 75 Ω LENS Focal Length 3.3-12mm [DWC-D1363D], 9-22mm [DWC-D1363D922] Lens Type DC Auto Iris OPERATIONAL Day & Night Electronic 3D Digital Noise Reduction OFF / LOW / MID / HIGH / SMART... - Page 29 ENVIRONMENTAL Operating Temperature C ~ 55 C (14 F ~ 131 Operating Humidity Less than 90% (Non-Condensing) Storage Temperature C ~ 70 C (-4 F ~ 158 ELECTRICAL Power Requirement Dual (12VDC & 24VAC) Power Consumption 12VDC: 1.7, 141.7mA 24VAC: 2.4W, 100mA MECHANICAL Housing Material Plastic...
- Page 30 MEMO*...
- Page 31 MEMO*...
- Page 32 5436 W Crenshaw St. Tampa, FL 33634 Tel : 866-446-3595 / 813-888-9555 Fax : 813-888-9262 www.Digital-Watchdog.com technicalsupport@dwcc.tv Technical Support Hours : Monday-Friday 8:30am to 8:00pm EST...
