- Page 1 MANUAL IMS-ESI Setup Guide Hot-Plug Module April 1, 2022 Meinberg Funkuhren GmbH & Co. KG...
-
Page 3: Table Of Contents
4 ESI - Telecom Synchronisation References IMS-ESI (Extended Synchronization Interface) ......Date: April 1, 2022... - Page 4 1 Imprint 1 Imprint Meinberg Funkuhren GmbH & Co. KG Lange Wand 9, 31812 Bad Pyrmont, Germany Phone: + 49 (0) 52 81 / 93 09 - 0 Fax: + 49 (0) 52 81 / 93 09 - 230 Website: https://www.meinbergglobal.com Email: info@meinberg.de...
-
Page 5: Important Safety Information
Detailed product documentation is provided on a USB flash drive delivered with the Meinbeg system. The manuals can also be downloaded from the Meinberg website at https://www.meinbergglobal.com, where you can enter your system name into the search box at the top of the page to find the relevant manual. Alternatively, contact Meinberg Support for further assistance. -
Page 6: Prevention Of Esd Damage
ESD-proof bags that are crumpled or have holes cannot provide effective protection against electrostatic discharges. ESD-proof bags must have a sufficient electrical resistance and must not be made of conductive metals if the device has a lithium battery fitted on it. IMS-ESI Setup Guide Date: April 1, 2022... -
Page 7: Power Supply
In the event that a power supply unit is no longer working (e.g. defective), please return it to Meinberg for repair. Failure to observe these safety instructions may result in serious injury and/or property damage. The IMS system must only be installed, set up, and operated by qualified personnel. -
Page 8: Replacement Or Installation Of A Hot-Pluggable Ims Module
Make sure that the module is securely locked into the connector block before you fasten the two screws. Now you can put the installed module into operation. Attachment points of an 1U IMS system IMS-ESI Setup Guide Date: April 1, 2022... -
Page 9: Important Information Regarding Hot-Pluggable Ims Modules
Operating System, the configuration of some IMS modules may be reset to factory defaults! The NTP service and access to the web interface will be unavailable while the CPU is not installed. Management and monitoring functions will also be disabled. Date: April 1, 2022 IMS-ESI Setup Guide... -
Page 10: Esi - Telecom Synchronisation References
flashing yellow, if only PPS off, if no signal LED B green, if Clock and Framed available flashing green, if only Clock available flashing yellow, if only Framed available off, if no signal IMS-ESI Setup Guide Date: April 1, 2022... - Page 11 Pin assignment of the RJ-45 jacks (input 3 + 4) Date: April 1, 2022 IMS-ESI Setup Guide...
-
Page 12: Ims-Esi (Extended Synchronization Interface)

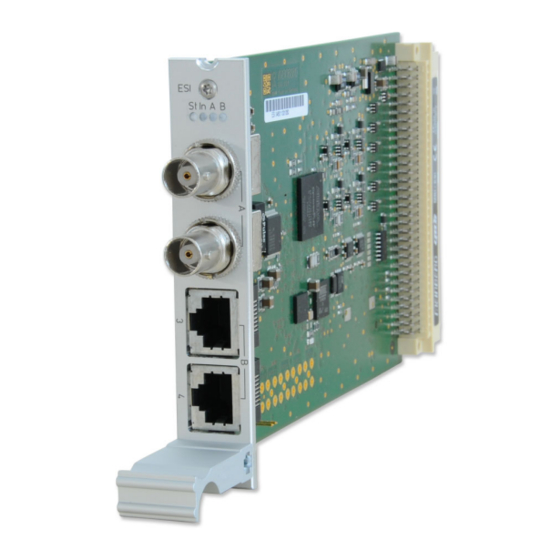

4 ESI - Telecom Synchronisation References 4.1 IMS-ESI (Extended Synchronization Interface) The ESI (External Synchronization Input) card is capable of adding additional synchronization sources to an IMS system. It accepts E1 or T1 signals, both as framed signals (2.048MBit/s/1.544MBit/s, supporting SS- M/BOC) or clock inputs. - Page 13 Discard input signal if selected ITU mask violated. Only if this box is selected, the input signal is switched off when exceeding an ITU mask. Date: April 1, 2022 IMS-ESI Setup Guide...
- Page 14 The maximum slip number can be selected in range between 0.5 – 3 cycles, with 1.5 as a default value. Input 3: See Input 2, but with RJ45 Connector and as default Frequency input 2048 kHz. IMS-ESI Setup Guide Date: April 1, 2022...
- Page 15 QL-EEC1/SEC: Ethernet Equipment Clock 1 / SDH Equipment Clock 1100 QL-SMC: SONET Minimum Clock 1101 QL-ST3E: Stratum 3E Clock 1110 QL-PROV: Provisionable by the Network Operator 1111 QL-DNU/DUS: Do not use for synchronization Date: April 1, 2022 IMS-ESI Setup Guide...
- Page 16 QL-PRC will be allowed for synchronization, whereas a signal with quality level QL-EEC1/SEC will not be accepted. Sa Bits Group Here you can select between the Sa4 to Sa8 bit group to choose the location for SSM quality bits. IMS-ESI Setup Guide Date: April 1, 2022...
