H-4607, H-6746
COMPUTER CART
TOOLS NEEDED
Phillips Screwdriver
Rubber Mallet
Top Shelf x 1
Keyboard Tray x 1
Power Strip x 1
KEYBOARD TRAY ASSEMBLY
1.
Place the top shelf upside down on a flat surface.
(See Figure 1)
2. Insert 1/2" bolts through the holes in the top shelf
and right and left tray brackets. Use screwdriver and
pliers to fasten with locknuts. Do not fully tighten.
PAGE 1 OF 6
1-800-295-5510
uline.com
Pliers
Left Tray Bracket x 1
Non-Slip Mat x 1
Cord Wrap Bracket x 1
ASSEMBLY
Allen Wrench
(included)
PARTS
Right Tray Bracket x 1
Bottom Shelf x 1
Wing Nut x 2
1⁄" Bolt x 2

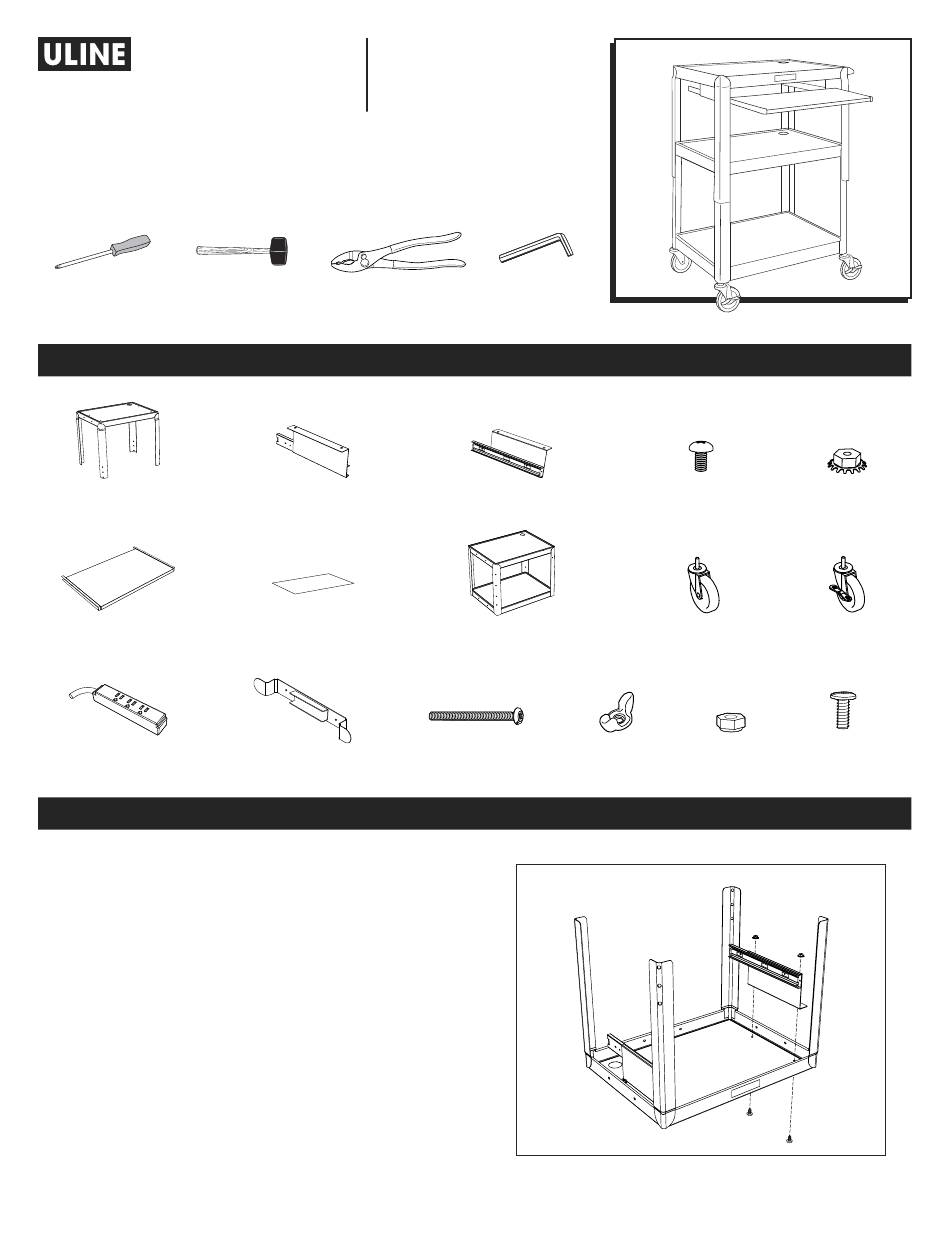

Figure 1
Back
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
1/2" Bolt x 4
Locknut x 4
Swivel Caster x 2
Swivel Caster
with Brake x 2
3/4" Bolt x 4
Nut x 4
Front
0521 IH-4607
