U-Line H-6604 Quick Start Manual

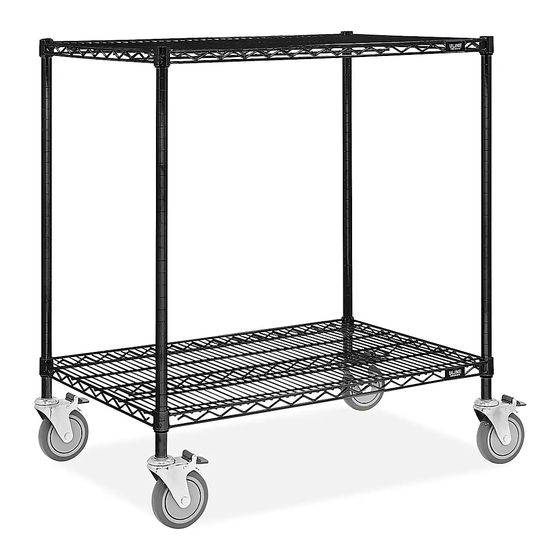

WIRE UTILITY CARTS

TOOL NEEDED

Rubber Mallet
Post x 4
Figure 1
Figure 2
Figure 3
PAGE 1 OF 6
1-800-295-5510
uline.com
Shelf x 2

CASTER INSTALLATION

TO INSTALL CASTERS
1. Make sure post is positioned as shown. (See Figure 1)
2. Engage the wheel brakes to keep casters from rolling during
assembly. Use a rubber mallet to tap caster stems into posts.
(See Figure 1)

INSTRUCTIONS FOR UNIT ASSEMBLY

1. Start with the lowest shelf. Snap the interlocking pieces of a
shelf support (wide end down) around the post at the lowest
Shelf
groove where shelf is to be located. Slide the support up or
Support
down until it snaps onto the groove. Add a shelf support to the
same place on the remaining posts. (See Figure 2)
NOTE: NSF requires food service applications to keep the
lowest shelf at least 6" above the floor.
2. Slide post through underside of shelf until shelf slides firmly
over supports. (See Figure 3)

PARTS

Shelf Support x 8 Sets
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
Caster x 4
0321 IH-4378
