H-3382
8-IN-1 MULTI-CART
TOOLS NEEDED
3/4" Wrench
Channel Lock Pliers

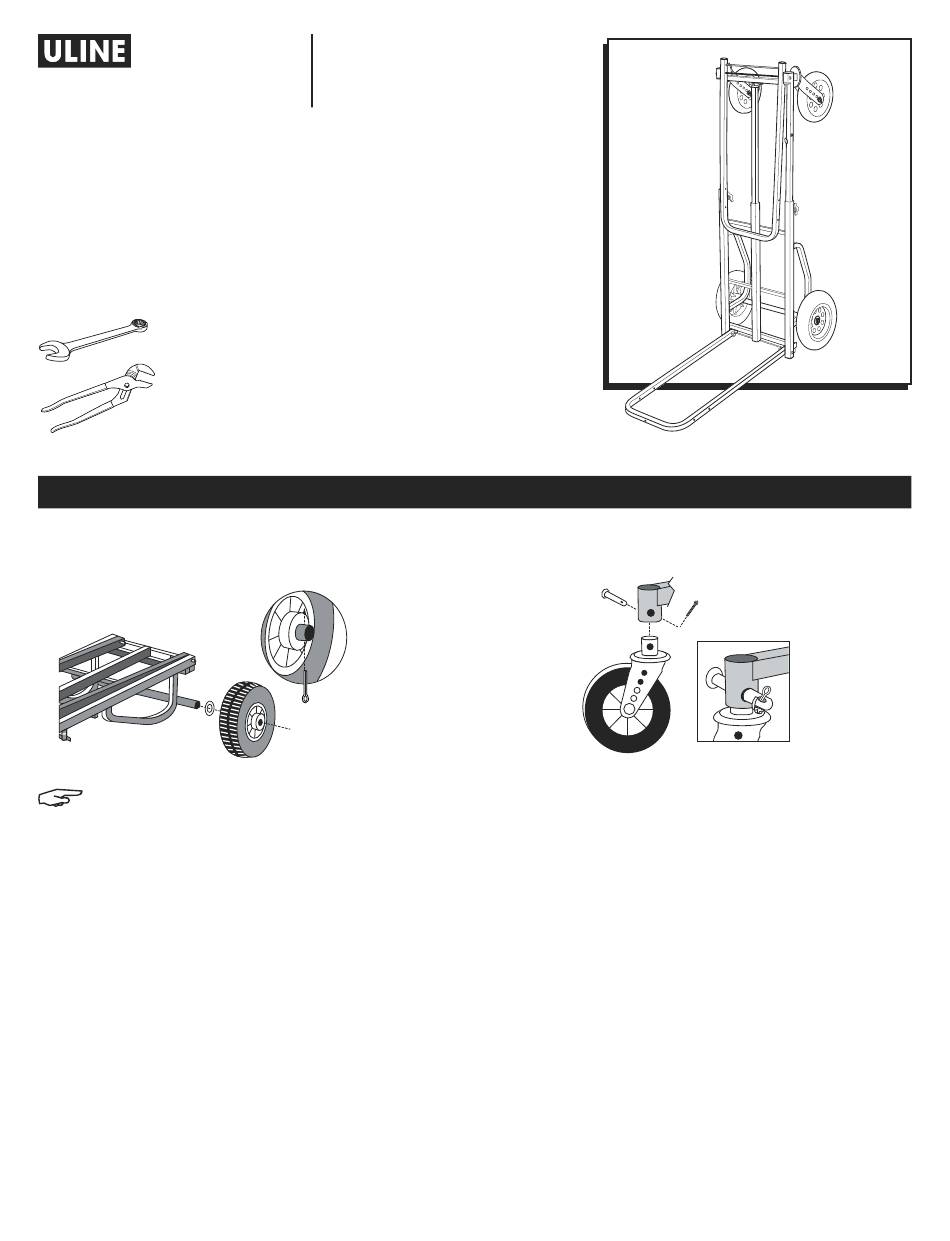

INSTALLING REAR WHEELS
Figure 1
NOTE: It is recommended that axles be
lubricated with light grease before installing.
1.
Slide a flat washer over the end of the axle. Gently
slide a wheel over the end of the axle. (See Figure 1)
2. Insert a cotter pin through the holes in the end of
the axle. (See Figure 1A) Bend the cotter pin ends
outward.
3. Repeat steps 1 and 2 for the other wheel.
PAGE 1 OF 6
1-800-295-5510
uline.com
®
ASSEMBLY
Figure 1A
INSTALLING FRONT SWIVEL CASTERS
Figure 2
1. Carefully insert caster stem into receptor tube and
line up caster stem holes with the receptor tube
holes. Stem should fit very snugly inside receptor
tube. (See Figure 2)
2. With caster stem snugly in receptor tube, insert a
large pin through the holes. Then insert a cotter pin
through the hole in the large pin and bend the ends
outward. (See Figure 2A)
3. Repeat steps 1 and 2 for the other caster.
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
Figure 2A
0521 IH-3382
