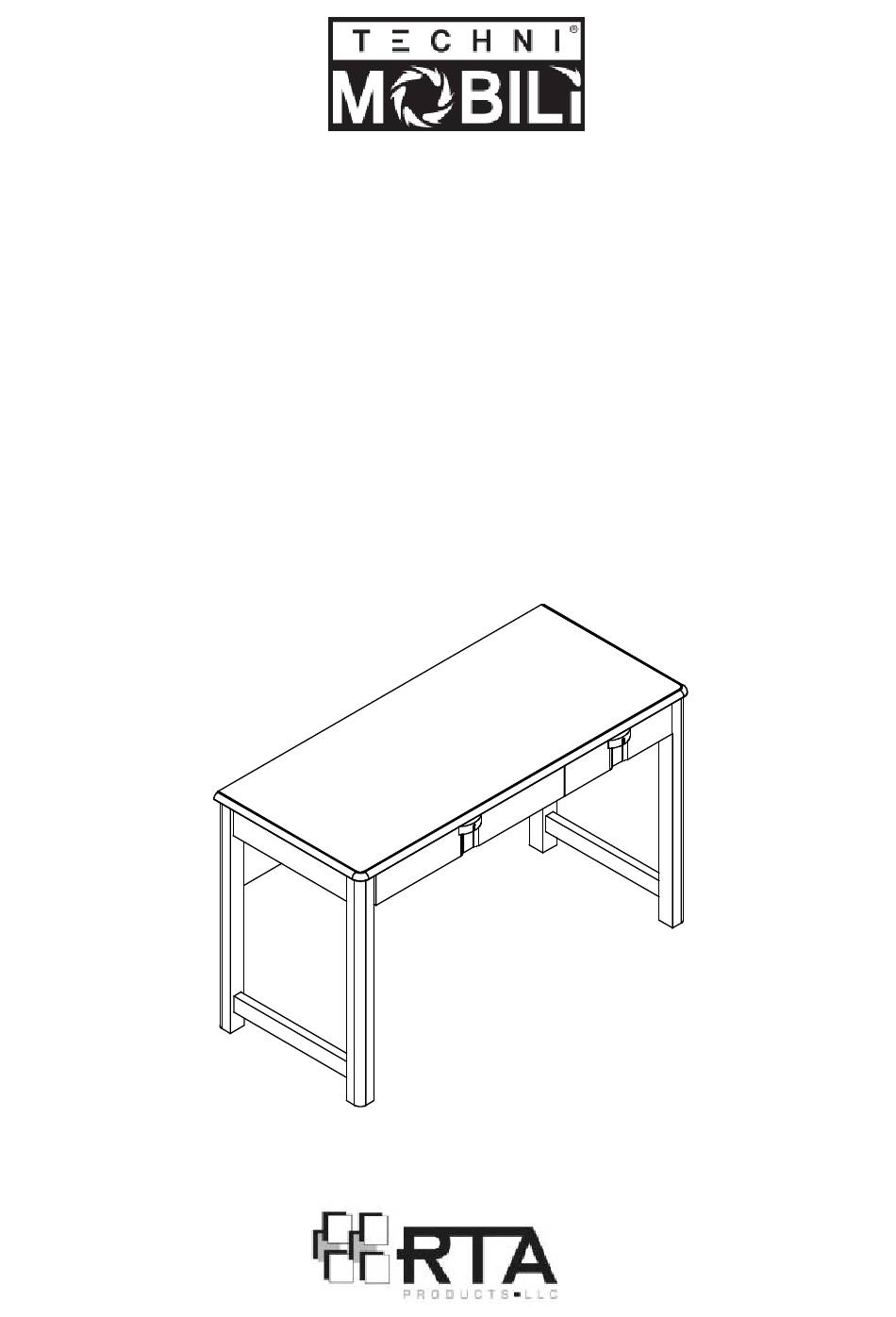

- Page 1 ASSEMBLY INSTRUCTIONS MODEL RTA-1460 Thanks for purchasing one of our products. Please read carefully the assembly instructions before the installation. Please save this manual for future reference D06 080906...
- Page 4 RTA-1460 P. 4 SCREWS PART QTY . ITEM WOODEN PIN 6x40 MM CAM BOLT 6x40 MM CAM LOCK 3.5X12 MM WOODEN PIN 3.8X35 MM 4X18 MM HOW TO ASSEMBLE USI N G BOLT S AND CAM LOCKS ALIGNING THE CAM LOCK...
- Page 6 RTA-1460 P. 6 Attention:Do not tighten the screws until all of them are in right positions WARNING:HOLES ON PANELS MAY BE HIDDEN UNDERNEATH PVC LAMINATE!!! STEP S Left Right Assemble one of the flat sliders (15) to the right Assemble one of the flat sliders (15) to the left...
- Page 7 RTA-1460 P. 7 STEPS Instructions on page 4 Insert wooden pins (A) into the structures (1) and (2) as shown. Assemble the back panel (3) in between the 2 structures using cam locks (D). Insert 7 wooden pins (A) into the structures (1) and (2), and the back panel (3) as shown.
- Page 9 RTA-1460 P. 9 STEPS Screw bolts (C) to panel (6) and insert wooden pins (F) as shown. Assemble the panel (11) to the panel (8) using screw (G) as shown. Make sure the hole for the cam lock on Then assemble panel (6) panel (11) is facing outwards.
