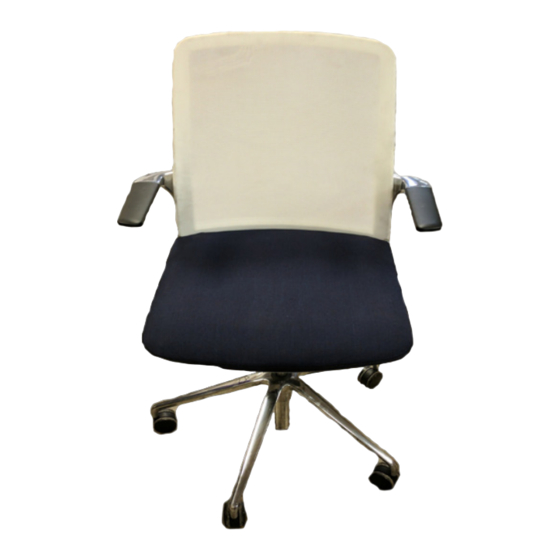

STYLEX F4 Disassembly And Recycling Document

Model: F4
Tools Required
Safety Glasses
5/32 Allen Wrench
3/16 Allen Wrench
5/64 Allen Wrench
#2 Phillips Screwdriver
Mallet

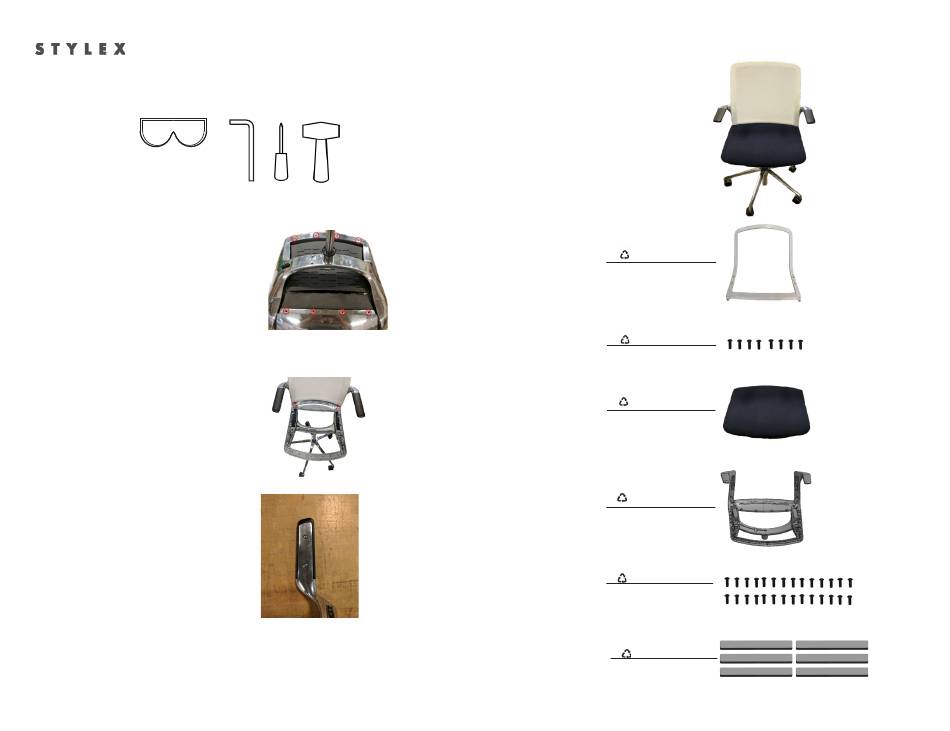

Breakdown Steps
1. Flip the chair over and remove the
8 screws holding the seat in place.
Slide the seat forward and pull up to
remove the seat. (Figure A1)
2. Unscrew the 2 screws at the botton
of the back and pull the seat back up
to remove. (Figure B1)
3. Unscrew 2 screws per arm to remove
the arm pads. (Figure C1)
www.stylexseating.com
Disassembly and Recycling Document
Disassembly Time: 10 min / No Special Training Required
A1
A1
B1
C1 C1
- Seat Back
- Material: Glass Filled Nylon,
Mesh Upholstery
- Socket Head Shoulder Screw
- Material: Steel
x8
- Seat
- Material: Polypropolyne, foam
- Carriage
- Material: Aluminum
- Socket Head Shoulder Screw
- Material: Steel
x28
- Spring
- Material: Steel
x6
800.257.5742
C1
Disassembly F4 09/21/17
P.1
