STYLEX Luna Assembly Instructions

Hide thumbs Also See for Luna:
1
2
3
4

Advertisement

Quick Links

Download this manual

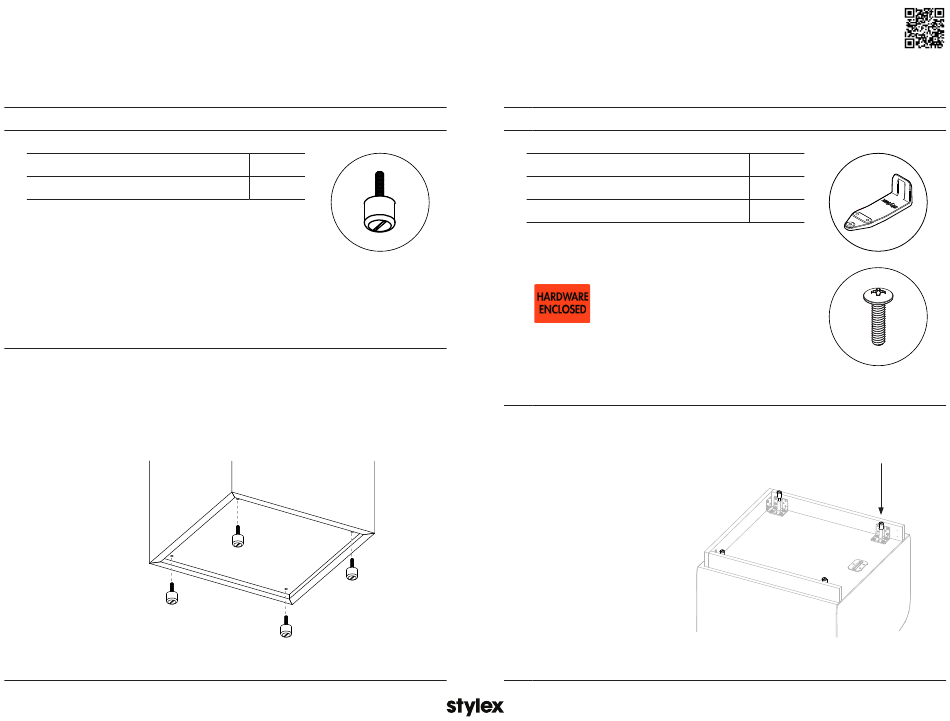

PLANTER GLIDES
PROVIDED HARDWARE
Plastic Glides
Note: Each planter ships with separate
glides packed in the main cavity.
Recommended Tools:
Safety Glasses
Flat Head Screwdriver
1. Place the planter on its side and install
the 4 glides in the bottom of the unit.
STYLEXDESIGN.COM
Luna
ASSEMBLY INSTRUCTIONS: PLINTH
QTY
4
PLINTH UNIT GANGING
PROVIDED HARDWARE
Ganging Bracket
1" long 1/4-20 Phillips Head Screws
Note: Hardware for the entire layout is packed in a
box underneath the first unit of the layout, marked
with an orange HARDWARE ENCLOSED sticker.
Recommended Tools:
Safety Glasses
Screwdriver or Drill with #3 Phillips Bit
1. Determine which unit in the layout will be
positioned first. It is recommended to start
with an end, corner, or end cap unit first.
Position the unit in its location and set the
level by adjusting the height of the glides.
Repeat for remaining units before installing
ganging brackets.
QTY
Varies
Varies
GLIDES
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Luna and is the answer not in the manual?

Questions and answers

Related Manuals for STYLEX Luna

Summary of Contents for STYLEX Luna

  • Page 1 Luna ASSEMBLY INSTRUCTIONS: PLINTH PLANTER GLIDES PLINTH UNIT GANGING PROVIDED HARDWARE PROVIDED HARDWARE Plastic Glides Ganging Bracket Varies 1" long 1/4-20 Phillips Head Screws Varies Note: Each planter ships with separate glides packed in the main cavity. Note: Hardware for the entire layout is packed in a...
  • Page 2 Luna ASSEMBLY INSTRUCTIONS: PLINTH PLINTH UNIT GANGING (CONTINUED) 2. Place the unit on its back and 5. Push down on the added unit install the ganging bracket to while lifting up on the previous the bottom of the unit using unit with bracket to reset upholstery.
  • Page 3 Luna ASSEMBLY INSTRUCTIONS: PLINTH FLUSH MOUNT DAISY CHAIN POWER 1. Refer to the wire diagram page of the installation drawing for 3. Lift each unit individually and locations of power units. All connections are color coded. tuck the cords underneath.
  • Page 4 Luna ASSEMBLY INSTRUCTIONS: PLINTH FLUSH MOUNT DAISY CHAIN POWER (CONTINUED) WIRE MANAGEMENT 6. For end caps, assemble all units 1. If the seat unit is against a wall, but the end cap. Connect the daisy remove the rear-side toe kick using chain and then place the end cap on a Phillips head screwdriver or drill.
