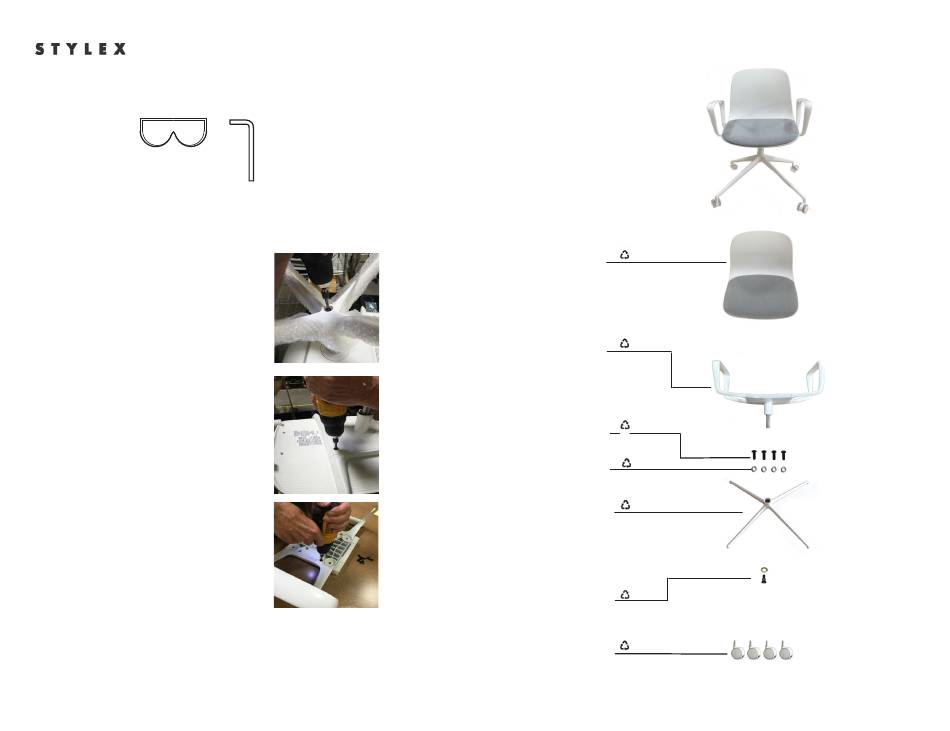

Model: Verve with 4 Blade base
*Refer to P.2 for model variations
Tools Required
safety glasses
5/32 alan wrench
Breakdown Steps
1. Turn the chair on its back to reveal
the aluminum 4 blade swivel base.
Start by using a 5/32 allen key to re-
move the 1/4-20 Shoulder head cap
screw. When the screw is removed
pull up the base to seperate it from
the spigot (figure A1).
2. After removing the base from the
chair, use the same allen key to
unscrew the screws holding the
aluminum carriage onto the shell.
(figure B1).
3. Finally, seperate the arms and spigot
from the carraige useing the 5/32
allen key (figure C1).
www.stylexseating.com
Disassembly and Recycling Document
Disassembly Time: 5min / No Special Training Required
A1
B1
C1
800.257.5742
- Seat Shell
- Material:
Polypropylene, foam
upholstery
- Carriage
- Material: aluminum, steel
- Phillips button-head (1/4 20 bolt)
x4
- Material: Steel
- Washers
x4
- Material: Steel
- 4 Blade Base
- Material: Aluminum
- Socked Head shoulder Screw
- Material: Steel
x1
- Washer
- Material: Steel
x4
- Casters
- Material: Steel, Nylon
P.1
Disassembly Verve 08/18/16
