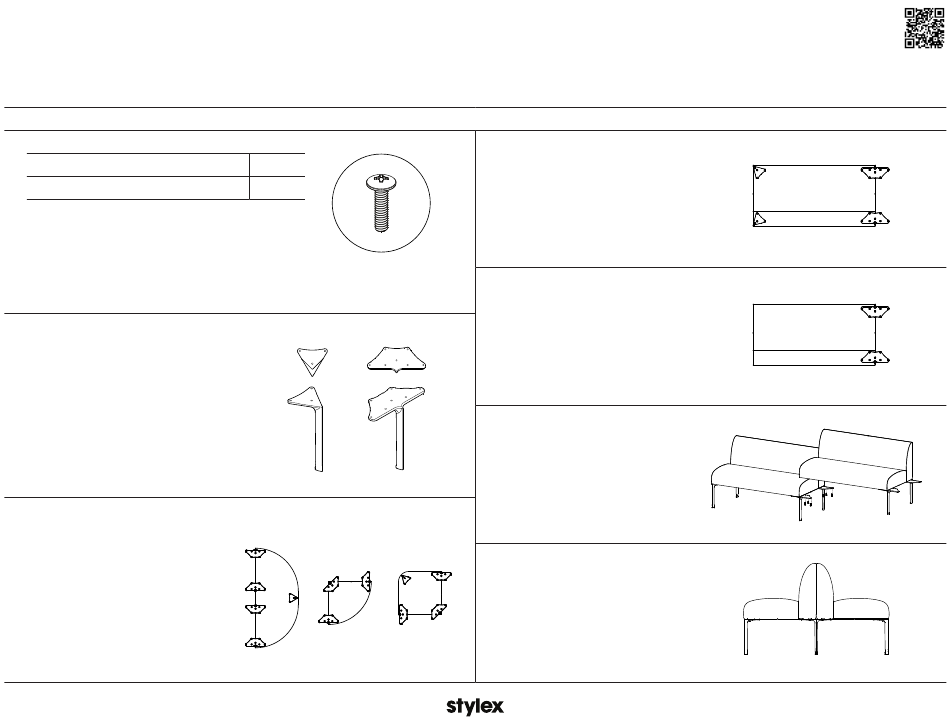

STYLEX Luna Assembly Instructions

LEG ATTACHMENT AND GANGING
PROVIDED HARDWARE
1" long 1/4-20 Phillips Head Screws
Note: Hardware for the entire layout
is packed with the first unit of the layout
Recommended Tools:
Safety Glasses
Drill with #3 Phillips Bit
1. Elevated units use end legs and
mid legs. Mid legs gang units
together. Reference the layout
drawing to see the location of all
end legs and mid legs. Unpack all
seat units and legs.
2. If a layout contains an inside corner,
outside corner, or end cap, we
recommend attaching all legs to
that unit first. For corners and end
caps, place the unit on its back and
attach the legs as shown.
Note: End caps over 60" have
2 front legs.
STYLEXDESIGN.COM
Luna
ASSEMBLY INSTRUCTIONS: ELEVATED
QTY
Varies
MID LEGS
END LEGS
3. For straight runs, start with one
end of the layout. Place the unit
on its back and attach 2 end
legs and 2 mid legs as shown
in the layout drawing.
4. For each additional unit, attach
the necessary legs to the far
side of the unit as shown on
the layout drawing.
5. Place the legless end of that
unit on top of the mid leg of the
previous unit and attach using
the 1" screws. Continue until
the layout is complete.
6. If end units have been specified
as back-to-back, they will gang
together using a mid leg as shown.
Reference the layout drawing.
Note: End units with arms cannot
gang back to back via mid leg.
1
