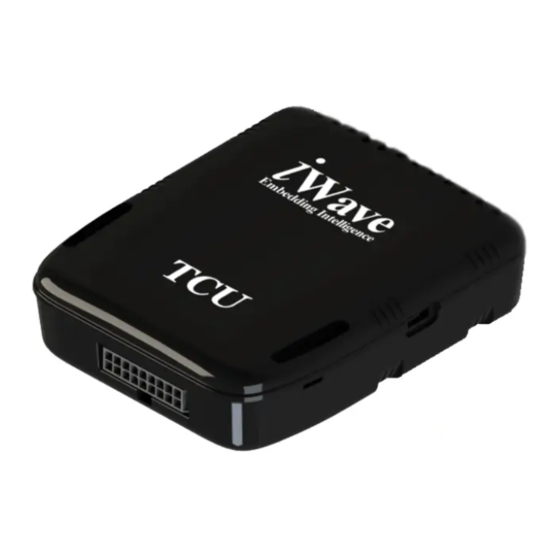

Telematics Control Unit Product User Manual
Telematics Control Unit
Product User Manual
Page 1 of 21
iWave Systems Confidential.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TCU and is the answer not in the manual?

Questions and answers

Related Manuals for iWave TCU

Summary of Contents for iWave TCU

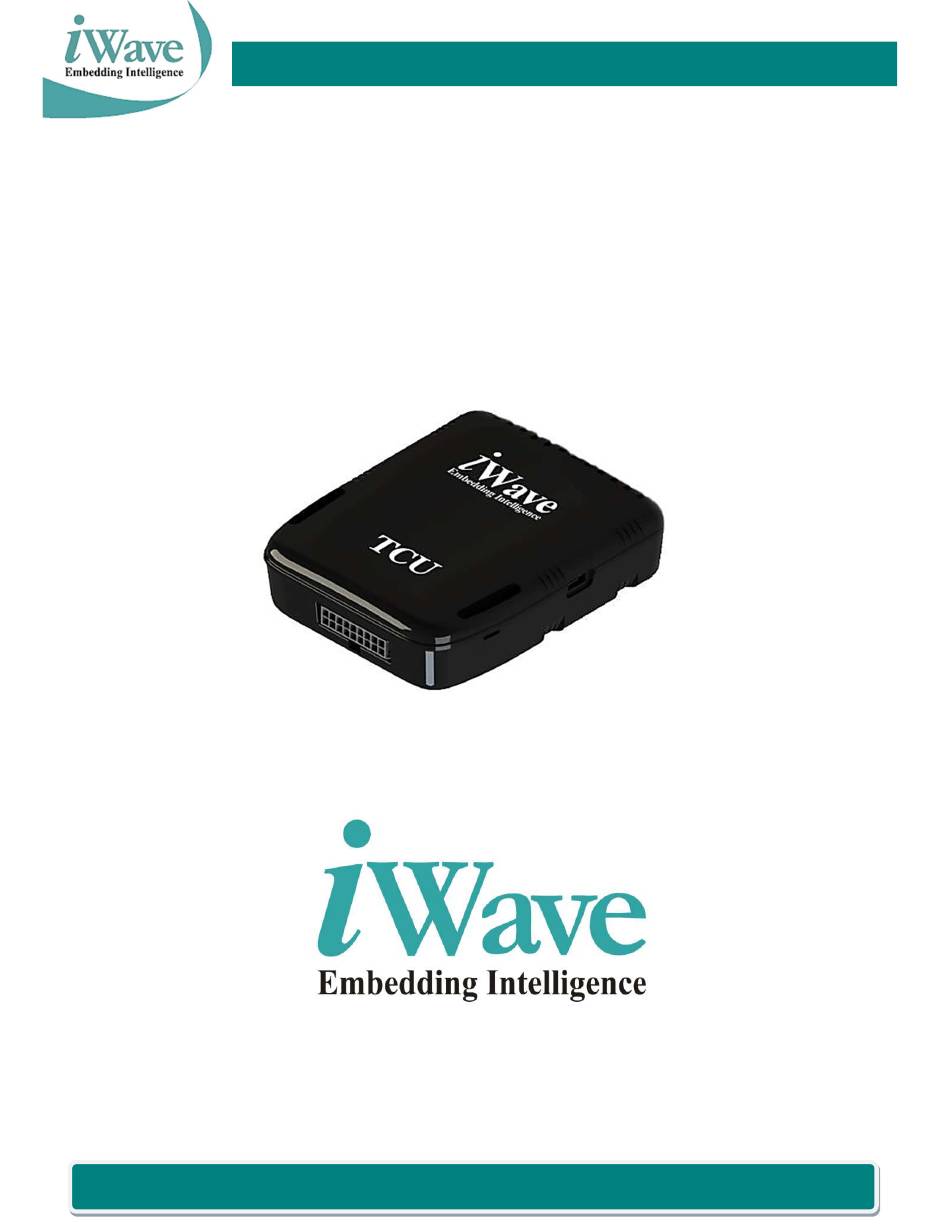

  • Page 1 Telematics Control Unit Product User Manual Telematics Control Unit Product User Manual Page 1 of 21 iWave Systems Confidential.
  • Page 2 (including liability to any person by reason of negligence) will be accepted by iWave Systems, its subsidiaries or employees for any direct or indirect loss or damage caused by omissions from or inaccuracies in this document.

  • Page 3: Table Of Contents

    ) ............15 OGIN TO THE EVICE ONSOLE USING ITHOUT USING ERIAL BOARD 3.5.1 L PC ...................... 15 OGIN TO DEVICE CONSOLE FROM INDOWS 3.5.2 L ....................17 OGIN TO DEVICE CONSOLE FROM NDROID HONE Page 3 of 21 iWave Systems Confidential.

  • Page 4: List Of Figures

    27: SSH L ................................ 19 IGURE OGIN 28: SSH L ................................ 20 IGURE OGIN 29: D ..........................20 IGURE EVICE ONSOLE INDOW List of Tables 1: A & A ........................... 7 ABLE CRONYMS BBREVIATIONS Page 4 of 21 iWave Systems Confidential.

  • Page 5: Introduction

    Avoid using board in extreme dust, humidity and temperature conditions. Do not place the device in wet area.  Before using the Telematics Control Unit, make sure that all cables are correctly connected and the power adapter is correctly selected. Page 5 of 21 iWave Systems Confidential.

  • Page 6: Unpacking Guidelines

    Before connecting or removing Telematics Control Unit, ensure that power cable is unplugged and ESD antistatic guidelines. Unpacking Guidelines Please follow the below guidelines while unpacking the TCU. Make sure to follow the below antistatic guidelines before unpacking. • Wear the antistatic wristband while unpacking and handling the device to prevent electrostatic discharge.

  • Page 7: List Of Acronyms

    Internet Protocol On-Board Diagnostics On-The-Go RoHS Restriction of Hazardous Substances Subscriber Identification Module Secure Shell SSID Service Set Identifier Telematics Control Unit TELNET TELecommunications NETwork Universal Serial Bus Table 1: Acronyms & Abbreviations Page 7 of 21 iWave Systems Confidential.

  • Page 8: Telematics Control Unit Set Up Procedure

    Figure 4 : SIM insertion procedure in Telematics control unit Battery Connection Procedure  Connect the battery in the slot highlighted as in image (3) of Figure 5 Figure 5 : Procedure to Connect Battery Page 8 of 21 iWave Systems Confidential.

  • Page 9: Battery Removal Procedure

    Connect one end of the Y cable to the Power connector board as shown in the image (3) of Figure 8 Provide power supply to the power connector board as shown in the image (4) of Figure 8 Figure 8: Procedure to power on the device using Y cable Page 9 of 21 iWave Systems Confidential.

  • Page 10: Telematics Control Unit - Flashing And Debugging Procedure

    Install the Tera Term tool in the Windows Host PC.  Open the Tera Term Tool available on the host PC and select the appropriate serial COM port Figure 10: COM Port selection Page 10 of 21 iWave Systems Confidential.

  • Page 11: Figure 11: Tera Term Setting

    Parity: none Stop bits: 1 Flow control: none  Power ON the Telematics control unit and the Debug log will appear as shown in Figure 12 Figure 12: Telematics control unit Boot log Page 11 of 21 iWave Systems Confidential.

  • Page 12: Setting Up Telematics Solution For Flashing

    If the device is detected, then "HID-compliant vendor-defined device" message will be displayed in the status box. Figure 14: Platform detection  Click on the Start button, MFG Tool will start programming binaries into boot media. Page 12 of 21 iWave Systems Confidential.

  • Page 13: 3.3.1 Limitations

    Connect the other end of the USB cable to PC to view the Debug prints.  Open the Tera Term Tool available on the host PC and select the appropriate serial COM port as mentioned in Figure 16 Page 13 of 21 iWave Systems Confidential.

  • Page 14: Figure 16: Serial Com Port Selection

    Bits per second: 115200 bps Data bits: 8 Parity: none Stop bits: 1 Flow control: none  Power ON the Telematics control unit and the Debug log will appear as shown in Figure 18 Page 14 of 21 iWave Systems Confidential.

  • Page 15: Login To The Device Console Using Wi-Fi (Without Using Serial Board)

    3.5.1 Login to device console from Windows PC  Turn on Wi-Fi in laptop.  Power on the device and wait for 1 min, OBDDevice003 Wi-Fi will come up as shown in the Figure 19 Figure 19: Connect Wi-Fi Page 15 of 21 iWave Systems Confidential.

  • Page 16: Figure 20: Ssh Login

    Figure 20: SSH Login  Enter the Telematics control unit user name and password as shown in the Figure 21 User Name: root  Password: iWavesys123   Click OK Figure 21: SSH Login Details Page 16 of 21 iWave Systems Confidential.

  • Page 17: 3.5.2 Login To Device Console From Android Phone

    Eg: SSH/SFTP/FTP/TELNET Advanced Client Admin Hands  Turn on Wi-Fi in the phone.  Power on the device and wait for 1 min, OBDDevice003 Wi-Fi will come up as shown in the figure. Figure 23: OBDDevice003 Wi-Fi connection Page 17 of 21 iWave Systems Confidential.

  • Page 18: Figure 24: Ssh Terminal Application In Phone

    Telematics Control Unit Product User Manual  Open the SSH terminal application in phone. Figure 24: SSH Terminal Application in phone  Click on the Plus symbol as shown in the figure, Figure 25: SSH Connection Page 18 of 21 iWave Systems Confidential.

  • Page 19: Figure 26: Ssh Login Details

    Enter the login details and click on the save button as shown in the figure, Figure 26: SSH Login Details  Click on the saved host name as shown in the Figure 26, Figure 27: SSH Login Page 19 of 21 iWave Systems Confidential.

  • Page 20: Figure 28: Ssh Login

    Telematics Control Unit Product User Manual  Select “SSH Terminal” from the list. Figure 28: SSH Login  The debug console will open as shown in the Figure 29. Figure 29: Device Console Window Page 20 of 21 iWave Systems Confidential.
  • Page 21 Telematics Control Unit Product User Manual Technical Support iWave Systems technical support team is committed to provide the best possible support for our customers so that our Hardware and Software can be easily migrated and used. For assistance, contact our Technical Support team at, Email support.obd@iwavesystems.com...
