KI U Series Assembly Instructions

thumbscrew
thumbscrew
thumbscrew
hole
Method "A"
thumbscrew
Figure 1
hole
Method "A"
Figure 1
thumbscrew
hole
worksurface
thumbscrew
hole
worksurface
thumbscrew
thumbscrew
Method "B"
Figure 2
Method "B"
Figure 2
Assembly Instructions
adjustable
glide
adjustable
glide
pedestal
pedestal
worksurface
worksurface
hanger
bolt
hanger
bolt
hanger
bolt
hanger
bolt
pedestal
pedestal
Detail A
adjustable
glide
adjustable
glide
U-Series Pedestals
July 2015
predrilled hole
thumbscrew
predrilled hole
thumbscrew
Detail A
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Mounting Worksurface
Supporting Pedestals to
Worksurface

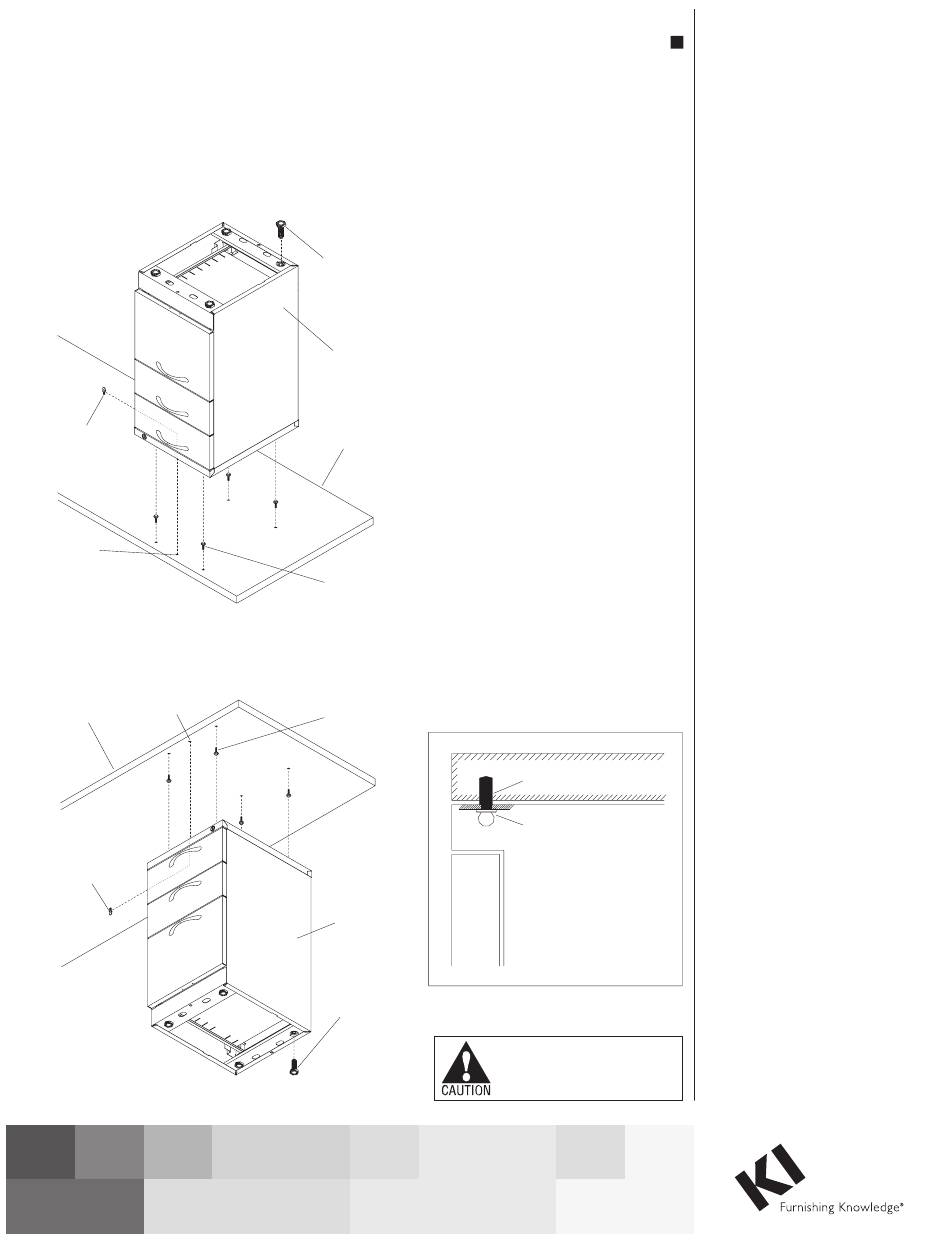

Method "A"
1. To avoid scratching the
worksurface, place face down on a
soft protective surface (Figure 1).
Note: For installation of pedestal
to worksurface without holes
pre-drilled to underside, see
Figure 3, next page.
2. Determine on which side of
the worksurface the pedestal
will install to, then twist four
hanger bolts into the / " dia.
13
64
worksurface holes. Caution: Do
not over-tighten bolts.
3. Position pedestal so hanger bolts
insert through top of pedestal
at larger opening of keyhole
slots. Then slide pedestal back
to engage four hanger bolts in
smaller slot of keyholes
(Figure 1).
4. Open top drawer of pedestal
and locate front, center hole in
pedestal. Make sure pedestal
mounting hole aligns with
predrilled hole in worksurface
and install thumbscrew through
pedestal, into worksurface to
secure pedestal in place
(Detail A).
5. Once pedestal is secured to
underside of worksurface, and
worksurface is right-side up
at its final location on-site,
adjust the four glides under the
pedestal to achieve a level, stable
worksurface.
Method "B"
Note: This method should
be used only when attaching
a pedestal to worksurface that
cannot be placed face down on
the floor.
1. Follow notes and instructions
in Method "A" excluding step 1
(Figure 2).
Caution: To avoid injury this
operation requires more than one
person to install pedestal.
