KI U Series Assembly Instructions

drawers

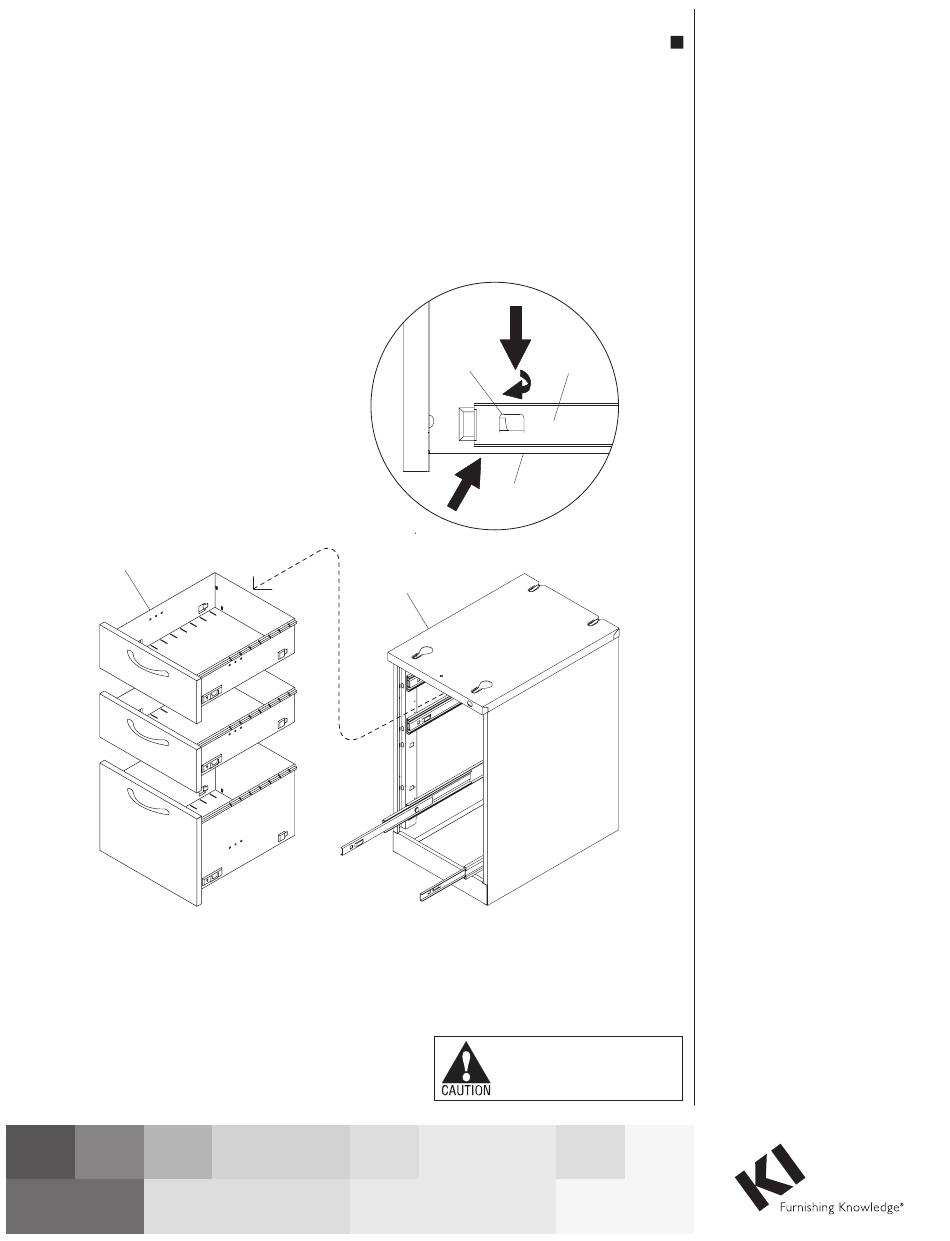

Figure 1
Assembly Instructions
Worksurface Supporting Pedestal with Panel Supporting Bracket
slip
connection
pedestal
U-Series Pedestal
®
January 2016
drawer
suspension
drawer
bottom
Detail A
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Removing Drawers
Note: To ease the assembly of
support brackets to cabinets and
cabinets to worksurfaces, all file
drawers should be removed.
1. Empty the contents of file drawers
and open drawer until suspension
is fully extended (Figure 1).
2. Using a slot screwdriver, place
tip between the drawer body and
the suspension, near the slip
connection (Detail A).
3. Rotate the screw driver to pry the
glide away from the drawer body,
while pressing up on the bottom of
the drawer (Detail A).
4. The drawer will now slip free from
the rear connections by pulling
the drawer evenly at a slight angle
upwards (Figure 1).
