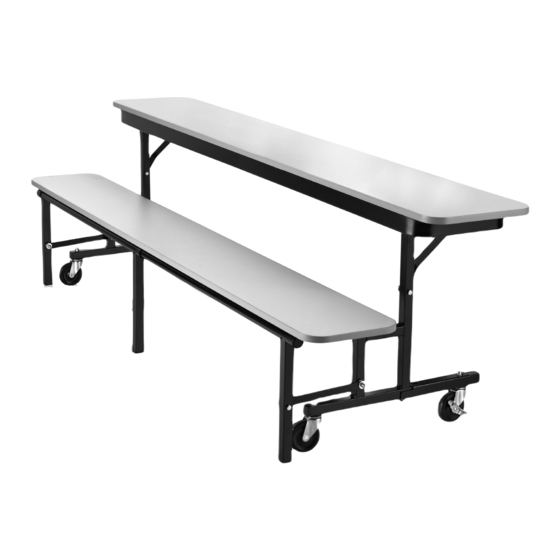

KI Uniframe Convertible Bench Operating Instructions

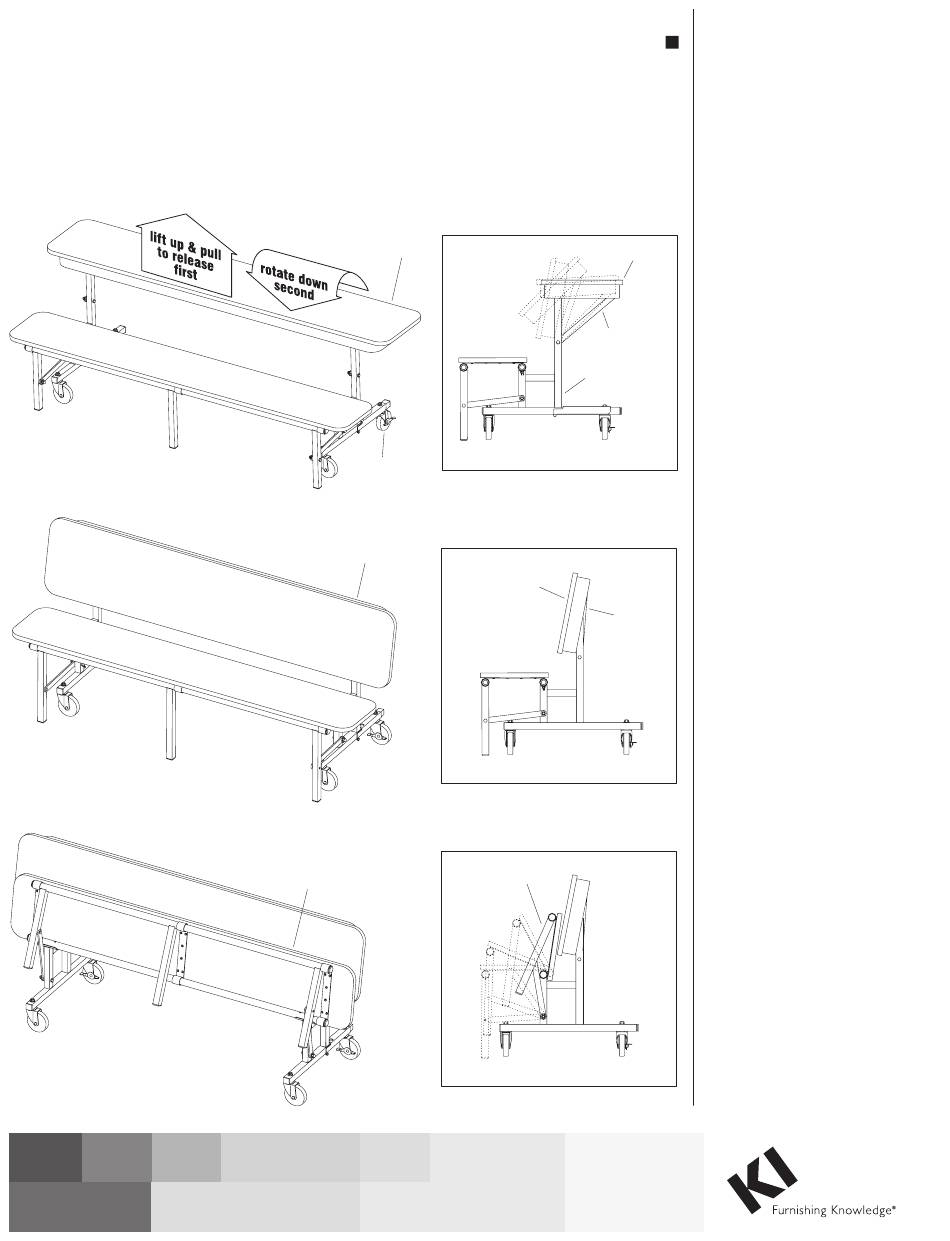

Figure 1 - Single Table Position
Figure 2 - Bench Position
Figure 3 - Storage/Transport Position
Operating Instructions
Uniframe
tabletop
locking caster
Detail A - Table-to-Bench Position
tabletop
Detail B - Bench Position
bench
Detail C - Bench-to-Storage Position
Convertible Bench
®
September 2018
tabletop
apron
support
leg
tabletop
apron
bench

Tabletop Operation

To Flip Down for Bench
1. Lift up and pull at the center of the
table top closest to the bench to
unlock, then rotate the tabletop down
until table apron rests against vertical
leg support and the worksurface
becomes the backrest. (Figures 1 &
2, Details A & B).
To Flip Up for Table
1. Lift up on front edge of table apron at
the center and rotate up until top is
horizontal and drops into the locked
position (Detail A).
Bench Storage/Transport Position
1. To store or transport unit, lift up
on bench, rotating the bench to the
vertical position (Figure 3 &
Detail C).
Locking Casters
1. Lock casters to use bench/table.
Unlock casters to transport table
(Figure 1).
