Figure 1
yellow or
green
sticker
Detail A
Assembly Instructions
Universal Height-Adjustable Screens
mounting
Pirouette table
bracket
fixed-base
Screen
Mechanism
Model
1
USPF2324
Yellow
USPF2924
Yellow
USPF3524
Yellow
USPF4624
Green
USPF5824
Green
USPF7024
Green
Screen Model/Mechanism Chart
October 2017
vertical
railway
adjustable
mechanism
#12 x 1"
PPH screws
Mechanism
Mechanism
2
3
Yellow
N/A
Yellow
N/A
Green
N/A
Green
N/A
Yellow
Green
Green
Green
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Note: If tables do not have
pre-drilled holes under the tabletops
for installing screens, retrofitting will
be required. See page 4, "Retrofit
Drilling Guidelines."
1. Carefully remove contents from
shipping cartons and identify parts
and hardware supplied.
Note: The Universal Height-
Adjustable Screen may be installed
on Pirouette, WorkUp, and Toggle
Table models. Certain table models
allow screens to be mounted on the
side of the table as a divider screen.
The assembly process is the same
for divider screens and privacy
screens. The following instructions
show the installation of a privacy
screen to a Pirouette Fixed-Base
Table, your configuration may vary.
Important: Two different adjustable
mechanisms are designed to install
for different screen widths/weights.
Each of the two mechanisms is
weight-balanced differently and is
color coded with a different green or
yellow round sticker applied under
the mounting bracket. It is important
to reference the Screen Model/
Mechanism Chart below and use the
correct mechanism per the screen
model being installed. If screens are
installed with the incorrect adjustable
mechanism(s), screens will not
be counter balanced properly and
disassembly and correct reassembly
will be required (Detail A).

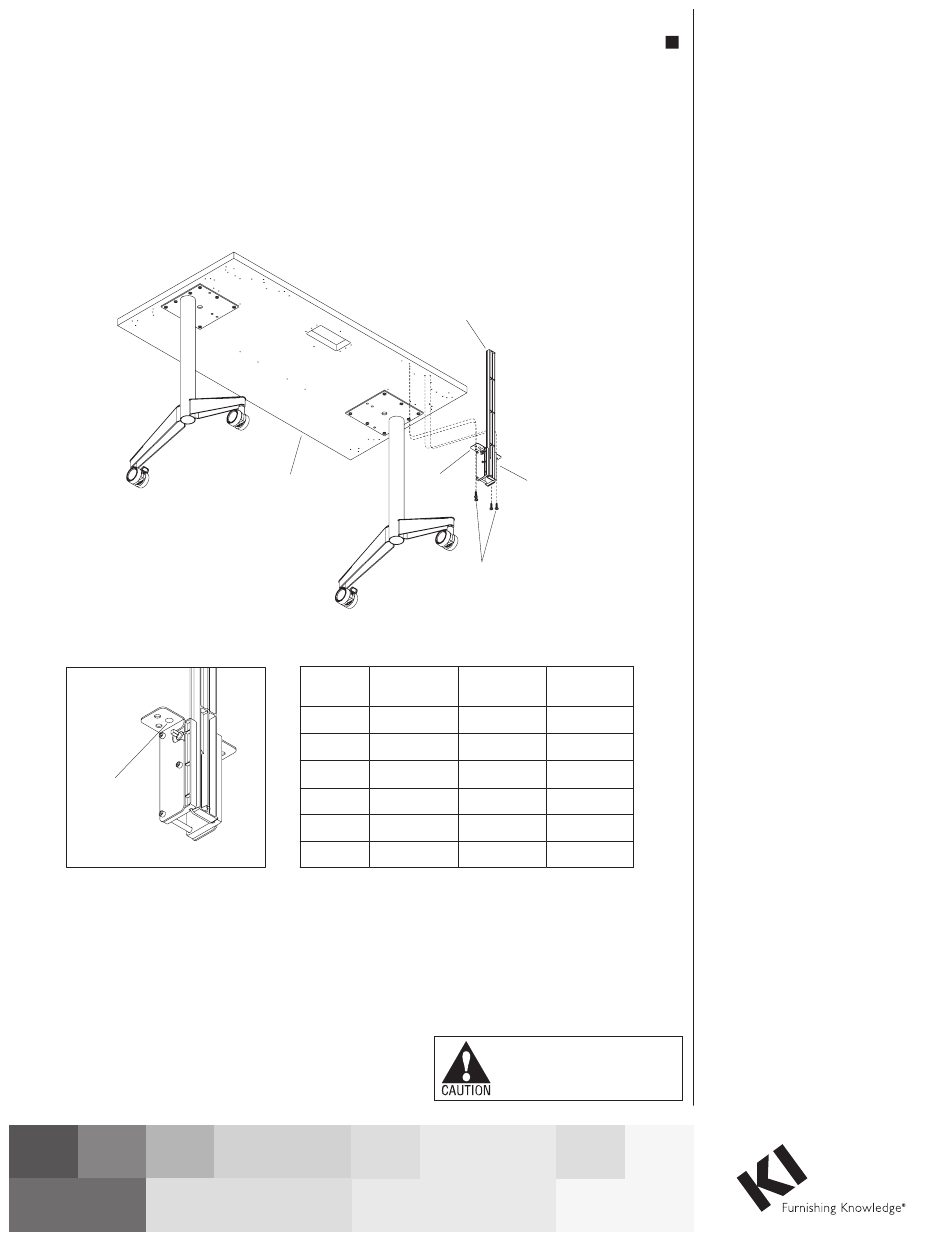

2. Locate an adjustable mechanism
per the screen model being installed
and position the mounting bracket
to align with the pre-drilled holes on
the underside of the tabletop. Secure
mechanism to the underside of the
tabletop using four #12 x 1" screws
(Figure 1).
