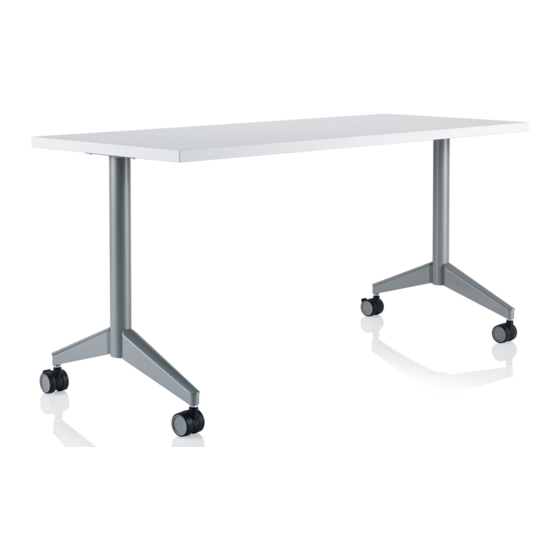

KI Pirouette Assembly Instructions Manual

M12 x 25mm
flat socket
head screw
nesting table
support beam
lock paddle
pivot plate
(let)
nesting leg
(left)
nesting leg
(right)

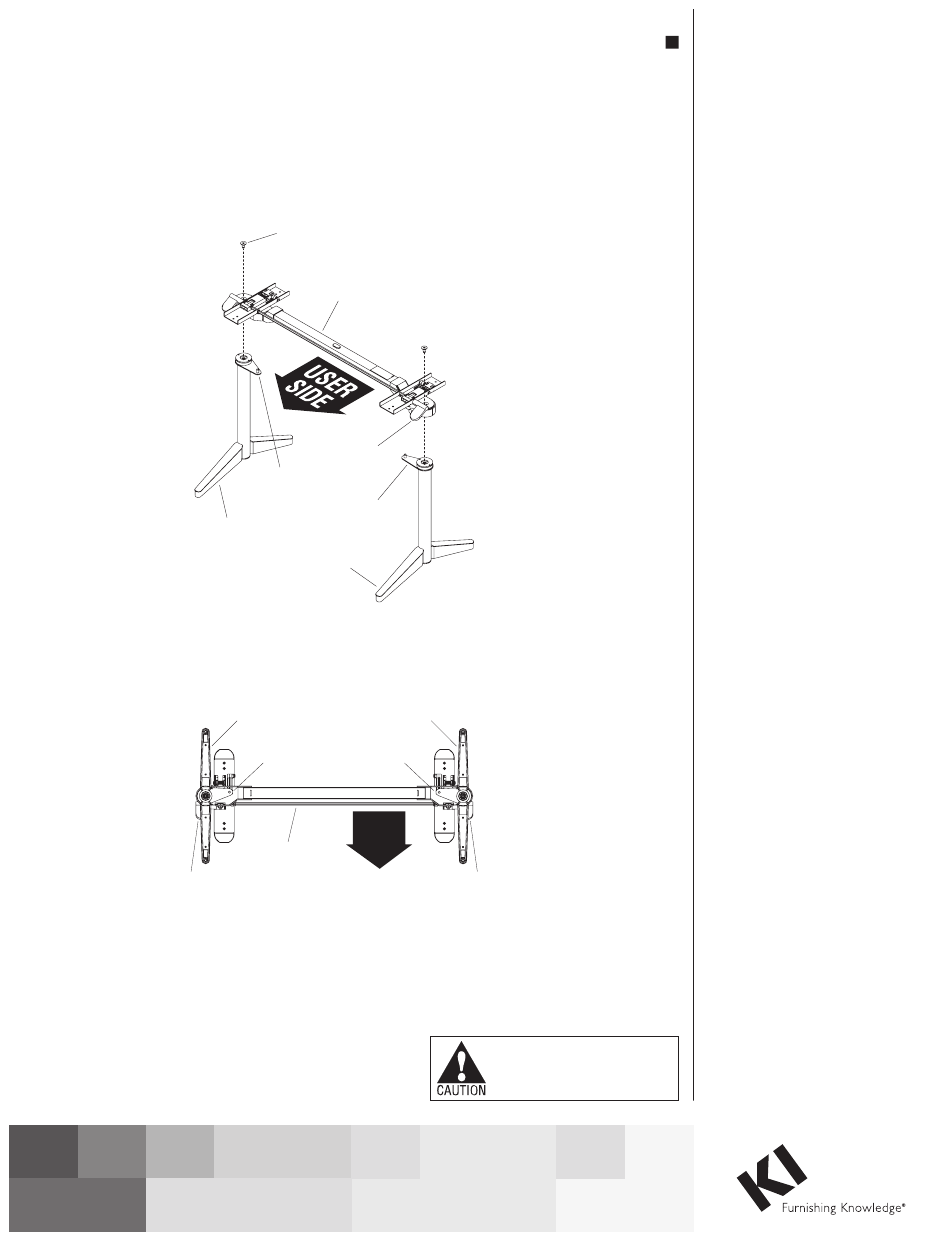

Figure 1 - Leg Installation
nesting leg
(left)
pivot plate
(left)
L
nesting table
support beam
tabletop
lock paddle
(face user side)
Figure 2 - Leg Installation Bottom View
Assembly Instructions
Nesting-Base with Villa, PowerUp or No Power
tabletop
pivot plate
(right)
nesting leg
(right)
pivot plate
(right)
R
USER
SIDE
tabletop
lock paddle
(face user side)
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Pirouette Tables
™
August 2018
Tools Required
• Cordless Drill/Screwdriver
• #2 Phillips Driver Bit
• #3 Phillips Driver Bit
• / " Open End Wrench
3
4
• 8mm Allen Wrench
Nesting Legs to Tabletop
Installation
1. Carefully remove contents from
shipping cartons and identify parts
and hardware supplied.
Note: The two nesting legs are
different, and are labeled so under
each nesting plate. An "L" or "R"
is displayed to represent left-or
right-hand. As labeled, the legs are
designed to install to a specific side
of the table support beam assembly.
Take care and follow directions below
when positioning legs for assembly.
If legs are not installed to the proper
left- or right-hand location, tables will
not nest properly and disassembly
and reassembly will be required.
2. Locate the nesting table support
beam assembly and position it so
the tabletop lock paddles face the
"user side" as illustrated. Choose
one nesting leg and identify if it is
right- or left-hand by the letter under
the pivot plate, then stand it upright.
Position the nesting leg such that the
pivot plate nests into the mounting
location in the beam assembly at the
correct left or right-hand location
as illustrated using an 8mm Allen
wrench. Twist in a M12 x 25mm flat
socket head screw through the top of
the nesting table support beam and
into the top of the nesting leg being
installed, but do not tighten at this
time. Repeat the process to loosely
attach the second leg to the support
beam. Once both legs are under the
support beam, use a / " open end
3
4
wrench to hold (but do not turn)
the nut at the underside of each leg
upright. Using an 8mm Allen wrench
at the top, tighten the M12 x 25mm
flat head screw to secure. Do not turn
or tighten the nut at the bottom of
the nesting legs. Repeat the process
above to tighten the other leg to the
support beam at the top (Figures 1
& 2).
