  • Page 1 VC709 Restoring Flash Contents April 2015 XTP238...

  • Page 2: Revision History

    NOTICE OF DISCLAIMER: The information disclosed to you hereunder (the “Information”) is provided “AS-IS” with no warranty of any kind, express or implied. Xilinx does not assume any liability arising from your use of the Information. You are responsible for obtaining any rights you may require for your use of this Information.
  • Page 3 Overview Xilinx VC709 Board Software Requirements VC709 Setup Restoring VC709 G18 BPI Flash References Note: This presentation applies to the VC709...
  • Page 4 – BPI Slot #2 MIG XTP235 – BPI Slot #3 IBERT XTP234 – BPI Slot #4 BIST XTP232 Files for Flash Restoration – VC709 Restoring Flash Content Design Files (2015.1 C) – Available through http://www.xilinx.com/vc709 Note: Presentation applies to the VC709...

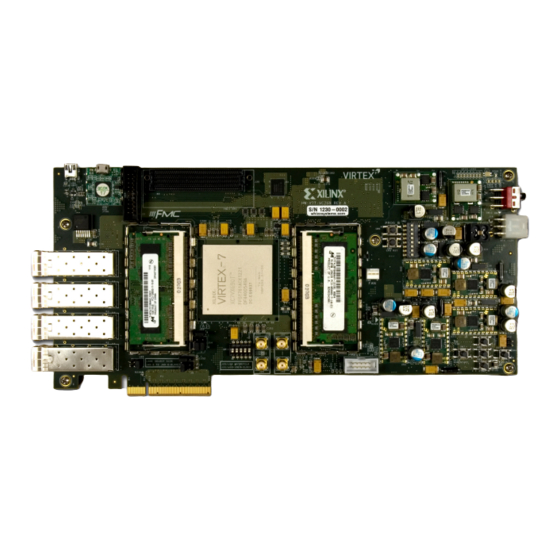

  • Page 5 Xilinx VC709 Board...
  • Page 6 Vivado Software Requirements Xilinx Vivado Design Suite 2015.1, Design Edition Note: Presentation applies to the VC709...
  • Page 7 Restoring VC709 G18 BPI Flash...
  • Page 8 VC709 Setup Connect a USB Type- A to Micro-B cable to the USB JTAG (Digilent) connector on the VC709 board – Connect this cable to your PC – Power on the VC709 board...
  • Page 9 Restoring VC709 G18 BPI Flash Unzip the VC709 Restoring Flash Content Design Files (2015.1 C) ZIP file to your C:\ drive – Available through http://www.xilinx.com/vc709 Note: Presentation applies to the VC709...
  • Page 10 Set SW11 to 00010 (1 = on, Position 1 → Position 5, left to right) – This enables Master BPI configuration from the Linear Flash • Flash A25, A24 = 00 • FPGA mode pins M[2:0] = 010 Note: Presentation applies to the VC709...
  • Page 11 Restoring VC709 G18 BPI Flash Set SW2 to 00000000 (1 = on, Position 1 → Position 8) – Some SW2 settings can cause the MultiBoot design to interfere with PROM programming...
  • Page 12 Restoring VC709 G18 BPI Flash Open a Vivado Tcl Shell: Start → All Programs → Xilinx Design Tools → Vivado 2015.1 → Vivado 2015.1 Tcl Shell Note: Presentation applies to the VC709...
  • Page 13 Restoring VC709 G18 BPI Flash In the Vivado Tcl Shell type: cd C:/vc709_restore_flash source vc709_program_bpi.tcl Note: Takes about 7 minutes...
  • Page 14 Restoring VC709 G18 BPI Flash After Restoring the flash, four designs are loaded in Flash – BPI Slot #1 Connectivity TRD • See UG966 - VC709 Connectivity Kit Getting Started Guide – BPI Slot #2 MIG • See XTP235 - VC709 MIG Tutorial –...
  • Page 15 References...
  • Page 16 References 7 Series Configuration – 7 Series FPGAs Configuration User Guide – UG470 • http://www.xilinx.com/support/documentation/user_guides/ ug470_7Series_Config.pdf...
  • Page 17 Documentation...
  • Page 18 – Design Advisory Master Answer Record for Virtex-7 FPGAs • http://www.xilinx.com/support/answers/42944.htm VC709 Documentation – Virtex-7 FPGA VC709 Evaluation Kit • http://www.xilinx.com/products/boards-and-kits/dk-v7-vc709-g.html – VC709 Getting Started Guide – UG966 • http://www.xilinx.com/support/documentation/boards_and_kits/vc709/2014_3/ ug966-v7-xt-connectivity-getting-started.pdf – VC709 User Guide – UG887 • http://www.xilinx.com/support/documentation/boards_and_kits/ vc709/ug887-vc709-eval-board-v7-fpga.pdf...
