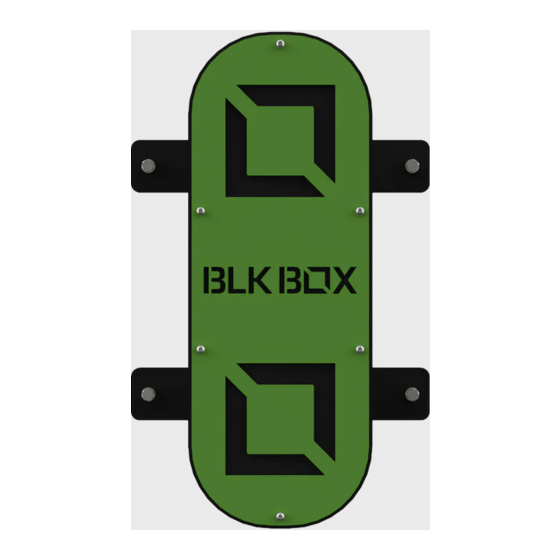

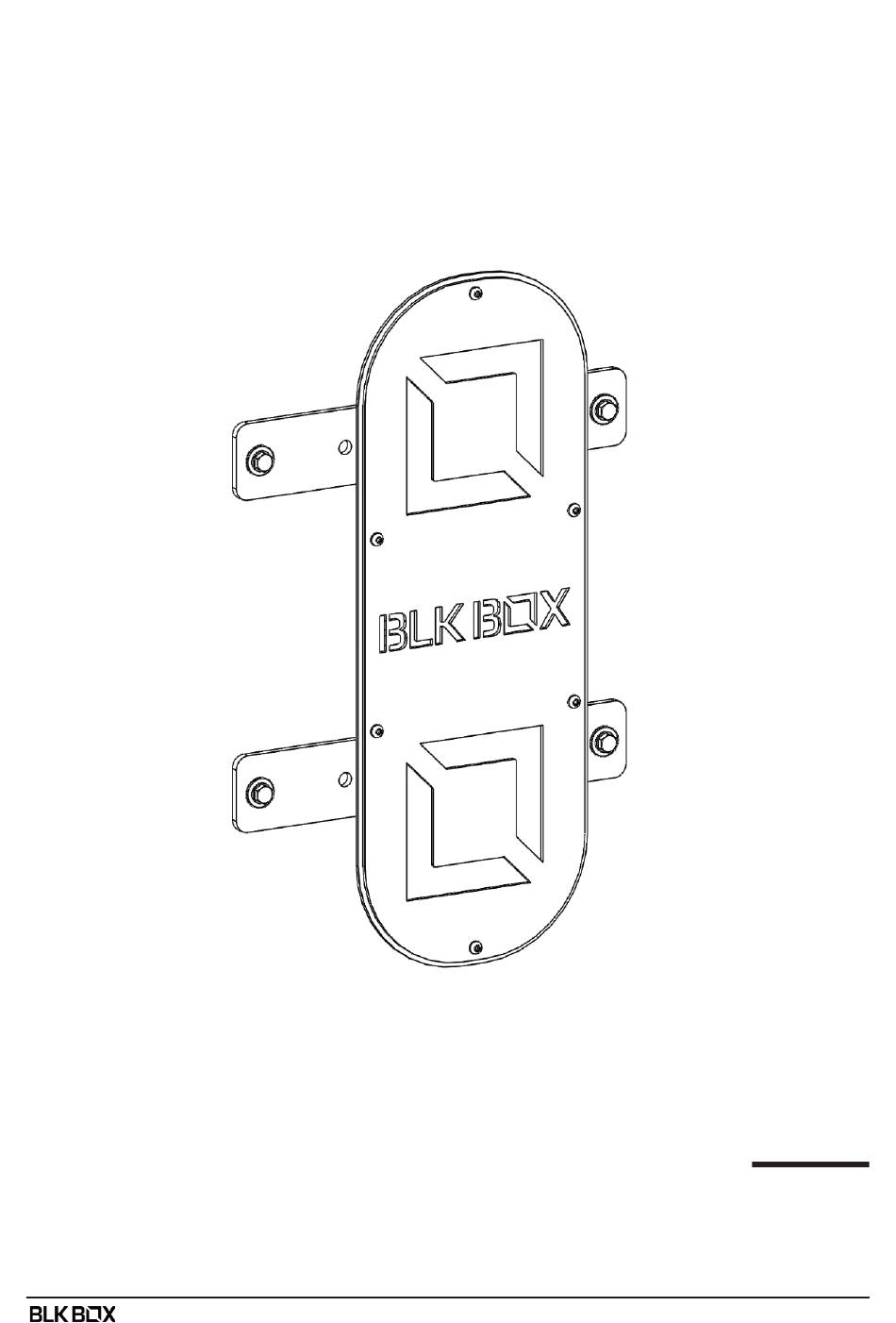

- Page 1 BLK BOX WALL MOUNTED DOUBLE WALL BALL TARGET 21-0208 PRODUCT SPECIFICATION OWNERS MANUAL & QUICK START GUIDE PRODUCT WEIGHT NOTE : PLEASE READ ALL THE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING THIS PRODUCT. DIMENSIONS 540mm x 340mm x 72mm #MADEINBELFAST...
- Page 2 WARNING SERIOUS OR FATAL INJURIES MAY OCCUR FROM INCORRECTLY ASSEMBLED EQUIPMENT. ALWAYS ENSURE BOLTS ARE TIGHTENED CORRECTLY AND ALL PARTS ARE LEVEL AND PLUMB. TO FURTHER REDUCE RISK OF INJURIES OR DEATH PLEASE USE OUR SUGGESTED TOOLS AND PERSONAL PROTECTIVE EQUIPMENT (PPE). WE SUGGEST THAT A MINIMUM OF THREE PEOPLE ARE INVOLVED IN THE ASSEMBLY OF THIS PRODUCT.
- Page 3 INSTALLATION MARK DRILLING LOCATIONS USING THE GUIDE BELOW. THE ADVISED HEIGHTS WILL ENSURE THE TARGET IS MOUNTED THAT THE TOP WALL BALL TARGET IS 10 FOOT HIGH, AND THE BOTTOM TARGET IS 9 FOOT. HOLES ARE SPACED 300 MM APART. 300 mm #MADEINBELFAST...
- Page 4 BOLT 1QTY WALL BALL TARGET (21-0224) TO THE WALL USING 4QTY SLEEVE ANCHOR BOLTS (10-0031) AND 4QTY M10 WASHERS (10-0019) DRILL HOLES AND MOUNT USING GUIDE AS SHOWN BELOW, TIGHTEN TO SPECIFIED TORQUE. 10-0031 10-0019 SLEEVE ANCHOR BOLT FITTING -DRILL 10MM HOLE IN WALL, 90MM DEEP USING PLATE AS A GUIDE.
- Page 5 1:1 SCALE FASTENERS M10x80 SLEEVE ANCHOR 10-0031 M10 FLAT WASHER 10-0019 FOR TERMS AND CONDITIONS VISIT OUR WEBSITE AT www.blkboxfitness.com/pages/terms-conditions GET IN TOUCH TEL: 028 9045 4123 EMAIL: info@blkboxfitness.com DISCOVER MORE AT: www.blkboxfitness.com #MADEINBELFAST...
