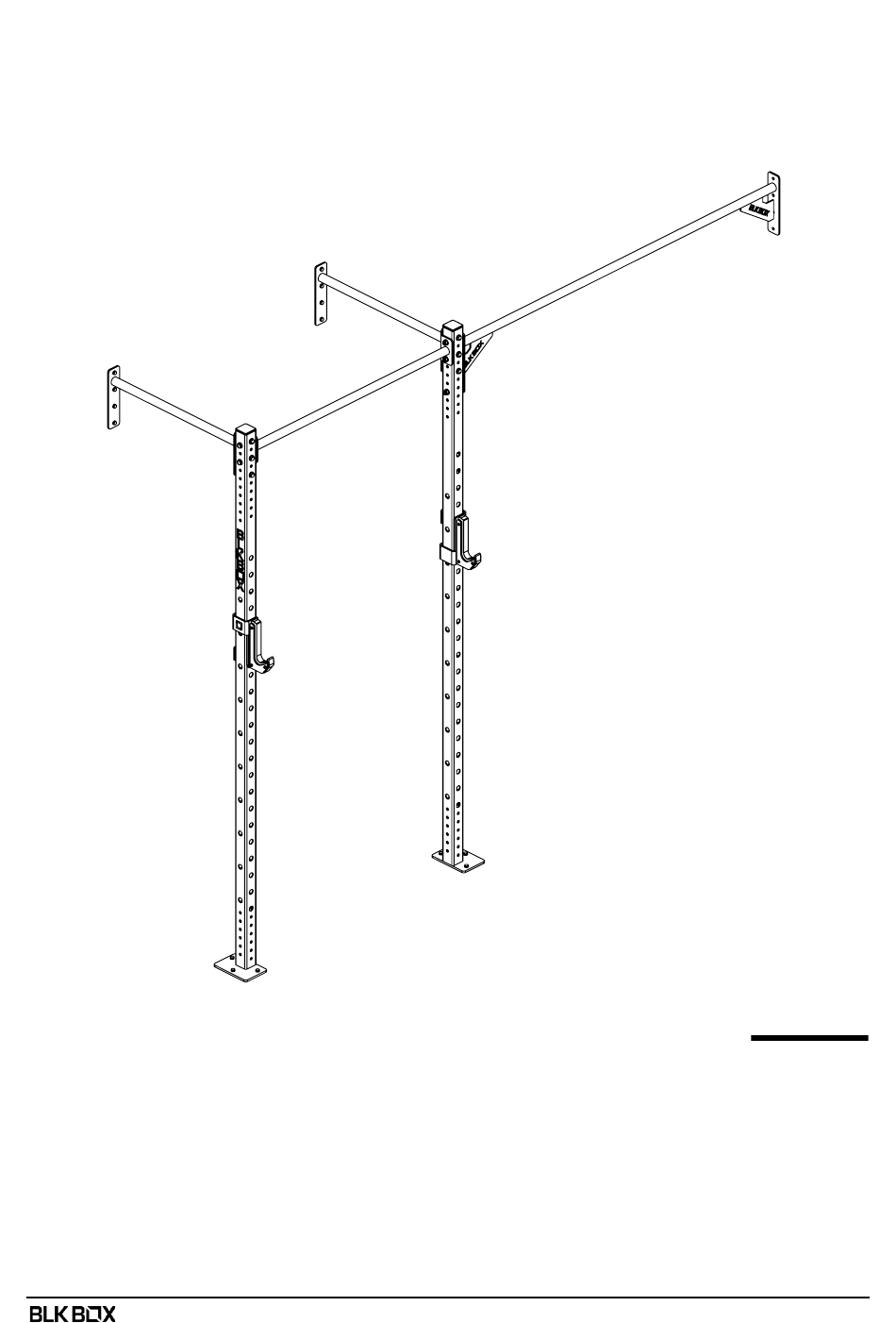

WALL MOUNTED COMPACT EXTENSION GOLIATH
OWNERS MANUAL & QUICK START GUIDE
NOTE : PLEASE READ ALL THE INSTRUCTIONS
CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
BLK BOX
21-0133-0B
PRODUCT WEIGHT
MAX USER WEIGHT
MAX USER
MAX TRAINING WEIGHT
DIMENSIONS
SAFE WORKING ZONE
PRODUCT SPECIFICATION
-
-
-
-
-
2940mm x 2408mm x 760mm
-
3690mm x 3272mm x 1960mm
#MADEINBELFAST
50kg
125kg
2
300kg
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for BLK BOX 21-0133-0B
Summary of Contents for BLK BOX 21-0133-0B
- Page 1 BLK BOX WALL MOUNTED COMPACT EXTENSION GOLIATH 21-0133-0B PRODUCT SPECIFICATION PRODUCT WEIGHT 50kg MAX USER WEIGHT 125kg MAX USER OWNERS MANUAL & QUICK START GUIDE MAX TRAINING WEIGHT 300kg DIMENSIONS 2940mm x 2408mm x 760mm NOTE : PLEASE READ ALL THE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
-
Page 2: Tools Required
WARNING SERIOUS OR FATAL INJURIES MAY OCCUR FROM INCORRECTLY ASSEMBLED EQUIPMENT. ALWAYS ENSURE BOLTS ARE TIGHTENED CORRECTLY AND ALL PARTS ARE LEVEL AND PLUMB. TO FURTHER REDUCE RISK OF INJURIES OR DEATH PLEASE USE OUR SUGGESTED TOOLS AND PERSONAL PROTECTIVE EQUIPMENT (PPE). WE SUGGEST THAT A MINIMUM OF THREE PEOPLE ARE INVOLVED IN THE ASSEMBLY OF THIS PRODUCT. - Page 3 ASSEMBLY BOLT 1QTY 1.2 SINGLE BAR CM (21-0015-0A) BETWEEN 2QTY UPRIGHTS (21-0036-0A) AND 2QTY 0.7 SINGLE BAR WM (21-0032-0B) WITH BOLTS ASSEMBLY AS SHOWN. LOGO ON UPRIGHTS ARE FACING OUTWARD AND ALL BOLTS FACING INWARDS. 10.0008 10.0019 x2 10.0024 #MADEINBELFAST...
- Page 4 POSITION RIG 1740MM AWAY FROM EXISTING RIG. BOLT 1QTY 1.8 SINGLE BAR (21-0028-0A) ON TO SIDE OF 2.4 UPRIGHTS (21-0036-0A) REUSING BOLT ASSEMBY AS SHOWN. ENSURE BOLTS FACE INWARD. 10.0008 10.0019 x2 10.0024 #MADEINBELFAST...
- Page 5 TIGHTEN ALL BOLT ASSEMBLIES WITHIN THE CIRCLE TO THE SPECIFIED TORQUE . ENSURE UPRIGHTS ARE PLUMB AND ALL SINGLE BAR ARE LEVEL. DRILL AND SECURE UPRIGHTS AND 1.2 SINGLE BAR WM (21-0032-0B) AS SHOWN IN GUIDE. SLEEVE ANCHOR BOLT FITTING DRILL HOLE VACUUM 90MM...
- Page 6 1:1 SCALE FASTENERS M10x80 SLEEVE ANCHOR 10-0031 M10x90 BOLT 10-0008 M10 FLAT WASHER NYLOCK NUT 10-0019 10-0024 FOR TERMS AND CONDITIONS VISIT OUR WEBSITE AT www.blkboxfitness.com/pages/terms-conditions GET IN TOUCH TEL: 028 9045 4123 EMAIL: info@blkboxfitness.com DISCOVER MORE AT: www.blkboxfitness.com #MADEINBELFAST...
- Page 7 THIS IS A BLANK PAGE #MADEINBELFAST...
