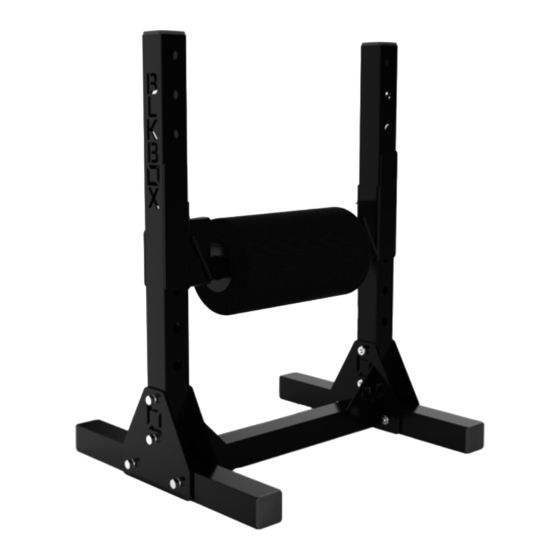

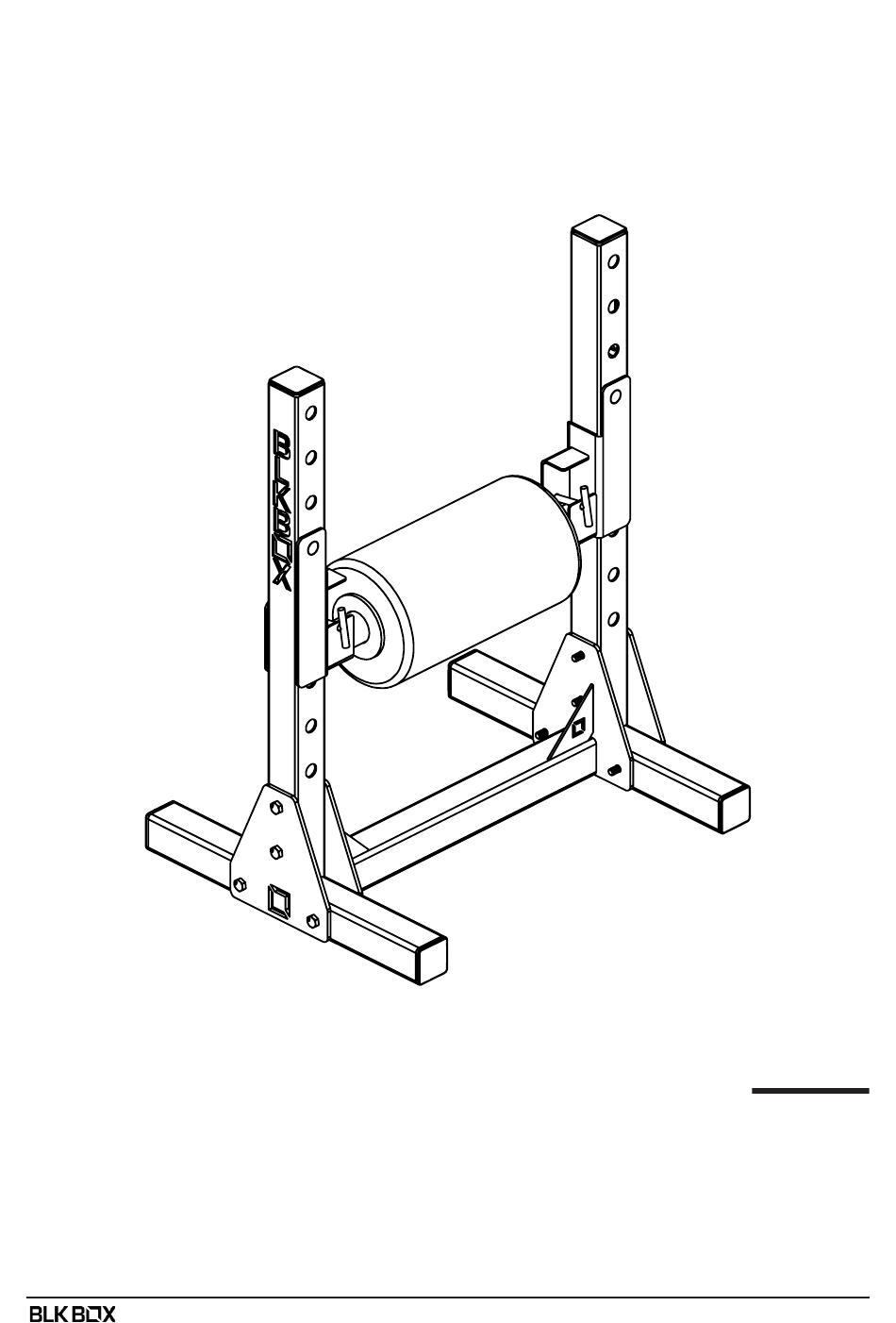

- Page 1 BLK BOX COMPACT SINGLE LEG SQUAT 21-0216 PRODUCT SPECIFICATION OWNERS MANUAL & QUICK START GUIDE PRODUCT WEIGHT 30kg DIMENSIONS 885mm x 694mm x 550mm NOTE : PLEASE READ ALL THE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING THIS PRODUCT. #MADEINBELFAST...
- Page 2 WARNING SERIOUS OR FATAL INJURIES MAY OCCUR FROM INCORRECTLY ASSEMBLED EQUIPMENT. ALWAYS ENSURE BOLTS ARE TIGHTENED CORRECTLY AND ALL PARTS ARE LEVEL AND PLUMB. TO FURTHER REDUCE RISK OF INJURIES OR DEATH PLEASE USE OUR SUGGESTED TOOLS AND PERSONAL PROTECTIVE EQUIPMENT (PPE). WE SUGGEST THAT A MINIMUM OF THREE PEOPLE ARE INVOLVED IN THE ASSEMBLY OF THIS PRODUCT.
- Page 3 ASSEMBLY BOLT 1QTY SLS COMPACT CM (21-0103) BETWEEN 2QTY SLS FRAME (21-0100) WITH 2QTY SLS PLATES (20-0098) ON THE OUTSIDE OF THE SLS FRAME USING THE BOLT ASSEMBLY BELOW. ATTACH 1QTY SINGLE LEG SQUAT BRACKET LHS (21-0101) AND 1QTY SINGLE LEG SQUAT BRACKET RHS (21-0102) TO THE FRAME (21-0100) PLACE 1QTY SQUAT PAD (21-0105) BETWEEN THE BRACKETS (21-0101/21-0102) AND SECURE WITH 2QTY BAND PEGS (21-0134)
- Page 4 1:1 SCALE FASTENERS M10x90 BOLT 10-0008 NYLOCK NUT M10 FLAT WASHER 10-0024 10-0019 FOR TERMS AND CONDITIONS VISIT OUR WEBSITE AT www.blkboxfitness.com/pages/terms-conditions GET IN TOUCH TEL: 028 9045 4123 EMAIL: info@blkboxfitness.com DISCOVER MORE AT: www.blkboxfitness.com #MADEINBELFAST...
