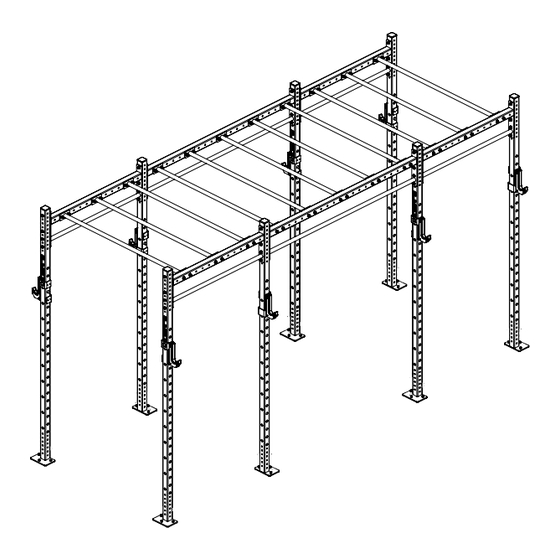

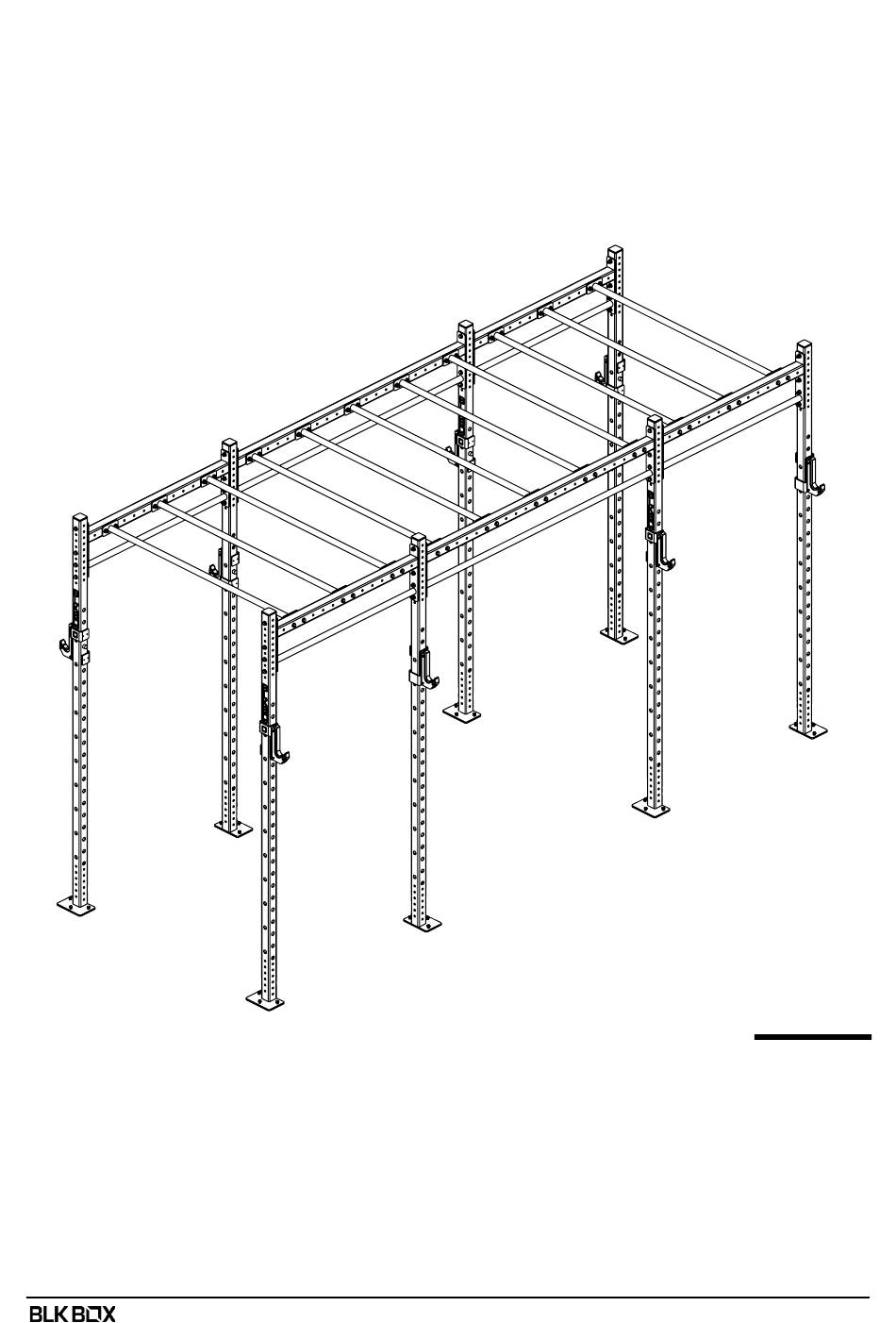

FREE STANDING MONKEY BAR 4 BAY RIG GOLIATH
OWNERS MANUAL & QUICK START GUIDE
NOTE : PLEASE READ ALL THE INSTRUCTIONS
CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
BLK BOX
21-0123-0D
PRODUCT WEIGHT
MAX USER WEIGHT
MAX USER
MAX TRAINING WEIGHT
DIMENSIONS
SAFE WORKING ZONE
PRODUCT SPECIFICATION
-
-
-
-
-
4140mm x 2408mm x 1500mm
-
5640mm x 3272mm x 3900mm
#MADEINBELFAST
240kg
125kg
6
300kg
Advertisement
Table of Contents
Related Manuals for BLK BOX 21-0123-0D
Summary of Contents for BLK BOX 21-0123-0D
- Page 1 BLK BOX FREE STANDING MONKEY BAR 4 BAY RIG GOLIATH 21-0123-0D PRODUCT SPECIFICATION PRODUCT WEIGHT 240kg MAX USER WEIGHT 125kg MAX USER OWNERS MANUAL & QUICK START GUIDE MAX TRAINING WEIGHT 300kg DIMENSIONS 4140mm x 2408mm x 1500mm NOTE : PLEASE READ ALL THE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
- Page 2 WARNING SERIOUS OR FATAL INJURIES MAY OCCUR FROM INCORRECTLY ASSEMBLED EQUIPMENT. ALWAYS ENSURE BOLTS ARE TIGHTENED CORRECTLY AND ALL PARTS ARE LEVEL AND PLUMB. TO FURTHER REDUCE RISK OF INJURIES OR DEATH PLEASE USE OUR SUGGESTED TOOLS AND PERSONAL PROTECTIVE EQUIPMENT (PPE). WE SUGGEST THAT A MINIMUM OF THREE PEOPLE ARE INVOLVED IN THE ASSEMBLY OF THIS PRODUCT.
- Page 3 ASSEMBLY BOLT 2QTY 1.2 BOX & BAR (21-0014-0A) BETWEEN 4QTY UPRIGHTS (21-0036-0A). BOLT 3QTY 1.2 BAR (21-0015-0A) STARTING ONE HOLE FROM THE END, AND LEAVING THREE HOLE IN-BETWEEN ASSEMBLY AS SHOWN. ENSURE UPRIGHTS LOGOS ARE FACING OUTWARD AND BOLTS ARE FACING INWARD. 10.0008 10.0019 x2 10.0024...
- Page 4 REPEAT STEP ONE AND PLACE RIGS 1740MM APART. #MADEINBELFAST...
- Page 5 BOLT 2QTY 1.8 BOX & BAR (21-0026-0A) TO THE 2.4 UPRIGHTS (21-0036-0A) OF THE PREVIOUS TWO ASSEMBLYS, REUSE BOLT ASSEMBLYS ON 2.4 UPRIGHTS (21-0036-0A) AS SHOWN. BOLT 5QTY 1.2 BAR (21-0015-0A) INBETWEEN 1.8 BOX & BAR (21-0026-0A). STARTING FROM THE END HOLE LEAVING THREE HOLES INBETWEEN.ENSURE BOLTS ARE FACING INWARD.
- Page 6 TIGHTEN ALL BOLT ASSEMBLIES WITHIN THE CIRCLE AS SHOWN TO SPECIFIED TORQUE. ENSURE UPRIGHTS ARE PLUMB AND DRILL AND SECURE ALL HOLES ON UPRIGHTS A SHOWN IN GUIDE. SLEEVE ANCHOR BOLT FITTING -DRILL 10MM HOLE THROUGH FLOOR COVERING, 90MM DEEP USING PLATE AS A GUIDE. -VACUUM OUT THE DUST.
- Page 7 1:1 SCALE FASTENERS M10x80 SLEEVE ANCHOR 10-0031 M10X90 BOLT 10-0008 M10 FLAT WASHER NYLOCK NUT 10-0019 10-0024 FOR TERMS AND CONDITIONS VISIT OUR WEBSITE AT www.blkboxfitness.com/pages/terms-conditions GET IN TOUCH TEL: 028 9045 4123 EMAIL: info@blkboxfitness.com DISCOVER MORE AT: www.blkboxfitness.com #MADEINBELFAST...
