INSTALLATION AND OPERATION MANUAL
ESP SERIES
POWER AMPLIFIER ES480P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESP Series and is the answer not in the manual?

Questions and answers

Related Manuals for AUSTRALIAN MONITOR ESP Series

Summary of Contents for AUSTRALIAN MONITOR ESP Series

  • Page 1 INSTALLATION AND OPERATION MANUAL ESP SERIES POWER AMPLIFIER ES480P...

  • Page 2: Important Safety Information

    15. N'utilisez que les pièces jointes / accessoires spécifiés par le fabricant 16. Débranchez cet appareil pendant les orages ou lorsqu'il n'est pas utilisé pendant de longues périodes. 17. Confiez toute réparation à un personnel qualifié utilisation sécurisee. ESP SERIES INSTALLATION AND OPERATION MANUAL...

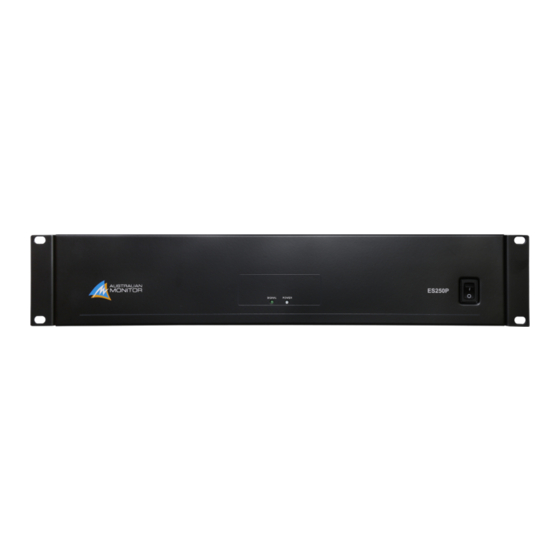

  • Page 3 The ES480P is a 2RU 2 channel 120W amplifier. This amplifier features 100V Rear Panel line and 4Ω output. Installation The Australian Monitor ESP series gives the contractor a low cost Troubleshooting solution in applications that are price sensitive but still require Dimensions a high quality of sound reproduction and reliability.

  • Page 4: Protection Features

    PROTECTION FEATURES Short-circuit protection • • Over load protection • Thermal protection • Input limiter ES480P AMPLIFIER BLOCK DIAGRAM FEMALE INPUT AMPLIFER LEVEL SPEAKER LIMITER (CLASS D) (4OHMS) OT LINK MALE OUTPUT SPEAKER TRANSFORMER (100V) ESP SERIES INSTALLATION AND OPERATION MANUAL...

  • Page 5: Front Panel

    This LED indicates that the amplifier is protection due to a short circuit or overload condition at the output terminals. POWER SWITCH This switches the power to the unit on and off. The up position is on. ESP SERIES INSTALLATION AND OPERATION MANUAL...

  • Page 6: Rear Panel

    This is a standard IEC 60320-C14 socket. It accepts a standard IEC mains cable, provided. The fuse drawer contains the mains fuse and a spare. Consult the specification section for fuse ratings. Always replace the fuse with one of the same value and type. Always disconnect power to the amplifier before replacing fuses. ESP SERIES INSTALLATION AND OPERATION MANUAL...

  • Page 7: Installation

    INSTALLATION POWER REQUIREMENTS Power consumption for your model of the ESP Series amplifier is indicated on the rear panel for 1/8th output power. Ensure that your mains voltage is the same as the rear panel mains voltage marker (±10%). MOUNTING The ESP Series amplifiers are two rack units high (2U) and will fit a standard EIA 19”...

  • Page 8: Troubleshooting

    Reduce volume levels on rear panel No sound but amplifier is on Volume controls down Check volume controls Amplifier has overheated Check for obstructions above and below Make sure the amplifier is well ventilated ESP SERIES INSTALLATION AND OPERATION MANUAL...
  • Page 9 DIMENSIONS ESP SERIES INSTALLATION AND OPERATION MANUAL...

  • Page 10: Specifications

    -60 dBV (1KHz to 20KHz) AUDIO INPUT SENSITIVITY 150mV Rated Power, 100V Output NO LOAD VOLT.4Ω 15.7V 4Ω LOADED VOLT 4Ω 15.2V 4Ω LED SIGNAL -40dBV INPUT IMPEDANCE 20kΩ INPUT CMRR > 59dBV 150mV ESP SERIES INSTALLATION AND OPERATION MANUAL...
  • Page 11 0°C to 40°C (95% RH) FINISH Powder Coated Steel COLOUR Black (Satin) ACCESSORIES IEC Mains cable, Rubber Feet x 4 APPROVALS CE, IEC, RCM Due to continuous improvements, all specifications are subject to change ESP SERIES INSTALLATION AND OPERATION MANUAL...
  • Page 12 ENGINEERED BY AUSTRALIAN MONITOR Address: Unit 1, 2 Daydream Street, Warriewood NSW 2102 Australia Website: www.australianmonitor.com.au International enquiries email: international@australianmonitor.com.au ABN 86 003 231 187...
