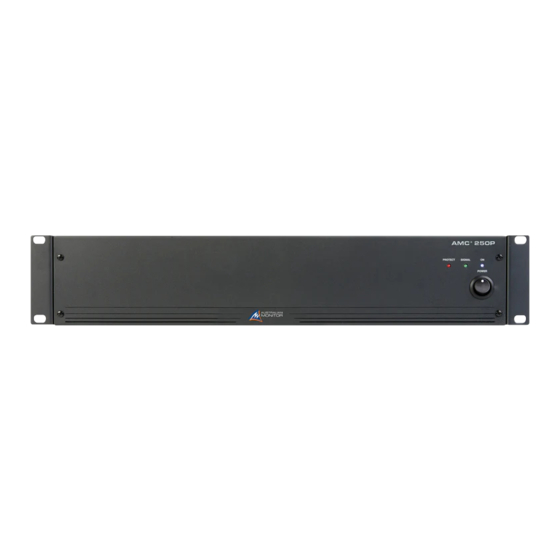

AUSTRALIAN MONITOR ACM250P Operating Manual

AUSTRALIAN MONITOR ACM250P Operating Manual

250w power amplifier

Advertisement

Quick Links

ACM250P
250w Power Amplifier
PROTECT
SIGNAL
ON
POWER
Operating Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACM250P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AUSTRALIAN MONITOR ACM250P

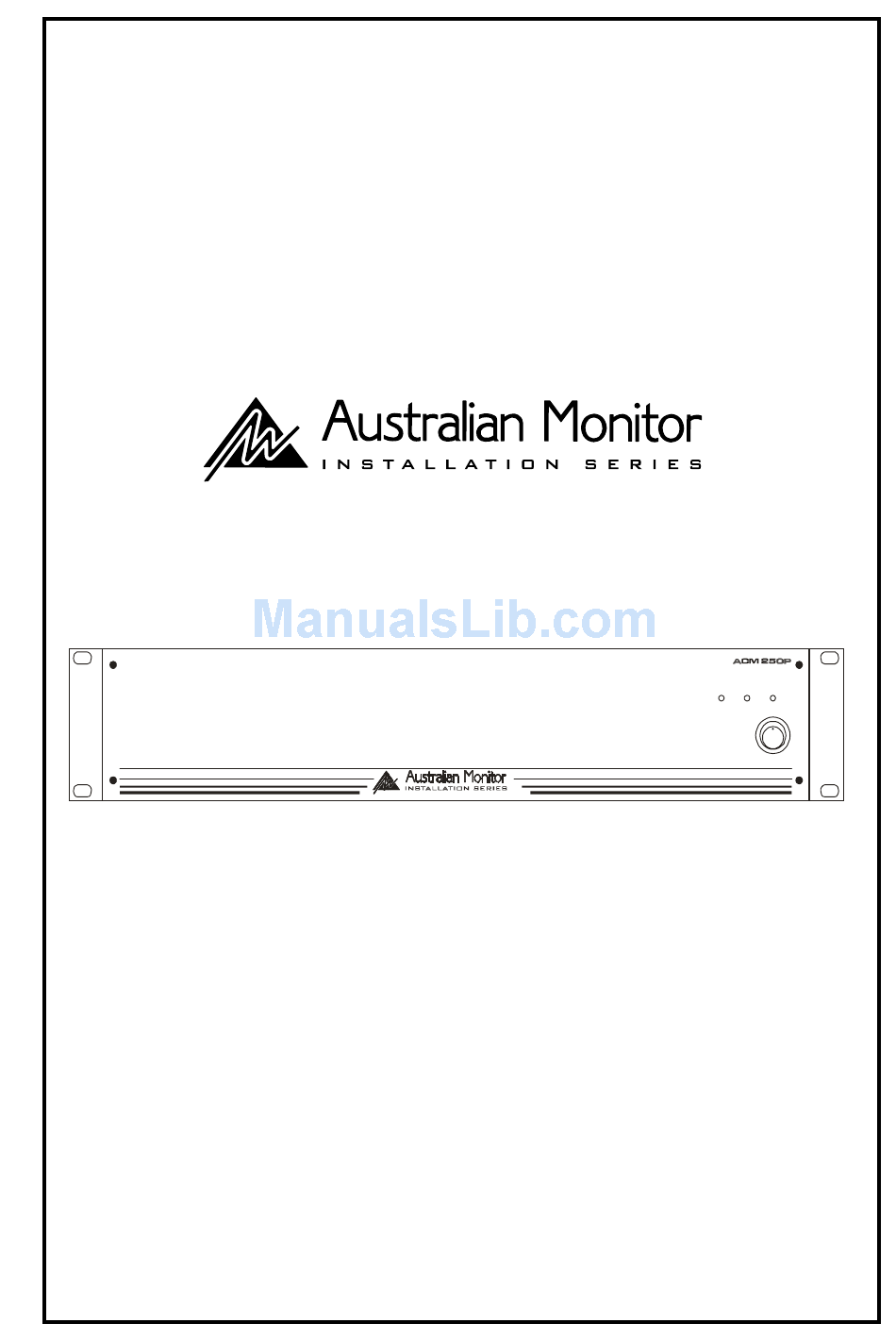

  • Page 1 ACM250P 250w Power Amplifier PROTECT SIGNAL POWER Operating Manual...
  • Page 2: Product Description

    The ACM250P features a line level input (with parallel output) and is normally used with mixers, mixer amplifiers or other power amplifiers. The ACM250P delivers 250 watts into a load of 4 ohms, 70 or 100 volt line.
  • Page 3: Rack Mounting

    Rack Mounting The ACM250P is supplied with rack ears attached to allow mounting within a standard 19” equipment rack. As is the case with almost all audio products, adequate ventilation and air flow is required. When installing multiple ACM250P power amplifiers within the one rack, it is recommended that at least one rack unit of ventilation space is left between every two amplifiers.
  • Page 4 XLR Audio Input and Parallel Output The ACM250P includes both male and female 3 pin XLR connectors. While the female is normally used as the input to the amplifier, both XLR’s are connected in parallel so either will work. When signal is connected to one XLR, the other XLR becomes a line level output allowing the input signal to be distributed (split) to other amplifiers.
  • Page 5: Important Safety Information

    Important Safety Information 13. Do not block fan intake or exhaust ports. Do not 1. Save the carton and packing material even if the equip- operate equipment on a surface or in an environment ment has arrived in good condition. Should you ever which may impede the normal flow of air around the need to ship the unit, use only the original factory pack- ing.
  • Page 6 Engineered by Audio Telex Communications Pty Ltd, Sydney, Australia A.B.N. 78 001 345 482 Inc in NSW www.audiotelex.com.au Export Sales & Corporate Head Office Private Bag 149, Silverwater NSW 1811 149 Beaconsfield Street, Silverwater NSW 2128 Australia Ph: 61-2- 9647 1411 Fax: 61-2-9748 2537 E-mail: ho@audiotelex.com.au Sydney (NSW &...
