AUSTRALIAN MONITOR ESP Series Installation And Operation Manual
Hide thumbs
Also See for ESP Series:
- Installation and operation manual (13 pages) ,
- Installation and operation manual (13 pages)
Subscribe to Our Youtube Channel
Related Manuals for AUSTRALIAN MONITOR ESP Series
Summary of Contents for AUSTRALIAN MONITOR ESP Series
- Page 1 INSTALLATION AND OPERATION MANUAL ESP SERIES POWER AMPLIFIERS ES120P ES250P ES500P...
-
Page 2: Important Safety Information
Assurez-vous que l’appareil est hors tension avant de connecter les hauts parleurs. Veri ez que la sortie des enceintes soit protégées contre un contact physique. Respecter les polarités des terminaux ainsi que le câblage des enceintes pendant le fonctionnement afin d’assurer une utilisation sécurisee. ESP SERIES INSTALLATION AND OPERATION MANUAL... -
Page 3: Introduction & Contents
Congratulations on choosing Australian Monitor for your Rear Panel professional amplification requirements. Installation Available in 120, 250 and 500 watt versions, the ESP series are 2 RU Troubleshooting power amplifiers, featuring 100 volt line and 4 ohm outputs. Dimensions: ES120P, ES250P... -
Page 4: Protection Features
ES500P - 1 x 500W • 100V and 4Ω outputs • XLR Through Output • Level Adjustment • 2 RU PROTECTION FEATURES Short-circuit protection • • Over load protection • Thermal protection ESP AMPLIFIER BLOCK DIAGRAM ESP SERIES INSTALLATION AND OPERATION MANUAL... -

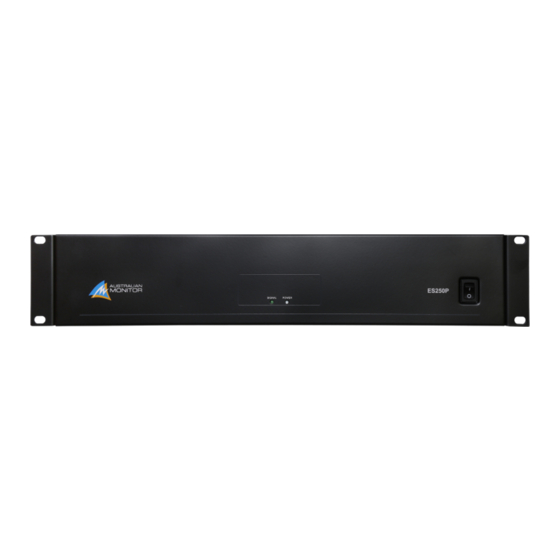

Page 5: Front Panel
This LED indicates the unit is outputting a signal. POWER This LED indicates the unit is on. POWER SWITCH This switches the power to the unit on and off. The up position is on. ESP SERIES INSTALLATION AND OPERATION MANUAL... -
Page 6: Rear Panel
This is a standard IEC 60320-C14 socket. It accepts a standard IEC mains cable, provided. The fuse drawer contains the mains fuse and a spare. Consult the specification section for fuse ratings. Always replace the fuse with one of the same value and type. Always disconnect power to the amplifier before replacing fuses. ESP SERIES INSTALLATION AND OPERATION MANUAL... -
Page 7: Installation
INSTALLATION POWER REQUIREMENTS Power consumption for your model of the ESP Series amplifier is indicated on the rear panel for 1/8th output power. Ensure that your mains voltage is the same as the rear panel mains voltage marker (±10%). MOUNTING The ESP Series amplifiers are two rack units high (2U) and will fit a standard EIA 19”... -
Page 8: Troubleshooting
No sound but amplifier is on Volume controls down Check volume controls Amplifier has overheated Check for obstructions above and below Make sure the amplifier is well ventilated DC fuse(s) blown Refer product to local Australian Monitor dealer ESP SERIES INSTALLATION AND OPERATION MANUAL... - Page 9 DIMENSIONS: ES120P/ ES250P ES250P ES250P ES120P ESP SERIES INSTALLATION AND OPERATION MANUAL...
- Page 10 DIMENSIONS: ES500P ESP SERIES INSTALLATION AND OPERATION MANUAL...
- Page 11 AUDIO INPUT SENSITIVITY 160mVrms Rated Power, 100V Output 16Vrms AUDIO INPUT MAXIMUM LEVEL INPUT/OUTPUTS AUDIO INPUT Balanced XLR per channel Balanced XLR per channel AUDIO THROUGH SPEAKER OUTPUT 6 pin Screw Terminal per channel ESP SERIES INSTALLATION AND OPERATION MANUAL...
- Page 12 0°C to 40°C (95% RH) 0°C to 40°C (95% RH) COOLING SYSTEM Fan assisted convection cooling FINISH Powder Coated Steel COLOUR Black IEC Mains cable, Rubber Feet x 4 ACCESSORIES APPROVALS CE, IEC, RCM ESP SERIES INSTALLATION AND OPERATION MANUAL...
- Page 13 3dB below clipping, Freq Band. 20kHz BW, Unity Gain, 100V. FREQ BAND A-Weighted AUDIO SENSITIVITY AUDIO INPUT SENSITIVITY Rated Power, 100V Output LED SIGNAL -40dBr AUDIO MISCELLANEOUS 44KΩ Balanced, line-to-line INPUT IMPEDANCE 4K7Ω Unbalanced, lint-to-GND INPUT CMRR > 55dB 20Hz ~ 20kHz ESP SERIES INSTALLATION AND OPERATION MANUAL...
- Page 14 0°C to 40°C (95% RH) FINISH Powder Coated Steel COLOUR Black (Satin) IEC Mains cable (AU, UK, EUR), ACCESSORIES Rubber Feet x 4 APPROVALS CE, IEC, RCM Due to continuous improvements, all specifications are subject to change ESP SERIES INSTALLATION AND OPERATION MANUAL...
- Page 15 NOTES ESP SERIES INSTALLATION AND OPERATION MANUAL...
- Page 16 ENGINEERED BY AUSTRALIAN MONITOR Address: Unit 1, 2 Daydream Street, Warriewood NSW 2102 Australia Website: www.australianmonitor.com.au International enquiries email: international@australianmonitor.com.au ABN 86 003 231 187...
