Summary of Contents for AUSTRALIAN MONITOR ACM250

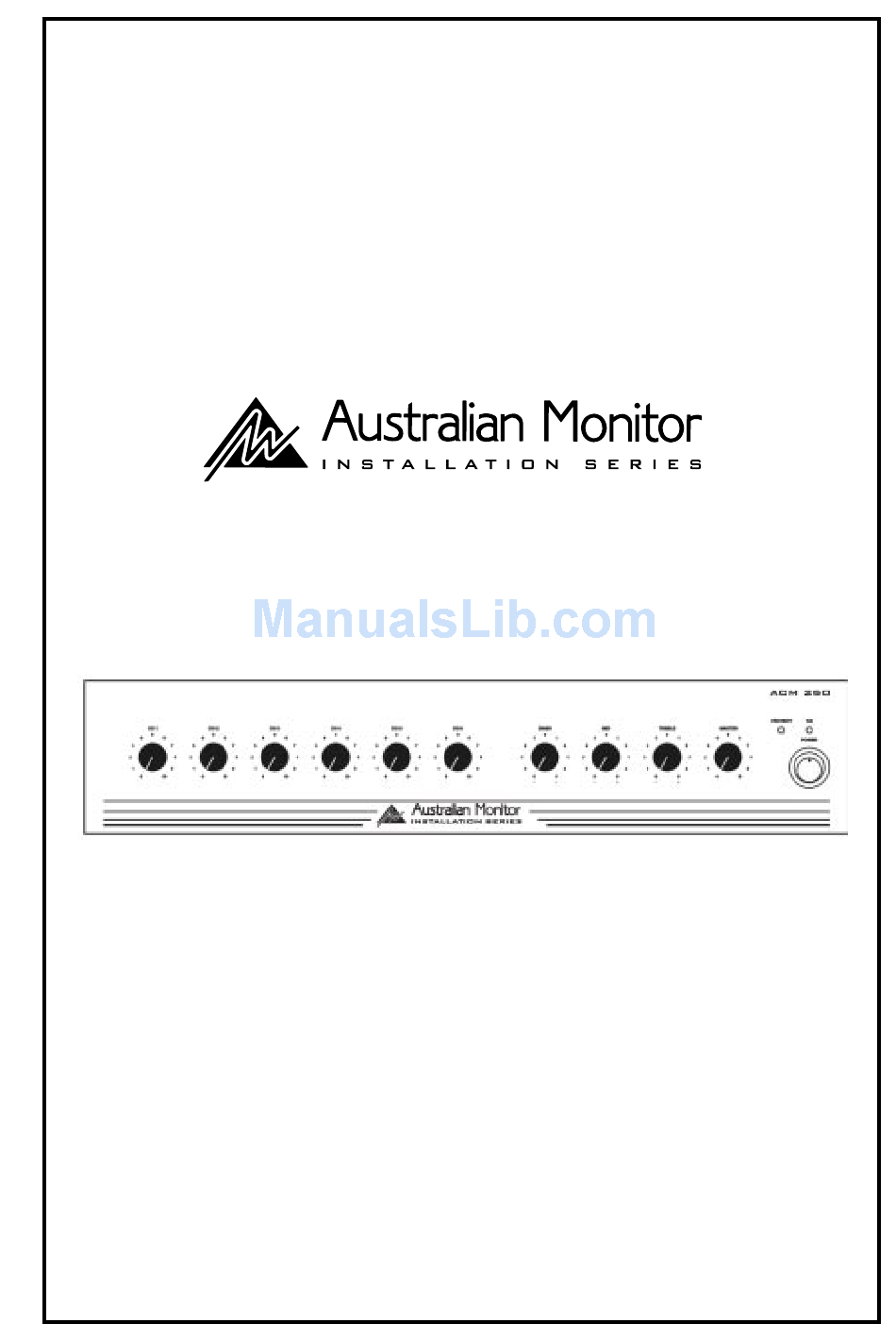

- Page 1 ACM250 250w Mixer Amplifier Operating Manual...
-
Page 2: Product Description
60Hz with factory modification) and may be desk or rack mounted (rack mount kit supplied). The ACM250 delivers 250 watts into a load of 4 ohms, 70 or 100 volt line. As standard, the ACM250 is supplied self standing with rubber feet. They may be stacked to a maximum of four units high. -
Page 3: Power Switch
Protect LED A feature of the ACM250 is high temperature protection. In most applications, the internal cooling fan will most probably never switch on. When used with demanding speaker loads or in difficult operating environments, the fan may regularly switch on to cool the amp down and then switch off again. -
Page 4: Other Features
The balanced XLR line level output provides a maximum of 700mV to allow for connection to up to 6 power amplifiers. Simply run a balanced cable from the line out of the ACM250 to the line input of the power amplifier. Pin connections are: pin #1-earth;... - Page 5 Fuse Sizes Mains, 240 VAC: 6 Amperes Slow Blow DC: 10 Amperes Slow Blow...
-
Page 6: Important Safety Information
Important Safety Information 13. Do not block fan intake or exhaust ports. Do not 1. Save the carton and packing material even if the equip- operate equipment on a surface or in an environment ment has arrived in good condition. Should you ever which may impede the normal flow of air around the need to ship the unit, use only the original factory pack- ing. - Page 7 Engineered by Audio Telex Communications Pty Ltd, Sydney, Australia A.B.N. 78 001 345 482 Inc in NSW www.audiotelex.com.au Export Sales & Corporate Head Office Private Bag 149, Silverwater NSW 1811 149 Beaconsfield Street, Silverwater NSW 2128 Australia Ph: 61-2- 9647 1411 Fax: 61-2-9748 2537 E-mail: ho@audiotelex.com.au Sydney (NSW &...
