Summary of Contents for AUSTRALIAN MONITOR ACM60

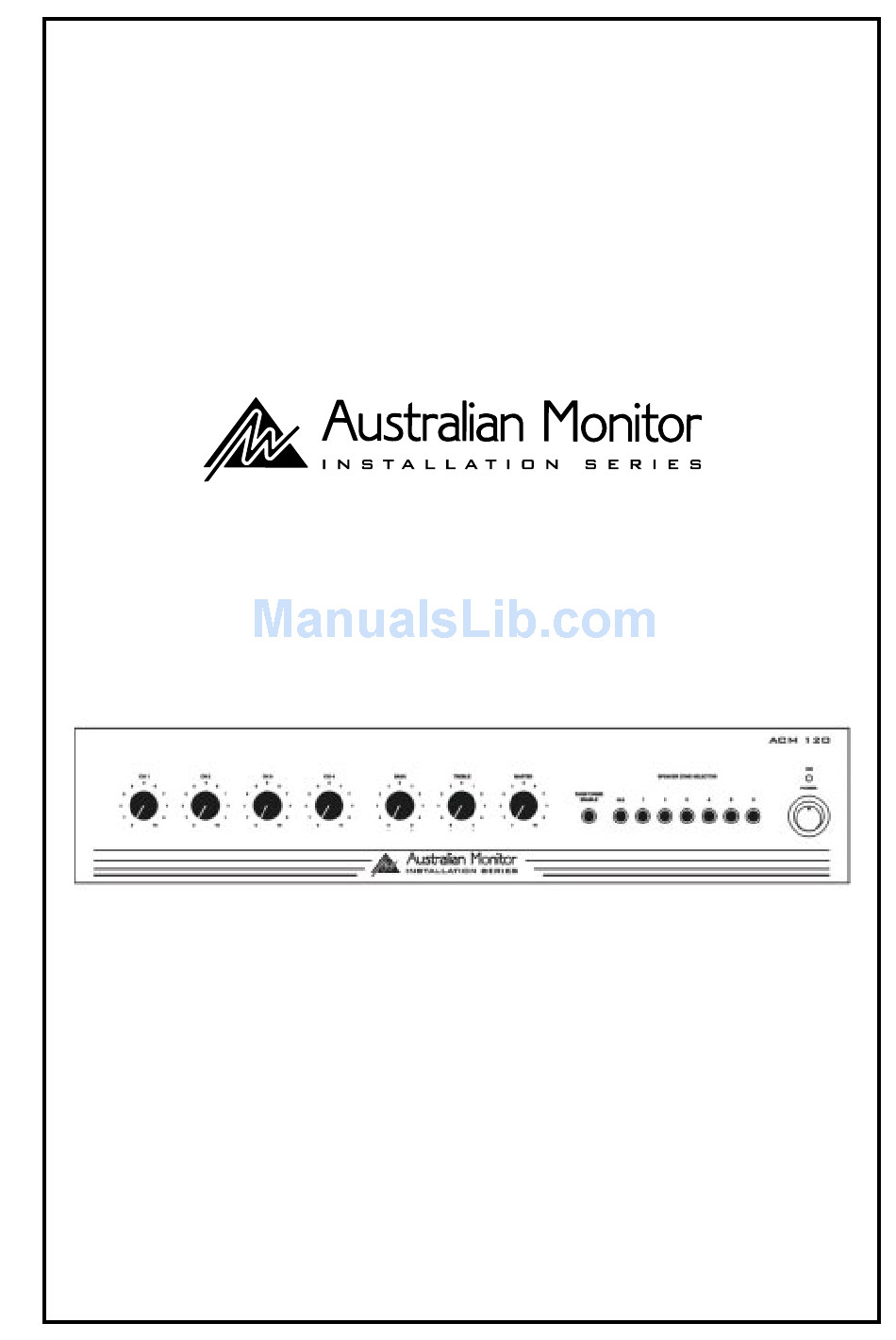

- Page 1 ACM60, 60w Mixer Amplifier & ACM120, 120w Mixer Amplifier Operating Manual...
-
Page 2: Product Description

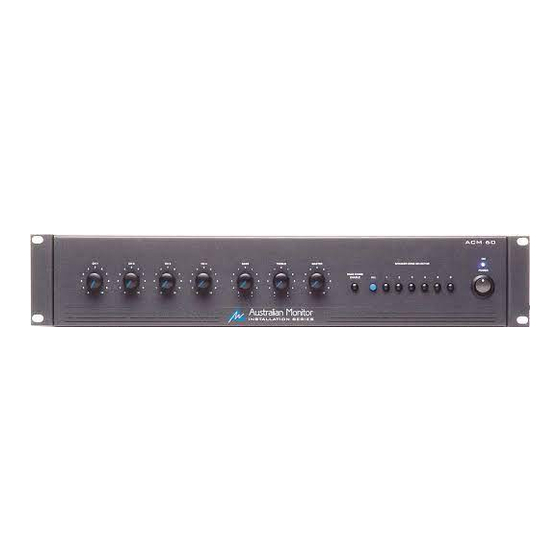

VAC, 50Hz (or 115 VAC, 60Hz with factory modification) and may be desk or rack mounted (rack mount kit supplied fitted). Both amplifiers incorporate a 6 zone 100 volt line speaker zone selector with all call. The ACM60 will deliver 60 watts into a load of 8 ohms, 70 or 100 volt line. -
Page 3: Power Switch
The operating voltage is 230/240 VAC @ 50 Hz or 115 VAC @ 60 Hz with factory modification. The inlet is equipped with an inbuilt AC fuse holder fitted with a 4 amp fuse (ACM120) or a 2 amp fuse (ACM60) plus a spare within the holder. -
Page 4: Tape Output
The balanced XLR line level output provides a maximum of 700mV to allow for connection to up to 6 power amplifiers. Simply run a balanced cable from the line out of the ACM60 or ACM120 to the line input of the power amplifier. Pin connections are: pin #1-earth;... -
Page 5: Other Features
Muting A VOX muting card is installed in the ACM60 and ACM120. This feature provides automatic muting of some channels when others are active. It is normally used so that a paging microphone can have priority (by muting) over background music. -
Page 6: Important Safety Information
Important Safety Information 13. Do not block fan intake or exhaust ports. Do not 1. Save the carton and packing material even if the equip- operate equipment on a surface or in an environment ment has arrived in good condition. Should you ever which may impede the normal flow of air around the need to ship the unit, use only the original factory pack- ing. - Page 7 Engineered by Audio Telex Communications Pty Ltd, Sydney, Australia A.B.N. 78 001 345 482 Inc in NSW www.audiotelex.com.au Export Sales & Corporate Head Office Private Bag 149, Silverwater NSW 1811 149 Beaconsfield Street, Silverwater NSW 2128 Australia Ph: 61-2- 9647 1411 Fax: 61-2-9748 2537 E-mail: ho@audiotelex.com.au Sydney (NSW &...
