- Page 1 INSTALLATION AND OPERATION MANUAL AMC+ SERIES POWER AMPLIFIERS AMC+120P AMC+250P...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION PRÉCAUTIONS DURANT UTILISATION Read these instructions. LISEZ ces instructions. Keep these instructions. Tenez ces instructions. Heed all warnings. Notez tous les avertissements. Follow all instructions. Suivez toutes les avertissements. Do not use this apparatus near water. N’utilisez pas ce produit près de l’eau (la piscine, la plage, le lac, etc.). Clean only with dry cloth. -
Page 3: Introduction And Contents
INTRODUCTION AND CONTENTS AMC+ SERIES INTRODUCTION The Australian Monitor Installation Series AMC+ range of booster FRONT PANEL amplifiers take the rugged reliability of the famous AMIS range and deliver the same high quality audio reinforcement, in a low cost, REAR PANEL 2 rack unit package. -
Page 4: Front Panels
FRONT PANELS This LED indicates the unit is powered “on”. Power This switch switches power on or off the mains. The up position is on. Vents Air intake for fan cooling on AMC+250P only. To indicate hazards arising from dangerous voltages. Pour indiquer les risques résultant de tensions dangereuses. -
Page 5: Rear Panel

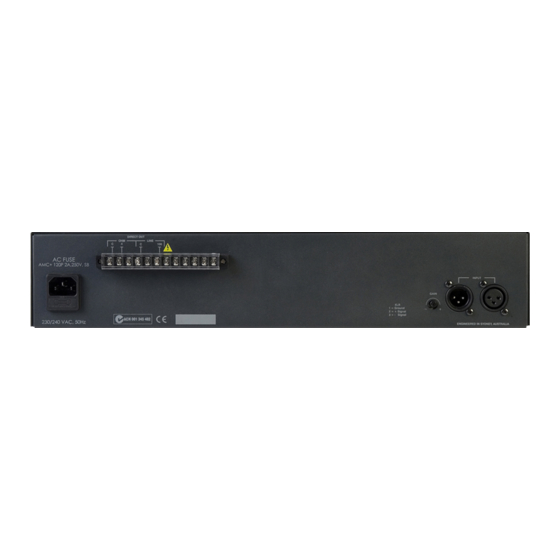

REAR PANEL This terminal is hazardous live and that external wiring connected to these terminals requires installation by an instructed person. CLASS 2 WIRING Audio Amplifier Model: AMC+120P Rated Value: 115V~60Hz 460W CONFORMS TO ANSI/UL SYD.60065 230V~ 50Hz 460W Manufacture Date:... -
Page 6: Installation
When multiple amplifiers are mounted in a rack, exhaust fans should amplificateurs sont installés dans un rack, il est recommandé d’installer les be used on the rack. Airflow for cooling the AMC+120P is by convection from ventilateurs . bottom to top. Airflow for cooling the AMC+250P is by fan from front to side. -
Page 7: Direct Output
0.35mm2) or spade lugs. The following table should be used as a guideline for cable sizes. Regulations in your area may require different gauged wire and should be checked before using. OUTPUT DISTANCE WIRE SIZE AMC+120P AMC+250P 100V Up to 50m AWG24(0.2mm2) AWG22(0.35mm2) 50m–200m... -
Page 8: Troubleshooting
Amplifier has overheated Check for obstructions above and below (AMC 60, AMC 120 AMC 250 only) Make sure the amplifier is well ventilated DC fuse(s) blown Refer product to local Australian Monitor dealer PAGE 8 SERIES INSTALLATION AND OPERATION MANUAL... -
Page 9: Block Diagram
BLOCK DIAGRAM SERIES INSTALLATION AND OPERATION MANUAL PAGE 9... - Page 10 DIMENSIONS Dimensions the same for both the AMC + 120P and the AMC + 250P CLASS 2 WIRING Audio Amplifier Model: AMC+120P Rated Value: 115V~60Hz 460W CONFORMS TO ANSI/UL SYD.60065 230V~ 50Hz 460W Manufacture Date: CERTIFIED TO Made In China CAN/CSA STD.C22.2...
-
Page 11: Specifications
SPECIFICATIONS 120P 250P POWER OUTPUT (0.5%THD, 1KHZ) 120W 250W S/N RATIO >88dB >88dB FREQ RESPONSE (-3dB +1dB) 50Hz-20kHz 40Hz-20kHz THD (1KHz, -1dB) Better than 0.5% Better than 0.5% INPUT SENSITIVITY 150mV 150mV (pot @ full) IMPEDANCE HEADROOM 10dB 10dB FUSES MAINS (115V) MAINS (230V) 10A (x2) - Page 12 NOTES PAGE 12 SERIES INSTALLATION AND OPERATION MANUAL...
- Page 13 NOTES SERIES INSTALLATION AND OPERATION MANUAL PAGE 13...
- Page 14 ENGINEERED BY AUSTRALIAN MONITOR Address: 1 Clyde Street, Silverwater, Sydney NSW 2128 Australia. Private Bag 149, Silverwater NSW 1811 ABN 78 001 345 482 Website: www.australianmonitor.com.au International enquiries email: international@australianmonitor.com.au DISTRIBUTED IN AUSTRALIA AND NEW ZEALAND BY HILLS SVL www.hillssvl.com.au...
