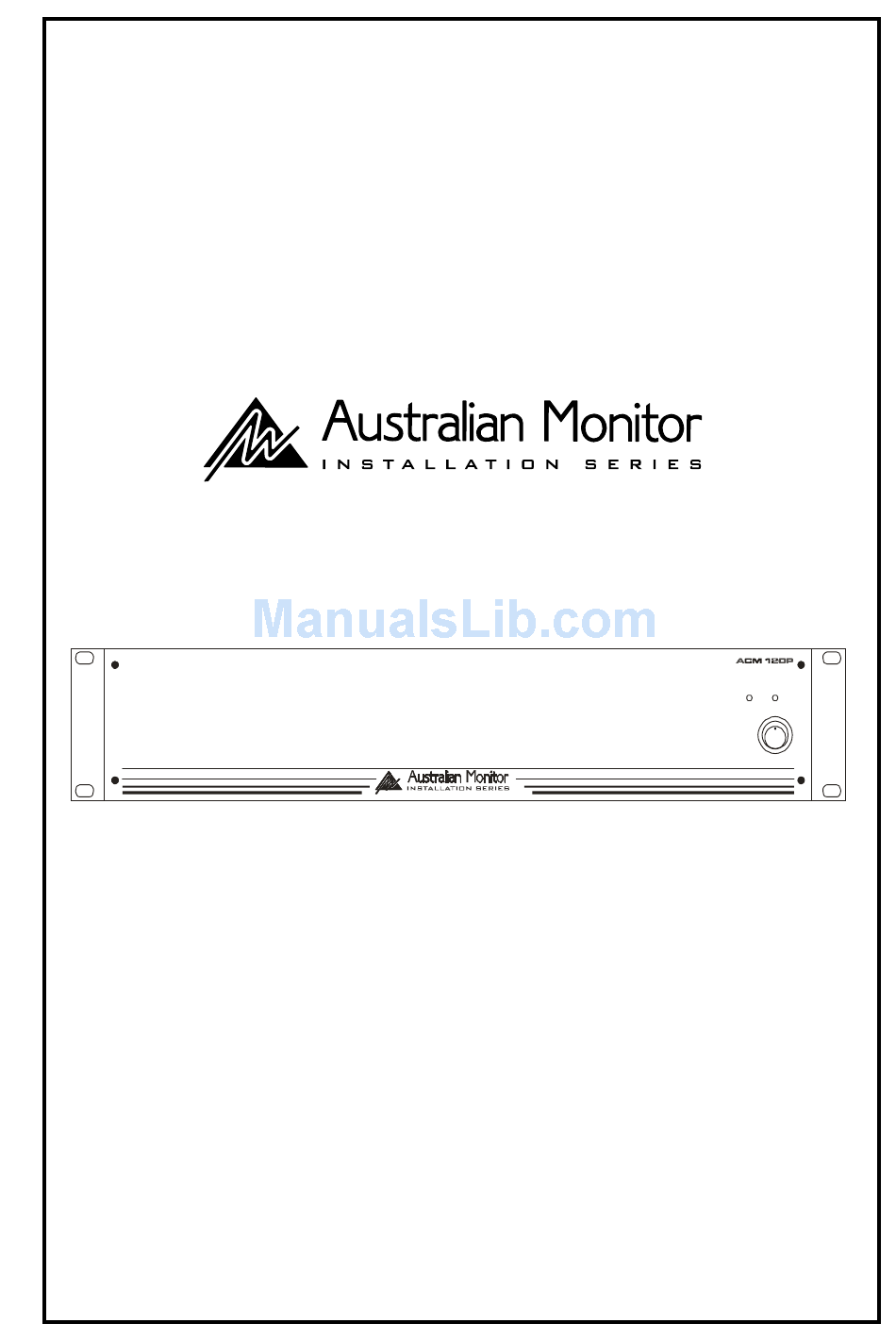

- Page 1 ACM120P 120w Power Amplifier SIGNAL POWER Operating Manual...
-
Page 2: Product Description
(4 or 8 ohm) or 70v/100v line speaker systems. The amplifier can be mounted in a standard 19” equipment rack (rack ears supplied) or it can be used on a shelf or table. The ACM120P features a line level input (with parallel output) and is normally used with mixers, mixer amplifiers or other power amplifiers. -
Page 3: Rear Panel Features
XLR Audio Input and Parallel Output The ACM120P includes both male and female 3 pin XLR connectors. While the female is normally used as the input to the amplifier, both XLR’s are connected in parallel so either will work. When signal is connected to one XLR, the other XLR becomes a line level output allowing the input signal to be distributed (split) to other amplifiers. - Page 4 Fuse Sizes Mains, 240VAC: 4 Amperes Slow Blow. Notes: The DC fuse is located on the circuit board. This is a feature of the ACM series amplifier, which is equipped with a current limitting circuit preventing excessive DC current, thus eliminating the risk of blowing high tensions fuses. In the unlikely event that the DC fuse actuates, the output transistors should be checked, as it is probable that the amplifier has been subjected to very extreme conditions.
-
Page 5: Important Safety Information
Important Safety Information 13. Do not block fan intake or exhaust ports. Do not 1. Save the carton and packing material even if the equip- operate equipment on a surface or in an environment ment has arrived in good condition. Should you ever which may impede the normal flow of air around the need to ship the unit, use only the original factory pack- ing. - Page 6 Engineered by Audio Telex Communications Pty Ltd, Sydney, Australia A.B.N. 78 001 345 482 Inc in NSW www.audiotelex.com.au Export Sales & Corporate Head Office Private Bag 149, Silverwater NSW 1811 149 Beaconsfield Street, Silverwater NSW 2128 Australia Ph: 61-2- 9647 1411 Fax: 61-2-9748 2537 E-mail: ho@audiotelex.com.au Sydney (NSW &...
