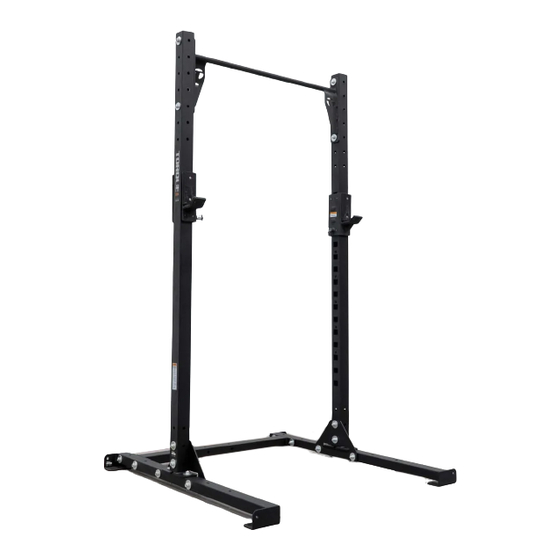

X-GYM HIGH SQUAT RACK ASSEMBLY GUIDE
VERSION: XGYM-HSR
PART #: 5726201-B
XGYM-HSR-1.0
XGYM-HSR-3.0
XGYM-HSR-5.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the XGYM-HSR Series and is the answer not in the manual?

Questions and answers

Related Manuals for Torque XGYM-HSR Series

Summary of Contents for Torque XGYM-HSR Series

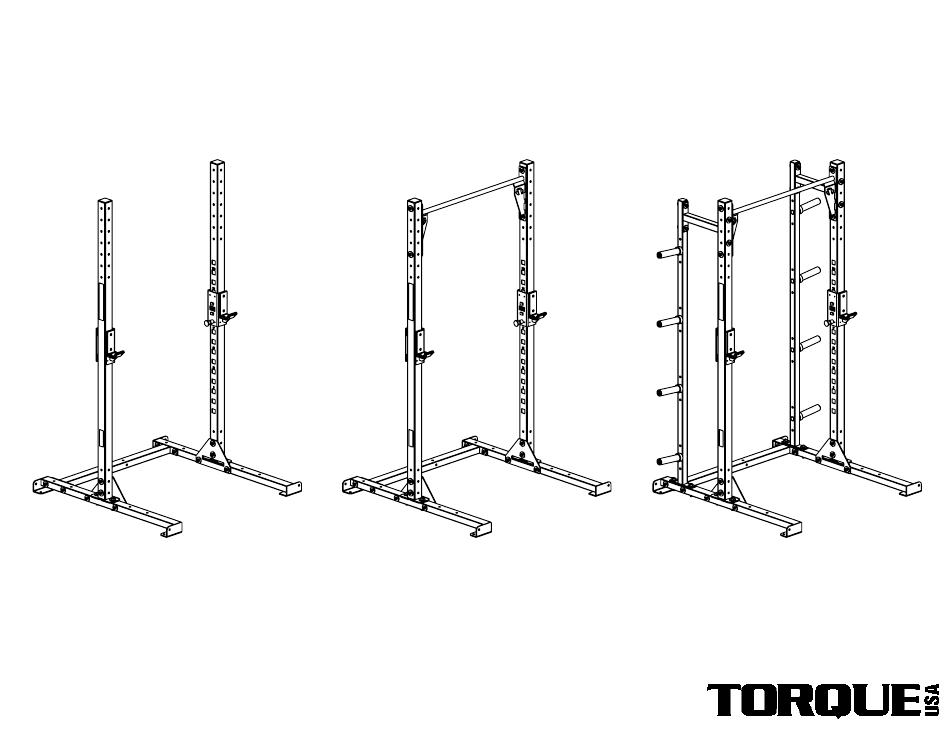

  • Page 1 X-GYM HIGH SQUAT RACK ASSEMBLY GUIDE VERSION: XGYM-HSR PART #: 5726201-B XGYM-HSR-1.0 XGYM-HSR-3.0 XGYM-HSR-5.0...

  • Page 2: Table Of Contents

    WLDMT, UPRIGHT CONNECTOR 56260PA PTD ASSY, UNIVERSAL HEAVY BAG MOUNT 54745PA PTD ASSY, LEFT BAR CATCH HBT-100LB-45.4KG HEAVY BAG, TORQUE 100LB (45.4KG) 54748PA PTD ASSY, RIGHT BAR CATCH 57412PA DOUBLE PLAY - BAR STORAGE/BATTLE ROPE ANCHOR 55481PA PTD ASSY, XDSA RIGHT...

  • Page 3: Warnings

    Children and pets must not be allowed near this machine. Supervise teenagers. This product is not a toy. • If unsure of proper use of this product, contact Torque Fitness Customer service at: 763-754-7533 (8:30 am - 5:00 pm CST). or 1-877-TORQUE5 (1-866-664- 9894). www.service@torquefitness.com Important Safety Instructions for Assembling Equipment •...

  • Page 4: General Notes

    If any items are missing, page. To correctly measure the bolts, measure connections that should be securely tightened, contact Torque Fitness Customer service at: from underneath the bolt head to the end of the while secondary connections need to be loosen 763-754-7533 (8:30 am - 5:00 pm CST).

  • Page 5: Squat Stand Assembly

    STEP 1 NOTE: LOOSELY tighten bolt connections in this step.
  • Page 6 STEP 2 NOTE: LOOSELY tighten bolt connections in this step.
  • Page 7 STEP 3 NOTE: LOOSELY tighten bolt connections in this step.
  • Page 8 STEP 4 NOTE: LOOSELY tighten bolt connections in this step.
  • Page 9 STEP 5A NOTE: THE STANDARD SINGLE CROSS IS SHOWN FOR ASSEMBLY. THE OPTIONAL NINJA CROSS, DOUBLE CROSS AND TRIPLE CROSS ASSEMBLE TO THE UNIT THE EXACT SAME WAY. OPTIONAL NINJA CROSS IF YOU PURCHASED THE OPTIONAL MULTI GRIP CROSS, PLEASE REFER TO NEXT PAGE FOR ASSEMBLY.
  • Page 10 STEP 5B (OPTIONAL MULTI GRIP CROSS) NOTE: SECURELY tighten all bolt connections in this step and previous steps.
  • Page 11 STEP 6 INSERT BAR SUPPORTS INTO DESIRED SLOTS ON UPRIGHTS. PUSH DOWN TO LOCK IN PLACE NOTE: WARNING LABEL TO REMOVE BAR SUPPORTS FROM UPRIGHTS, PULL SPRING PIN OUT TO UNLOCK. LIFT UP AND PULL OUT...

  • Page 12: Optional Attachments: Pages

    STEP 7 (OPTIONAL VERTICAL WEIGHT STORAGE) NOTE: LOOSELY tighten bolt connections in this step.
  • Page 13 STEP 8 (OPTIONAL VERTICAL WEIGHT STORAGE) NOTE: UPRIGHT CONNECTOR IS SHOWN IN ASSEMBLED POSITION (2X) NOTE: SECURELY tighten all bolt connections in this step and previous steps.
  • Page 14 STEP 9 (OPTIONAL BAR CATCHES) INSERT BAR SUPPORTS INTO DESIRED SLOTS ON UPRIGHTS. PUSH DOWN TO LOCK IN PLACE NOTE: WARNING LABEL TO REMOVE BAR SUPPORTS FROM UPRIGHTS, PULL SPRING PIN OUT TO UNLOCK. LIFT UP AND PULL OUT...
  • Page 15 STEP 10 (OPTIONAL DIP ATTACHMENT) INSERT BAR SUPPORTS INTO DESIRED SLOTS ON UPRIGHTS. PUSH DOWN TO LOCK IN PLACE NOTE: WARNING LABEL TO REMOVE BAR SUPPORTS FROM UPRIGHTS, PULL SPRING PIN OUT TO UNLOCK. LIFT UP AND PULL OUT...
  • Page 16 STEP 11 (OPTIONAL GROUND ROTATIONAL TRAINER) NOTE: SECURELY tighten all bolt connections in this step.
  • Page 17 STEP 12 (OPTIONAL BATTLE ROPE ANCHOR) NOTE: SECURELY tighten all bolt connections in this step.
  • Page 18 STEP 14A & 14B (OPTIONAL BALL TARGET) RE-USE WASHERS AND NUTS FROM PREVIOUS STEP LOOSEN AND REMOVE BOLTS, WASHERS AND NUTS. NOTE: USE NEW BOLTS NOTE: DISCARD BOLTS NOTE: SECURELY tighten all bolt connections in this step.
  • Page 19 STEP 15 (OPTIONAL UPPER BAND PEG ATTACHMENT) NOTE: SECURELY tighten all bolt connections in this step.
  • Page 20 STEP 16A & 16B (OPTIONAL ENDLESS ROPE TRAINER) RE-USE BOLTS, LOOSEN AND WASHERS AND REMOVE BOLTS, NUTS FROM WASHERS AND NUTS PREVIOUS STEP NOTE: SECURELY tighten all bolt connections in this step.
  • Page 21 STEP 16C (OPTIONAL ENDLESS ROPE TRAINER) NOTE: SECURELY tighten all bolt connections in this step.
  • Page 22 STEP 17A & 17B (OPTIONAL UNIVERSAL HEAVY BAG MOUNT) RE-USE BOLTS, LOOSEN AND WASHERS AND REMOVE BOLTS, NUTS FROM WASHERS AND NUTS PREVIOUS STEP NOTE: SECURELY tighten all bolt connections in this step.
  • Page 23 STEP 17C (OPTIONAL UNIVERSAL HEAVY BAG MOUNT)
  • Page 24 STEP 18A AND 18B (OPTIONAL DOUBLE PLAY ATTACHMENT) LOOSEN AND RE-USE BOLTS, REMOVE BOLTS, WASHERS AND WASHERS AND NUTS NUTS FROM PREVIOUS STEP NOTE: SECURELY tighten all bolt connections in this step.

  • Page 25: Maintenance

    Tighten spring pin nuts as needed. • FRAME: Wipe down frame with a damp cloth. SPRING PIN WARNING LABEL Torque Fitness 11201 Xeon Street NW Ste 101 Coon Rapids, MN USA 55448 www.torquefitness.com GENERAL WARNING LABEL Toll free: 1-877-TORQUE5 (1-866-664-9894) or 763-754-7533 (8:30 am –...
