EUROSTER Q1 Installation And Operation Manual

EUROSTER Q1E — INSTALLATION AND OPERATION MANUAL
Wired, daily room thermostat fed with 230V 50Hz voltage
MANUFACTURER: P.H.P.U. AS, Chumiętki 4, 63–840 Krobia, Poland
In order to take full advantage of the thermostat capabilities please read this installation
and operation manual carefully.
This manual is intended for 25.01.2015 version of thermostat
1.

THERMOSTAT APPLICATION

Euroster Q1E is a state-of-the-art thermostat designed for controlling temperature in living
and utility rooms within temperature range of: 5°C...45°C. It is used to control the operation
of CH boiler and other components of a heating system. It controls electrical equipment, floor
heating and air-conditioning systems. The thermostat is equipped with a wide range of useful
functions, innovative daily programming and temperature control with an accuracy of 0.2°C.
It enables easy control of ambient and floor temperature. If needed, Euroster Q1E may
control a heating device in the following three options of temperature measurement:
• ambient temperature measurement with only the internal sensor used,
• floor temperature measurement with only the floor sensor connected,
• ambient temperature measurement with simultaneous floor temperature limitation with
both temperature sensors connected.
2.

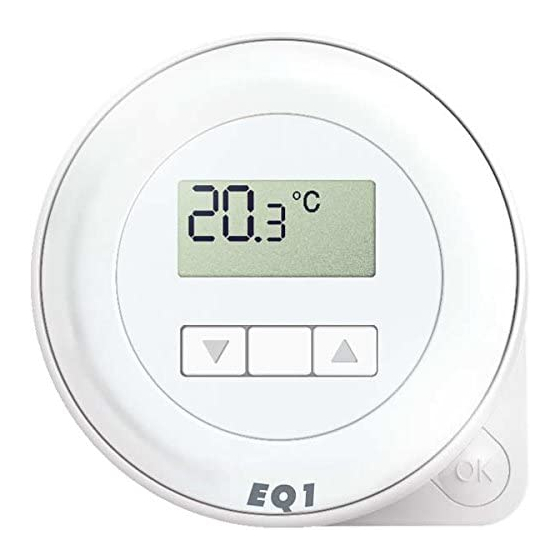

VISIBLE ELEMENTS

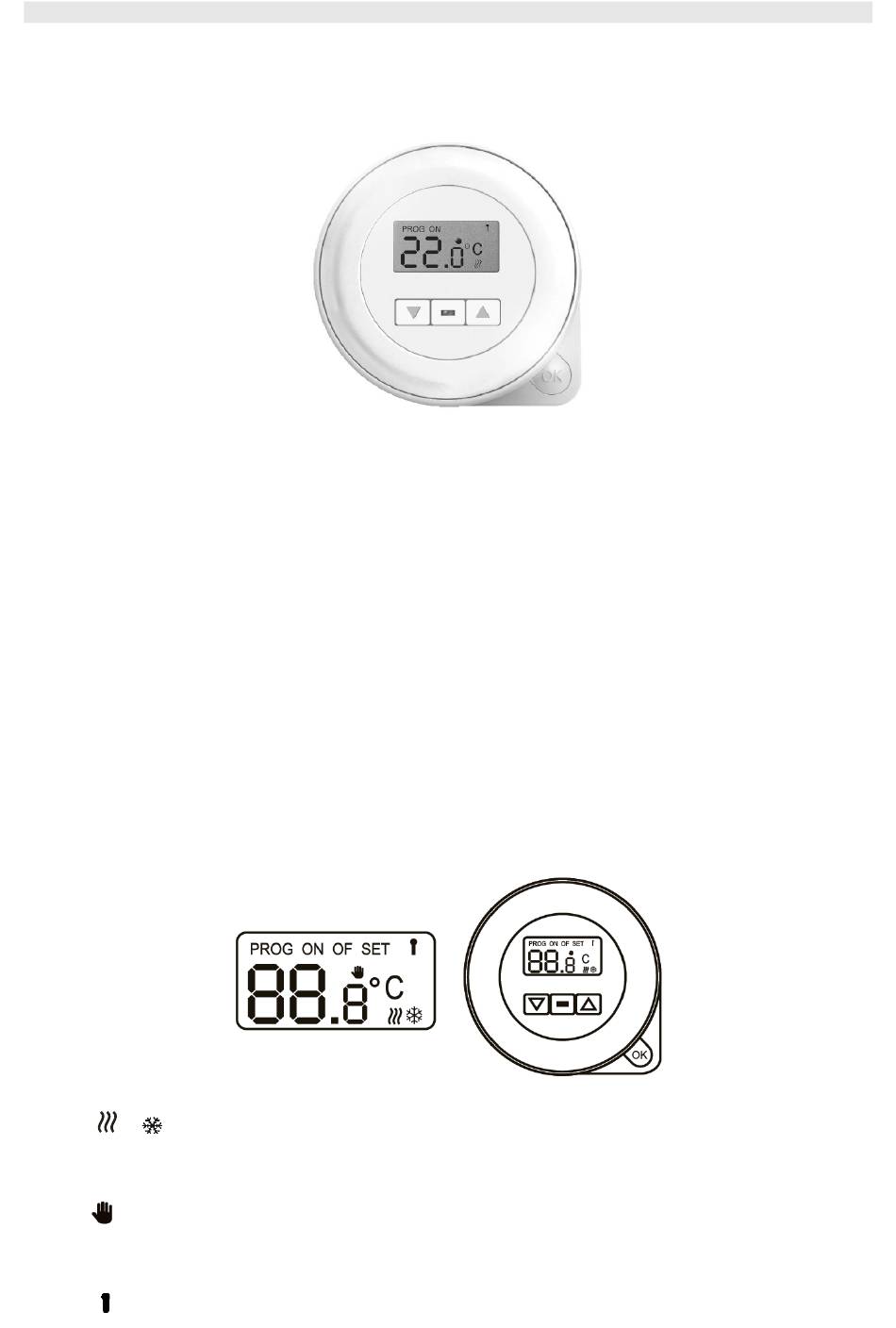

2.1. Displayed signs and icons
• 21.3°C — current temperature measured by a temperature sensor
• " " " ", red LED — turning an output on, in a heating or cooling mode adequately
• PROG ON — the programming mode is active
• PROG OFF — quit the programming mode
• PROG — operation with a stored program
• — operation with a temporary temperature setting
• SET — setting mode active
• OFF — turning the thermostat off

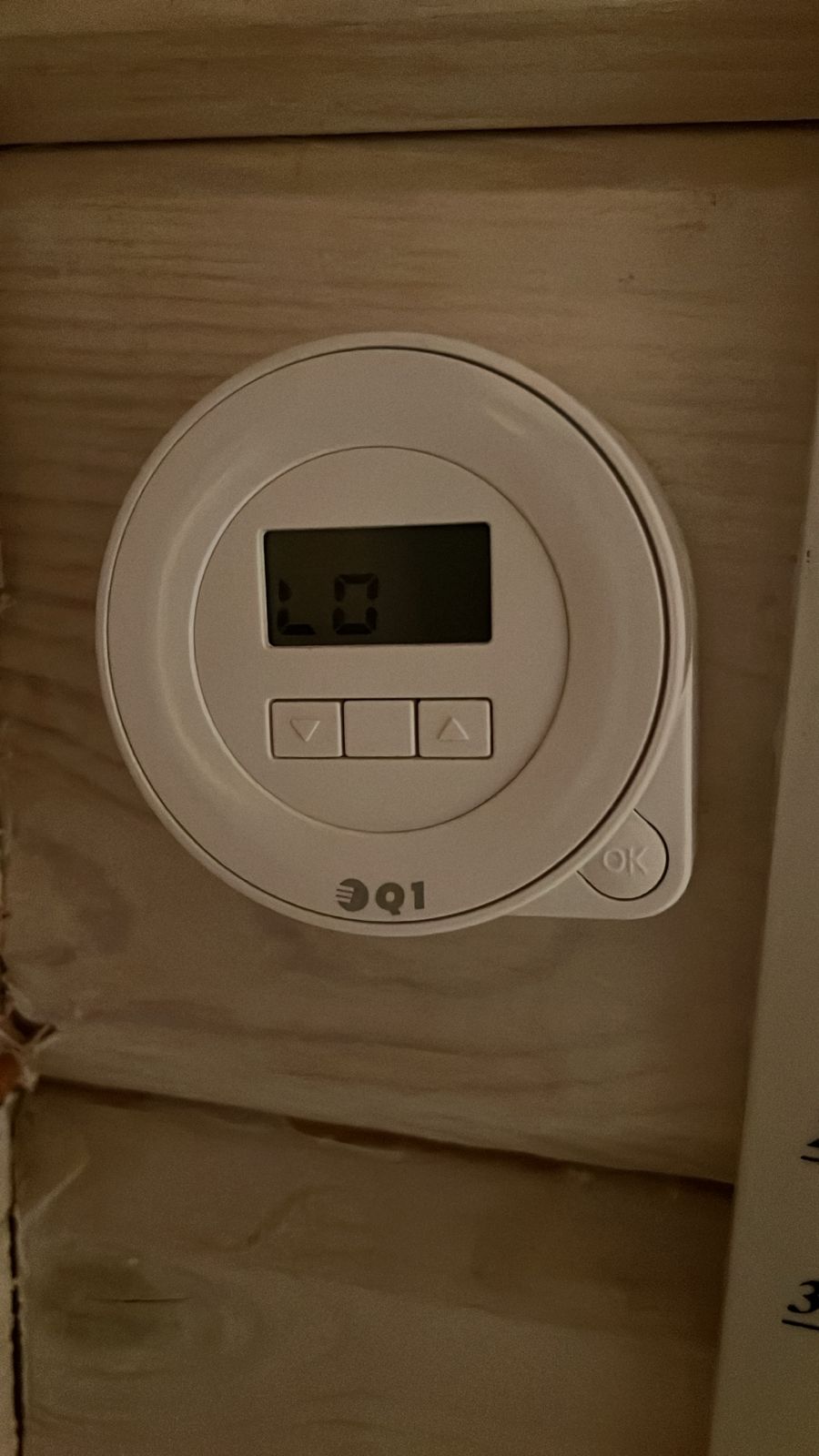

• LO — discharged batteries indication
• " " — floor sensor connection
