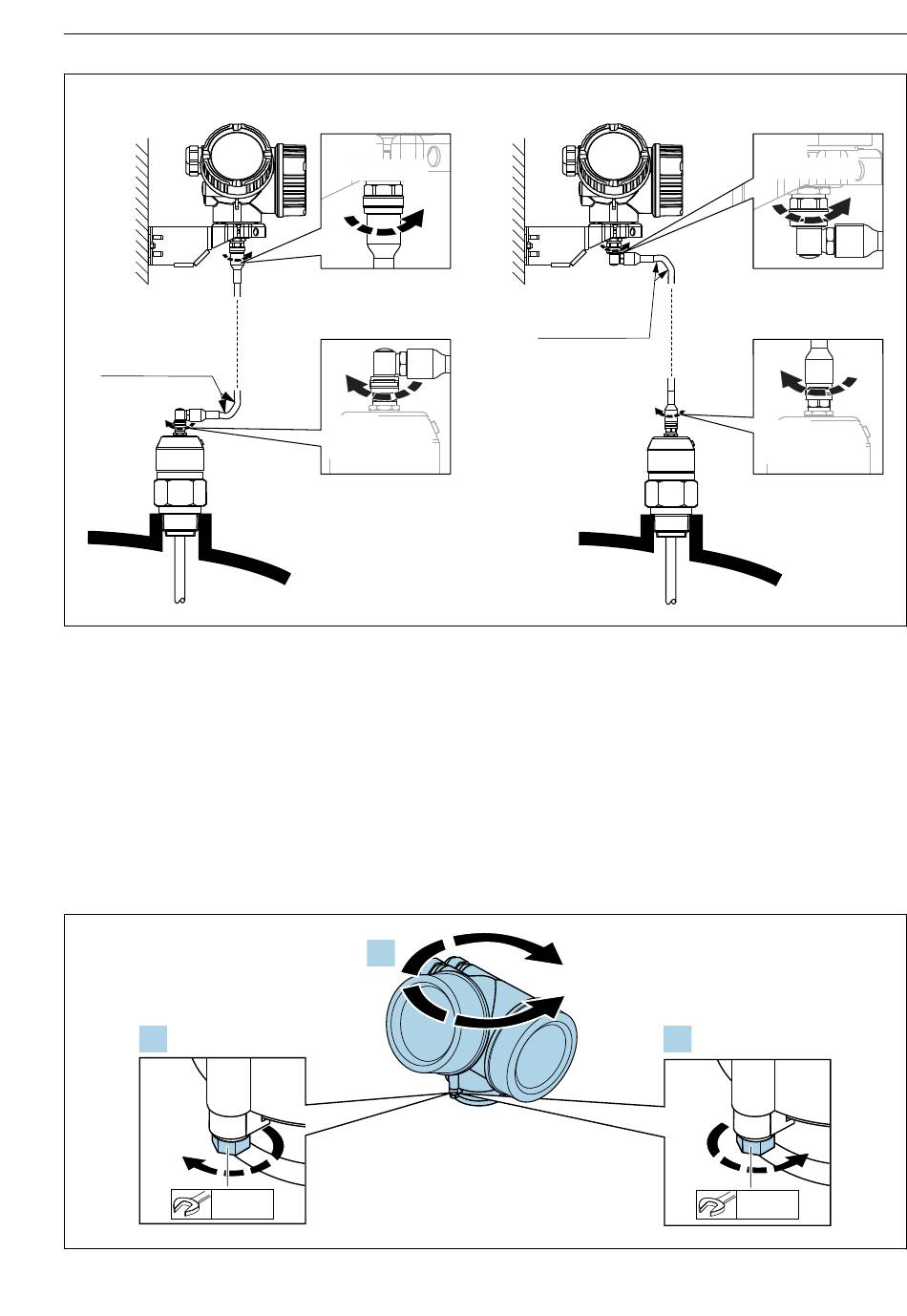

 5 Connecting the cable. There are the following possibilities:
A Angled plug at the probe
B Angled plug at the electronics housing
C Length of the remote cable as ordered
6.2.5 Turning the transmitter housing
To provide easier access to the connection compartment or display module, the transmitter
housing can be turned:
1.
8 mm
Endress+Hauser
6 Nm
(4.42 lbf ft)
C
6 Nm
(4.42 lbf ft)
2.
B
r = 100 (4)
C
min
max. 350°
3.
Mounting
6 Nm
(4.42 lbf ft)
6 Nm
(4.42 lbf ft)
A0014794
8 mm
A0032242
