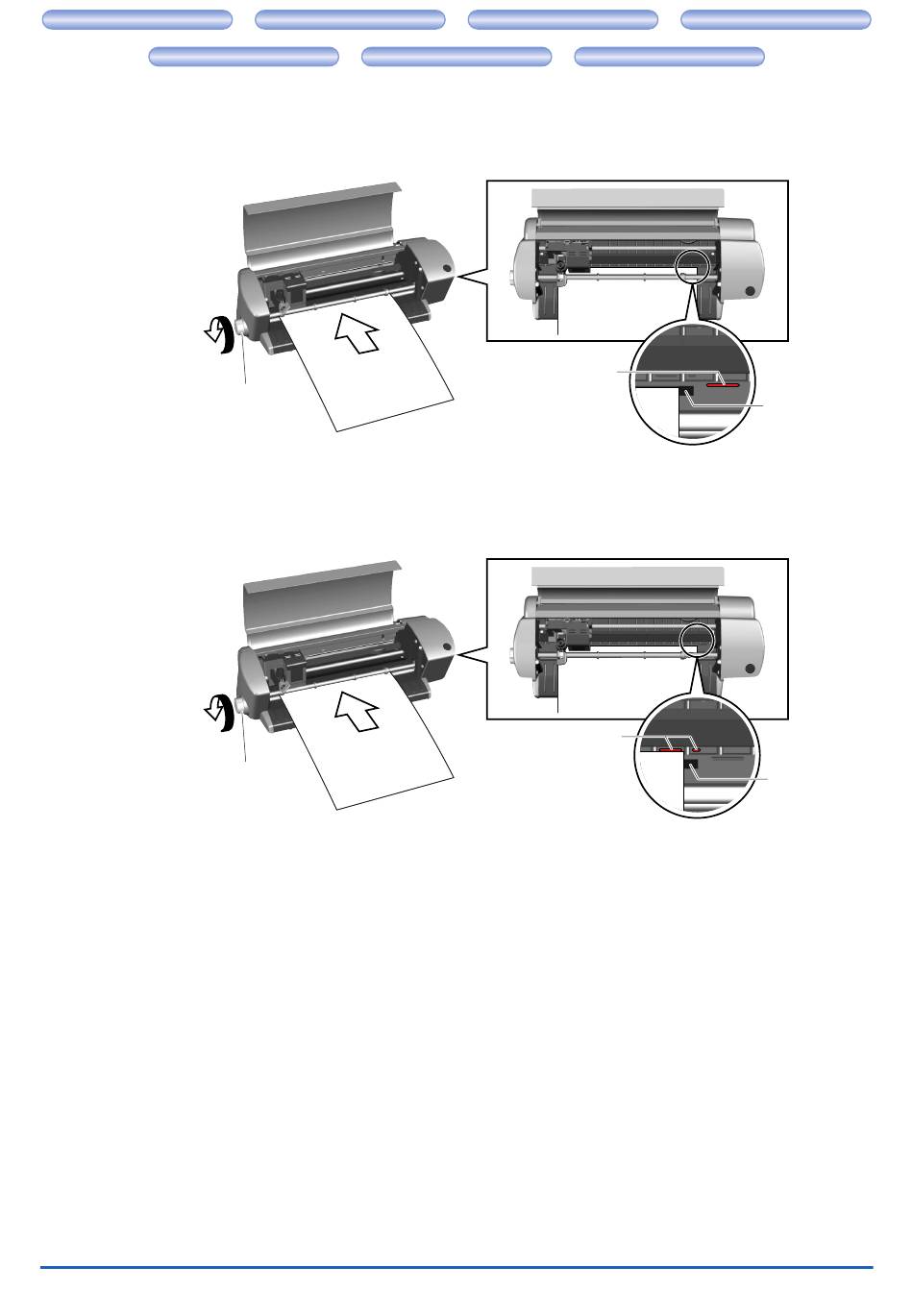

(3) Turn the feed knob in the direction toward the rear of the Craft ROBO to feed the sheet until its
top edge is aligned with the rear edge of the cutting mat, or with the indented guideline located
next to the cutting mat.
If the top edge of the sheet curls up and catches on the Craft ROBO, turn the feed knob in the
direction toward the rear of the Craft ROBO to align the top edge of the sheet with the indented
guidelines located behind the cutting mat. Please note, however, that the cutting area will be
reduced by 5 mm in the media feed direction.
