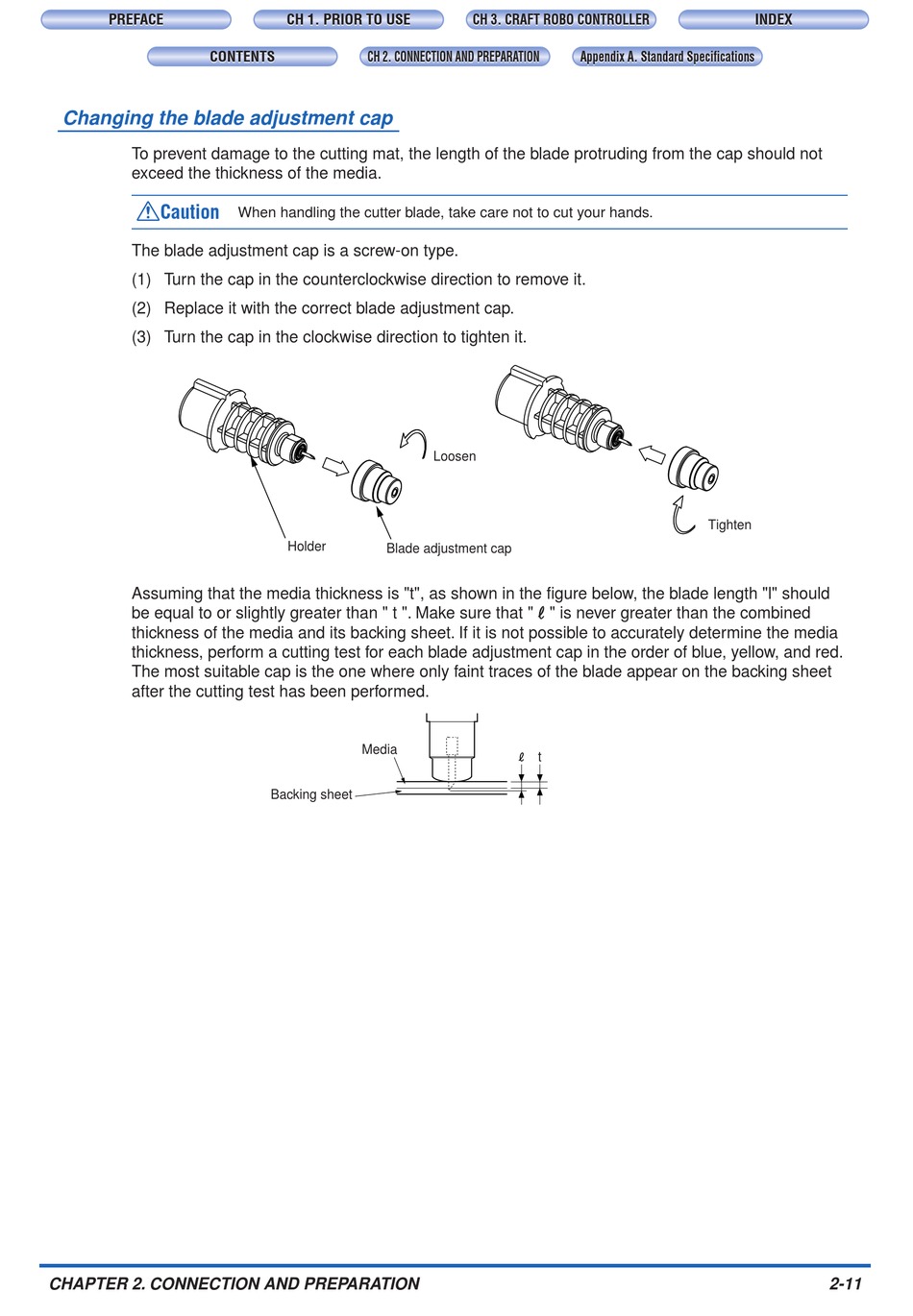

Changing the blade adjustment cap
To prevent damage to the cutting mat, the length of the blade protruding from the cap should not
exceed the thickness of the media.
Caution
The blade adjustment cap is a screw-on type.
(1) Turn the cap in the counterclockwise direction to remove it.
(2) Replace it with the correct blade adjustment cap.
(3) Turn the cap in the clockwise direction to tighten it.
Assuming that the media thickness is "t", as shown in the figure below, the blade length "l" should
be equal to or slightly greater than " t ". Make sure that "r r r r r " is never greater than the combined
thickness of the media and its backing sheet. If it is not possible to accurately determine the media
thickness, perform a cutting test for each blade adjustment cap in the order of blue, yellow, and red.
The most suitable cap is the one where only faint traces of the blade appear on the backing sheet
after the cutting test has been performed.
CHAPTER 2. CONNECTION AND PREPARATION
CH 1. PRIOR TO USE
CH 1. PRIOR TO USE
CH 2. CONNECTION AND PREPARATION
CH 2. CONNECTION AND PREPARATION
When handling the cutter blade, take care not to cut your hands.
Holder
Blade adjustment cap
Media
Backing sheet
CH 3. CRAFT ROBO CONTROLLER
CH 3. CRAFT ROBO CONTROLLER
Appendix A. Standard Specifications
Appendix A. Standard Specifications
Loosen
t
INDEX
INDEX
Tighten
