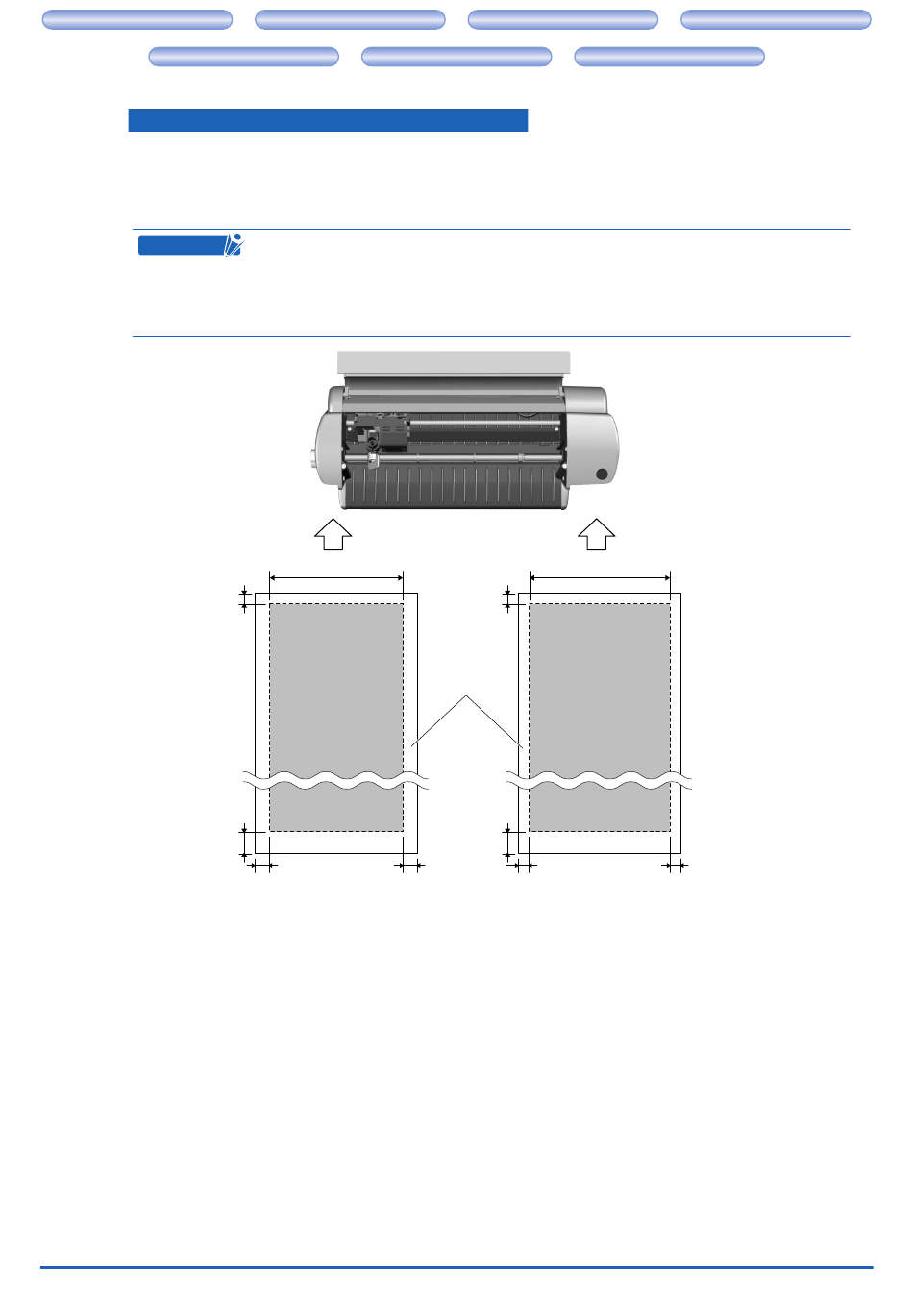

If the media length is between 297 and 1000 mm
Standard mode: The width of the allowable cutting area is 190 mm.
Expanded mode: The width of the allowable cutting area is 200 mm.
If registration marks are used, the allowable width is 190 mm.
CHECKPOINT
5mm
20mm
2-6
CH 1. PRIOR TO USE
CH 1. PRIOR TO USE
CH 2. CONNECTION AND PREPARATION
CH 2. CONNECTION AND PREPARATION
• To change the mode from Standard to Expanded or vice versa, click "Properties" in the
"Print" window and then select the desired mode in "Margin Settings" on the "Basic
Settings" tab. The default setting is "Standard" mode.
• Align the left and right edges with the vertical guidelines, making sure that the sheet is
straight.
190mm
Allowable Allowable
cutting area cutting area
10mm 10mm
Standard mode
CH 3. CRAFT ROBO CONTROLLER
CH 3. CRAFT ROBO CONTROLLER
Appendix A. Standard Specifications
Appendix A. Standard Specifications
200mm
5mm
Media
Allowable Allowable
cutting area cutting area
20mm
5mm
Expanded mode
