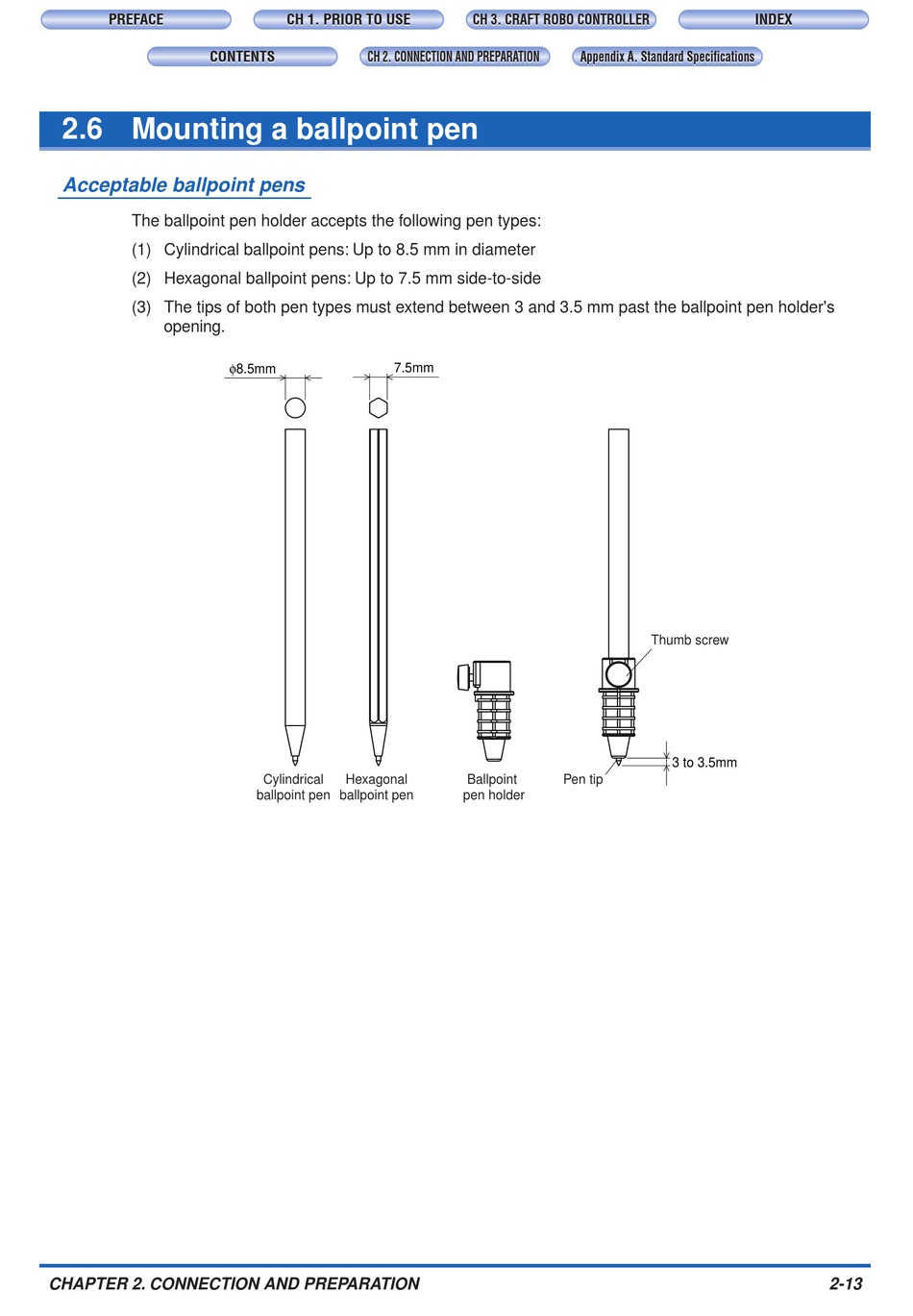

2.6 Mounting a ballpoint pen
Acceptable ballpoint pens
The ballpoint pen holder accepts the following pen types:
(1) Cylindrical ballpoint pens: Up to 8.5 mm in diameter
(2) Hexagonal ballpoint pens: Up to 7.5 mm side-to-side
(3) The tips of both pen types must extend between 3 and 3.5 mm past the ballpoint pen holder's
opening.
