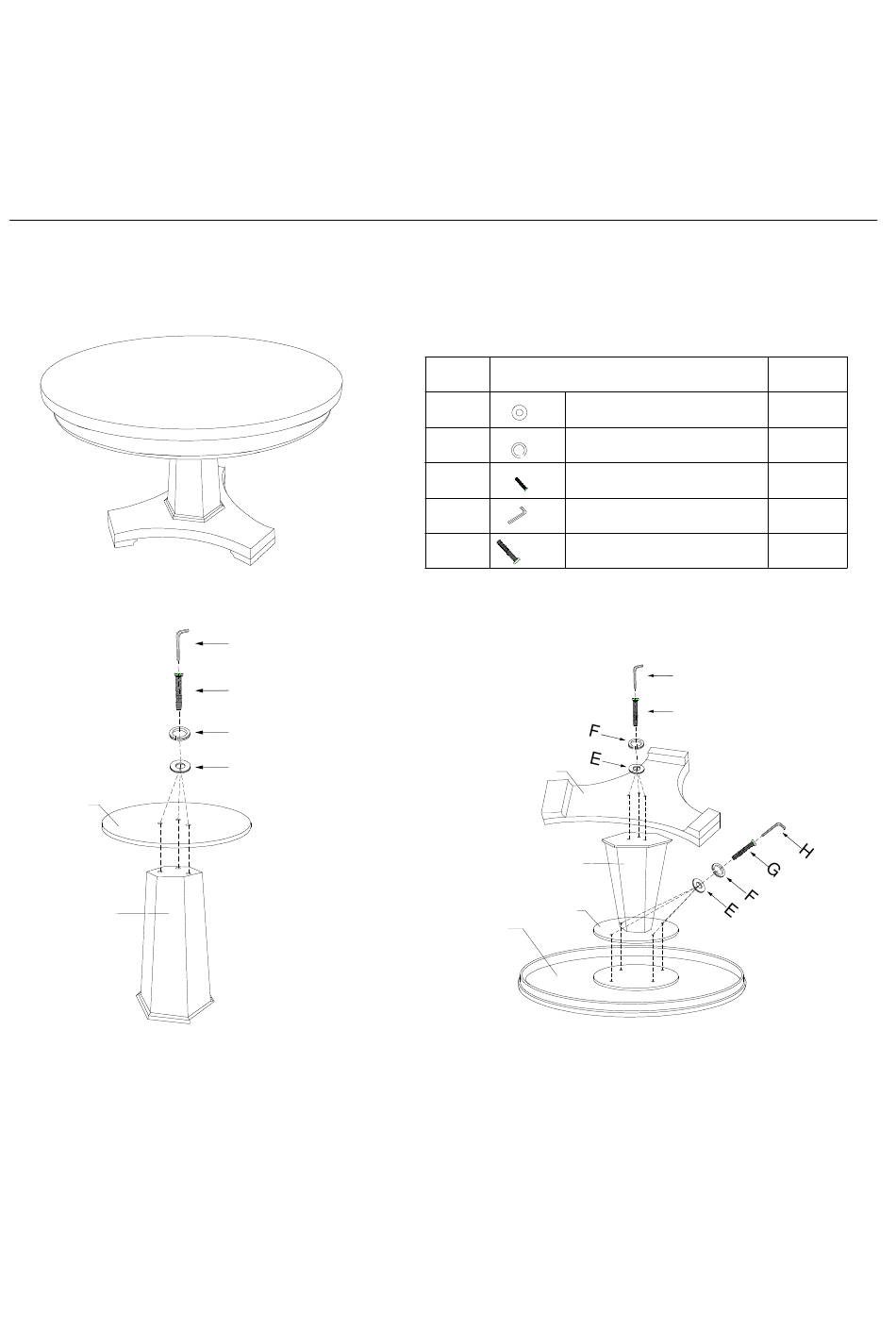

Please make sure you have all the parts indicated below prior to assembly.
This unit is heavy and can best be assembled with the help of two or more people.
B
C
Diagram 1
Assembly Steps:
1. Attach the mounting bridge (B) to the center post (C) using 3 flat washers (E), 3 lock washers
(F) and 3 bolts (G). Tighten all bolts with the allen wrench (H).(see Diagram 1)
2 .Place the table top (A) upside down on a soft surface to prevent from the scratching of the top.
ASSEMBLY INSTRUCTION
Item#: 3005-75001 Pedestal Base-Ebony
3005-75002 60in Dining Top-Copper
H
G
F
E
Hardware List
NO
E
Flat washer
F
Lock washer
G
35mm bolt
H
Allen Wrench
I
65mm bolt
D
C
B
A
Diagram 2
1/2
Q'ty
10
10
7
1
3
H
I
Advertisement
Table of Contents
Related Manuals for Hooker Furniture 3005-75001
Summary of Contents for Hooker Furniture 3005-75001
- Page 1 ASSEMBLY INSTRUCTION Item#: 3005-75001 Pedestal Base-Ebony 3005-75002 60in Dining Top-Copper Please make sure you have all the parts indicated below prior to assembly. This unit is heavy and can best be assembled with the help of two or more people.
- Page 2 3. Attach the mounting bridge (B) to the table top (A) using 4 flat washers (E), 4 lock washers (F) and 4 bolts (G). Tighten all bolts with allen wrench (H). 4. Attach the base (D) to the center post (C) using 3 flat washers (E), 3 lock washers (F) and 3 bolts (I).
