Caution: Please make sure you have all parts indicated below prior to assembly.
This unit is heavy and can best be assembled with the help of two or more persons.

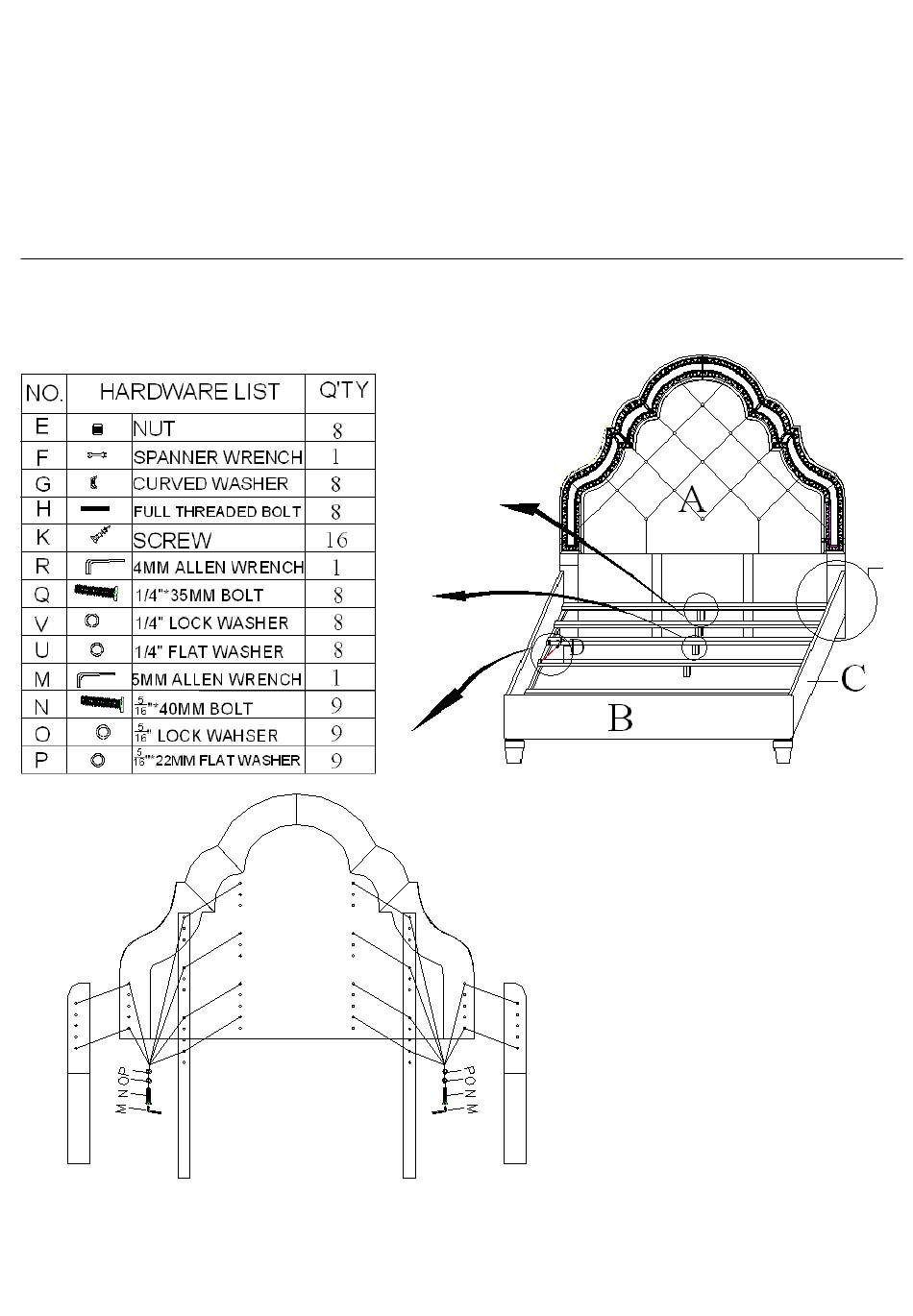

D
iagram 1
ASSEMBLY INSTRUCTION

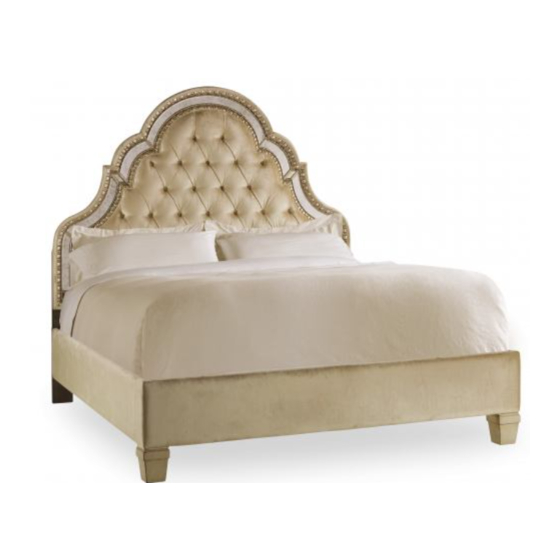

ITEM# 3023-90867 6/6 Tufted Headboard
3023-90868 6/6 Tufted Footboard
3023-90869 6/6 Tufted Rails
3023-90863 6/0 Tufted Rails
T
See Diagram 3
See Diagram 6
See Diagram 4
1/4
See Diagram 2
Advertisement
Table of Contents
Related Manuals for Hooker Furniture 3023-90867
Summary of Contents for Hooker Furniture 3023-90867
- Page 1 ASSEMBLY INSTRUCTION ITEM# 3023-90867 6/6 Tufted Headboard 3023-90868 6/6 Tufted Footboard 3023-90869 6/6 Tufted Rails 3023-90863 6/0 Tufted Rails Caution: Please make sure you have all parts indicated below prior to assembly. This unit is heavy and can best be assembled with the help of two or more persons.
- Page 2 There are 2 hardware bags. One is to assemble the K/D posts to HB panel which is attached at the back of HB. One is to assemble side rails to HB&FB which is in the box of side rails. Please note. Assembly steps: 1.
- Page 3 Diagram 3 4. Attach slats (D) to side rails (C), align pre-drilled holes on the slat to holes on the cleat of side rail (C), using screws (K) to tighten both. (See diagram 4) Diagram 4 Note: You can change the height of slat by adjusting the height of cleat on side rail as shown in diagram 5, remove bolt (I), lock washer (W) and flat washer (J) from the cleat by turning the bolt (I) with allen wrench (M) in anti-clockwise direction, adjust the cleat to a desired position, and then secure lock washer, flat washer, bolt in a clockwise direction by turning with allen wrench.
- Page 4 You can adjust the height of center supports (L) as shown in Diagram 6 to meet your need by the following steps. 1. Unscrew bolts on center supports (L) with allen wrench (R). 2. Adjust the height of center supports, align the holes on 2pcs of woods and tighten them together with 2 bolts(Q), 2 lock washers (V) and 2 flat washers（U）by turning with allen wrench(R) in a clockwise direction.
